EGR CANOPY REMOTE LOCKING KIT - Canopy Wiring and Latch Preparation; Installing Rubber Tube and Wiring; Fitting Latch Plate and Cover Removal

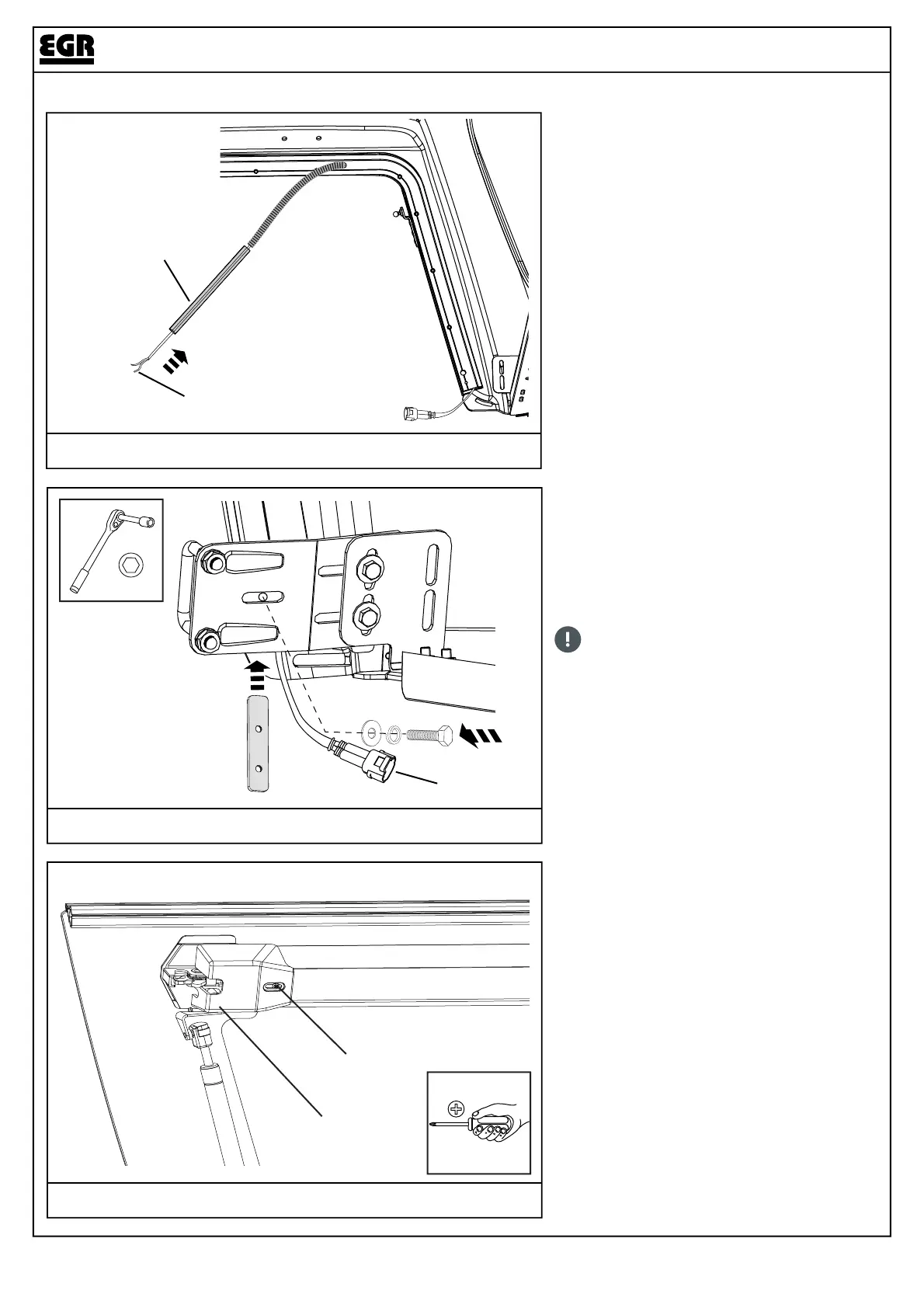

Diagram: 7 - FEED RUBBER TUBE
7.
Diagram: 8 - SECURE LATCH PLATE
8.
Page 5 of 1021/03/17
Diagram: 9 - REMOVE LATCH COVER
9.
CP0253
Feed the rubber tube into the window harness
LOOM0127B as shown.
Fit the threaded plate inside the window frame
and secure the striker bracket with previously
removed hex head bolt, spring washer and flat
washer.
Remove the LHS latch cover by removing the
Phillips head screw. Retain all hardware.
LOOM0127B
LOOM0127B
RUBBER TUBE
SCREW
COVER
Important: Avoid pinching the wiring under
the threaded plate.
REMOTE LOCKING KIT FOR CANOPY
