EGR CANOPY REMOTE LOCKING KIT - Lock Mechanism Reassembly and Final Connections; Reassembling Lock Mechanism Components; Connecting Window Harness to Vehicle Harness

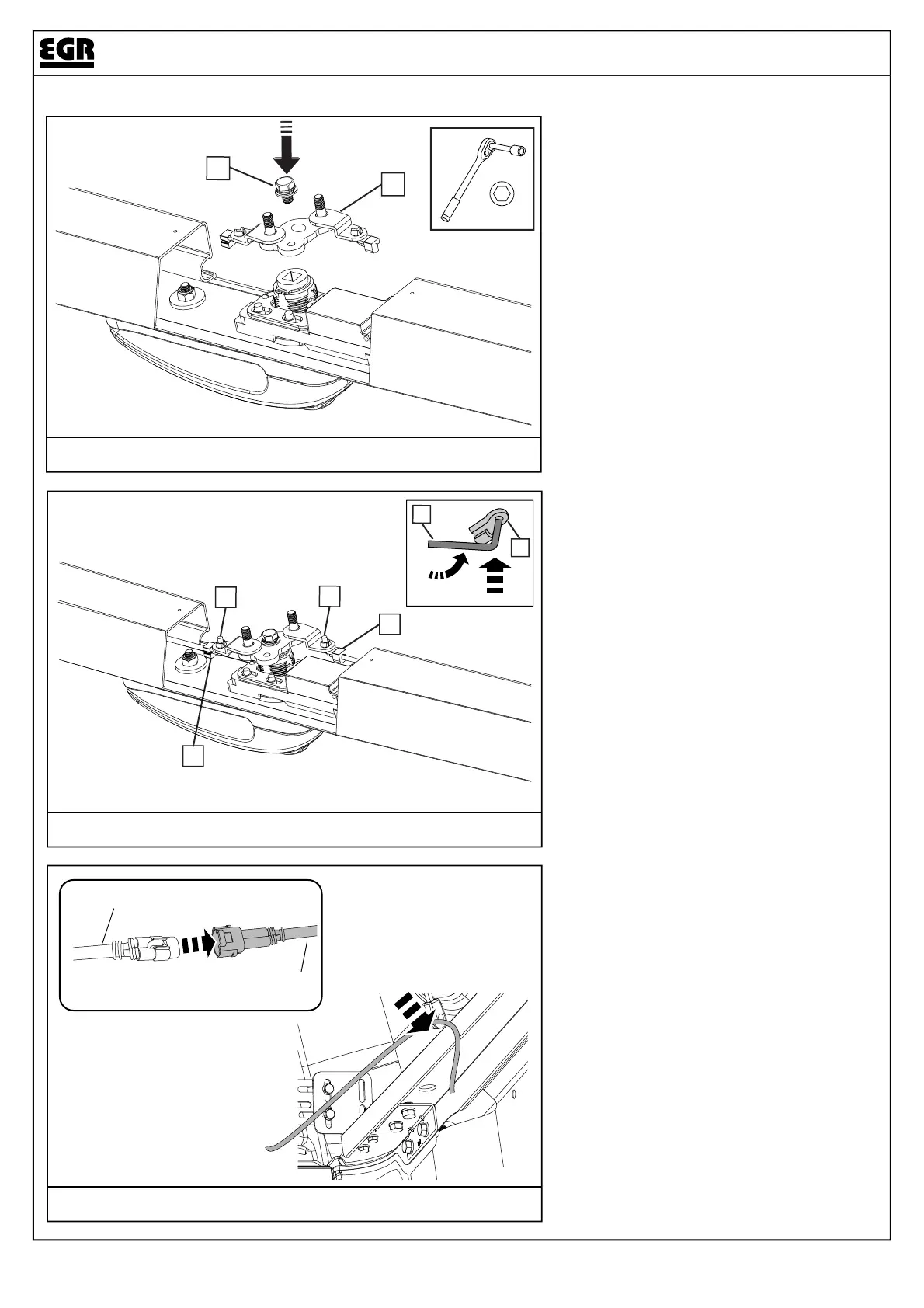

Diagram: 19 - FIT CAM PLATE
19.
Diagram: 20 - CLIP ON PULL RODS
20.
Page 9 of 1021/03/17
Diagram: 21 - CONNECT HARNESS
21.
CP0253
Fit the cam plate onto the lock and secure
with the cam plate bolt. Torque to 7Nm.
Clip both pull rods into the retainer clips
as shown.
Connect the window harness to the vehicle harness.
A
B
1
A
A
A
B
B
B
LOOM127A
LOOM127B
REMOTE LOCKING KIT FOR CANOPY
