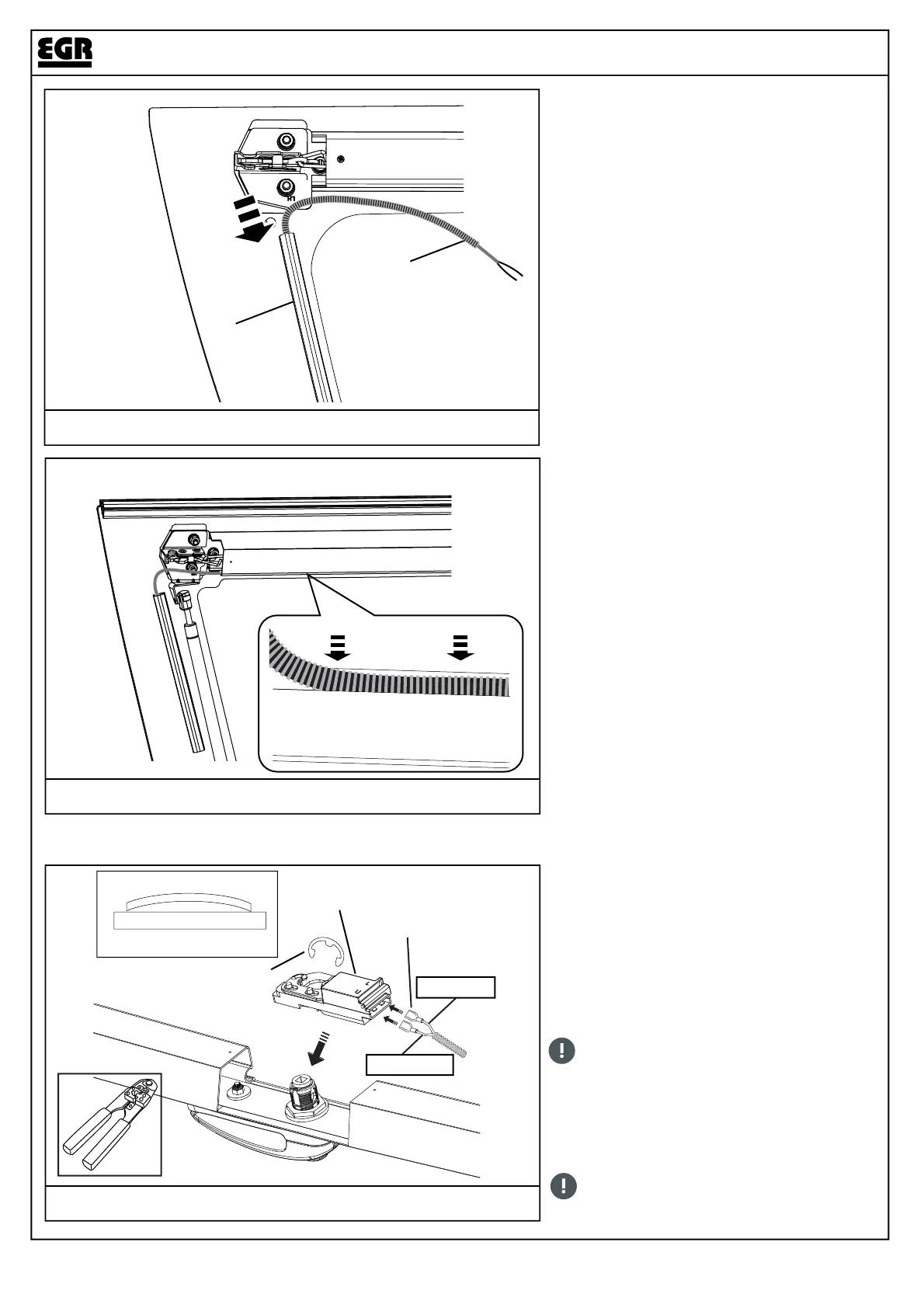

Diagram: 16 - FIT PLASTIC TUBE
16.
Diagram: 17 - FIT PLASTIC TUBE
17.
Page 8 of 1021/03/17
Diagram: 18 - FIT RCL UNIT
18.
CP0253
Important: Check the functioning of the
actuator when lock and unlocked is
pressed on the car key. If functioning is
opposite then swap wires around.
Feed the plastic tube into the rubber tube
approximately 15mm inside.
Push the plastic tube into the groove in the
aluminium extrusion as shown.
Fit the two female spade connectors to the
wires using a crimping tool.
Connect the canopy wiring terminals to the
RCL unit. Note that brown wire connects to the
terminal marked “L” on the RCL and orange
wire to the terminal “U”.
Important: The metal clip has a bow
shape, orient the clip in the bow up
position as shown in picture A. You may
need a small hammer to tap it into position.
Fit the RCL and secure with the metal clip onto
the handle.
RUBBER
TUBE
FEMALE
CONNECTOR
RCL
UNIT
METAL
CLIP
LOOM0127B
BROWN
RCL
CLIP
PICTURE A
ORANGE
REMOTE LOCKING KIT FOR CANOPY
