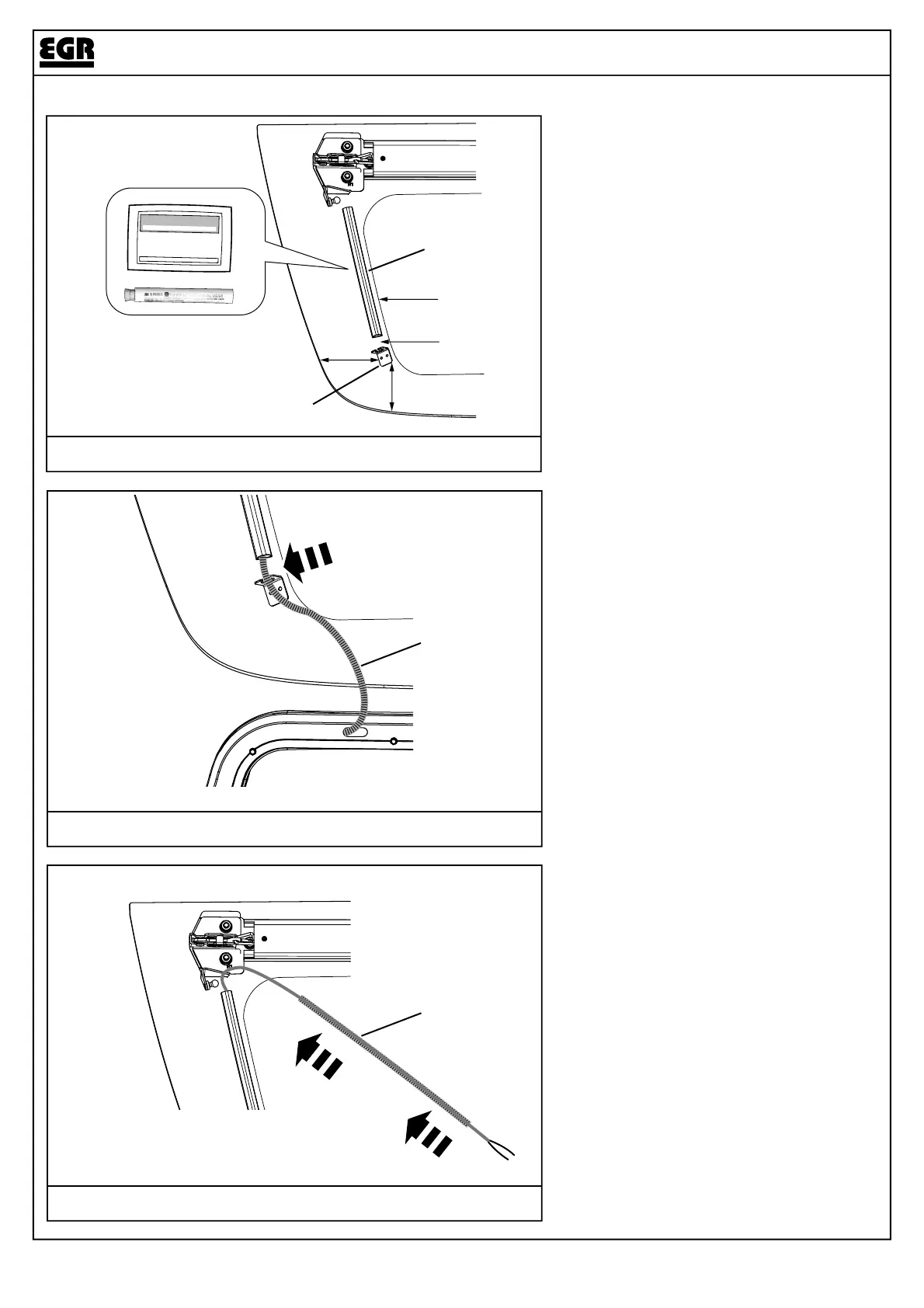

Diagram: 13 - APPLY RUBBER TUBE
13.
Diagram: 14 - FIT PLASTIC TUBE
14.
Page 7 of 1021/03/17
Diagram: 15 - FIT PLASTIC TUBE
15.
CP0253
On the RHS inside the rear window glass clean the
area where rubber tube and wiring clip will be
attached, with an alcohol wipe and prime with the
primer stick. Allow to dry.
Feed the wiring into the clip and push approximately
15mm of the plastic tube into the rubber tube to
secure the wiring.
Feed the wiring harness into the plastic tube
as shown.
Place the wiring clip approximately 10mm from the
edge of the blackout on the glass, 100mm from top
edge of the glass and 90mm from the side. Peel the
liner and press to the glass.
Peel the liner from the rubber tube and apply the
tube to the glass as shown. Approximately 15mm
from the clip and 15mm from the edge of the
blackout.
90mm
100mm
WIRING NOT SHOWN
FOR CLARITY
15mm
15mm
RUBBER
TUBE
(LOOM0127B)
WIRING CLIP
LOOM0127B
PLASTIC
TUBE
AUTOMOTIVE
SURFACE CLEANER
IMPREGNATED WITH 70% ISOPROPYL ALCOHOL
For use in cleaning painted metal,
glass and other vehicle surfaces.
For external use only.
Dispose of properly after use.
REMOTE LOCKING KIT FOR CANOPY
