EGR CANOPY REMOTE LOCKING KIT - Canopy Lock Mechanism Disassembly; Removing Lock Covers and Cam Plate; Unclipping Pull Rods

Diagram: 10 - REMOVE LOCK COVER
10.
Diagram: 11 - UNCLIP PULL RODS
11.
Page 6 of 1021/03/17
Diagram: 12 - REMOVE CAM PLATE
12.
CP0253

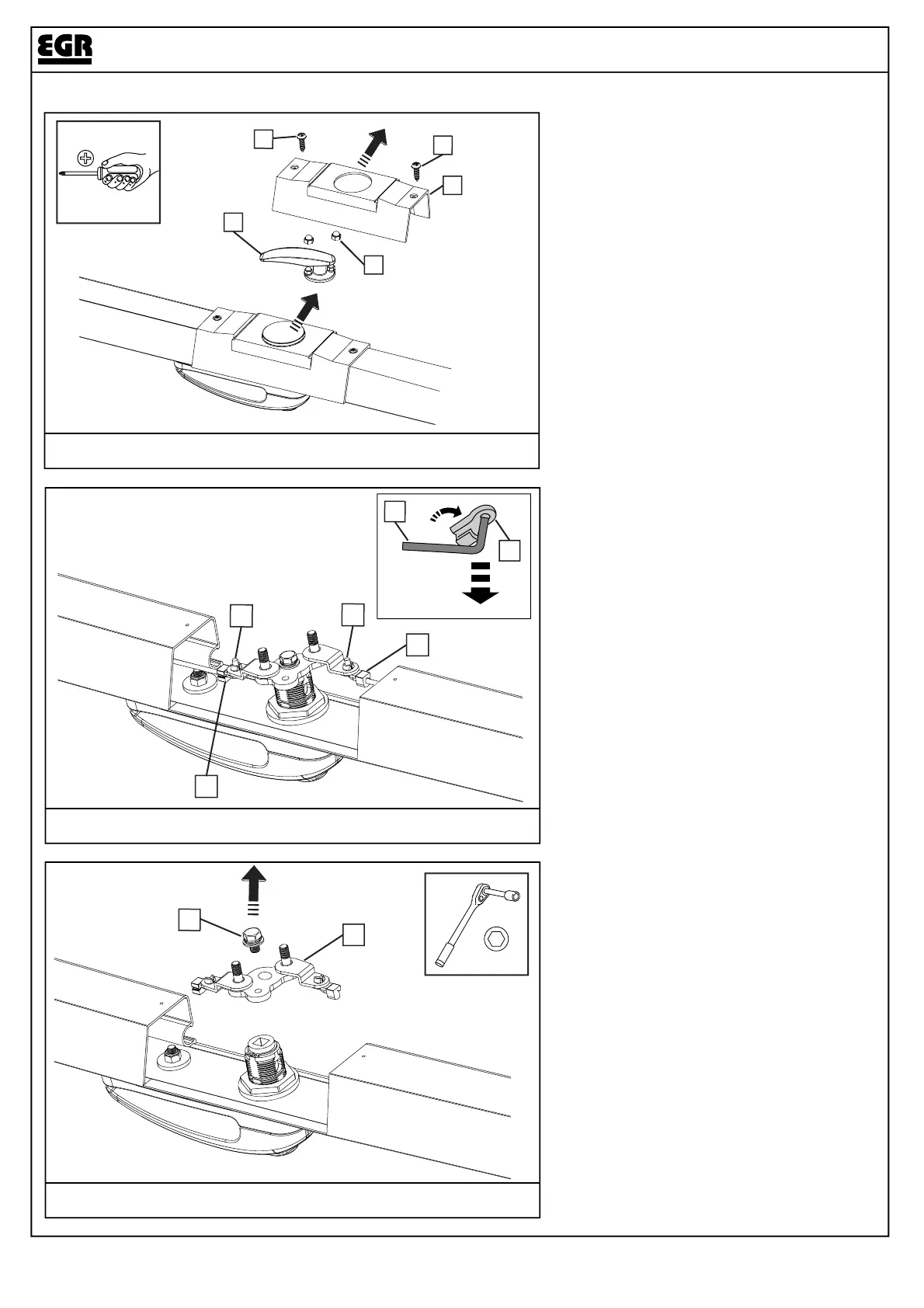

Remove two screws (A) holding the lock
cover (B).
Retain both handle and nuts.
Remove internal door handle (C) by removing
two dome nuts (D).
Unclip both pull rods (A) from the retainer
clips (B).
Remove the bolt (A) holding the cam plate (B)
and retain for re-installation.
A
A
D
C
B
A
B
A
B
A
A
B
B
REMOTE LOCKING KIT FOR CANOPY
