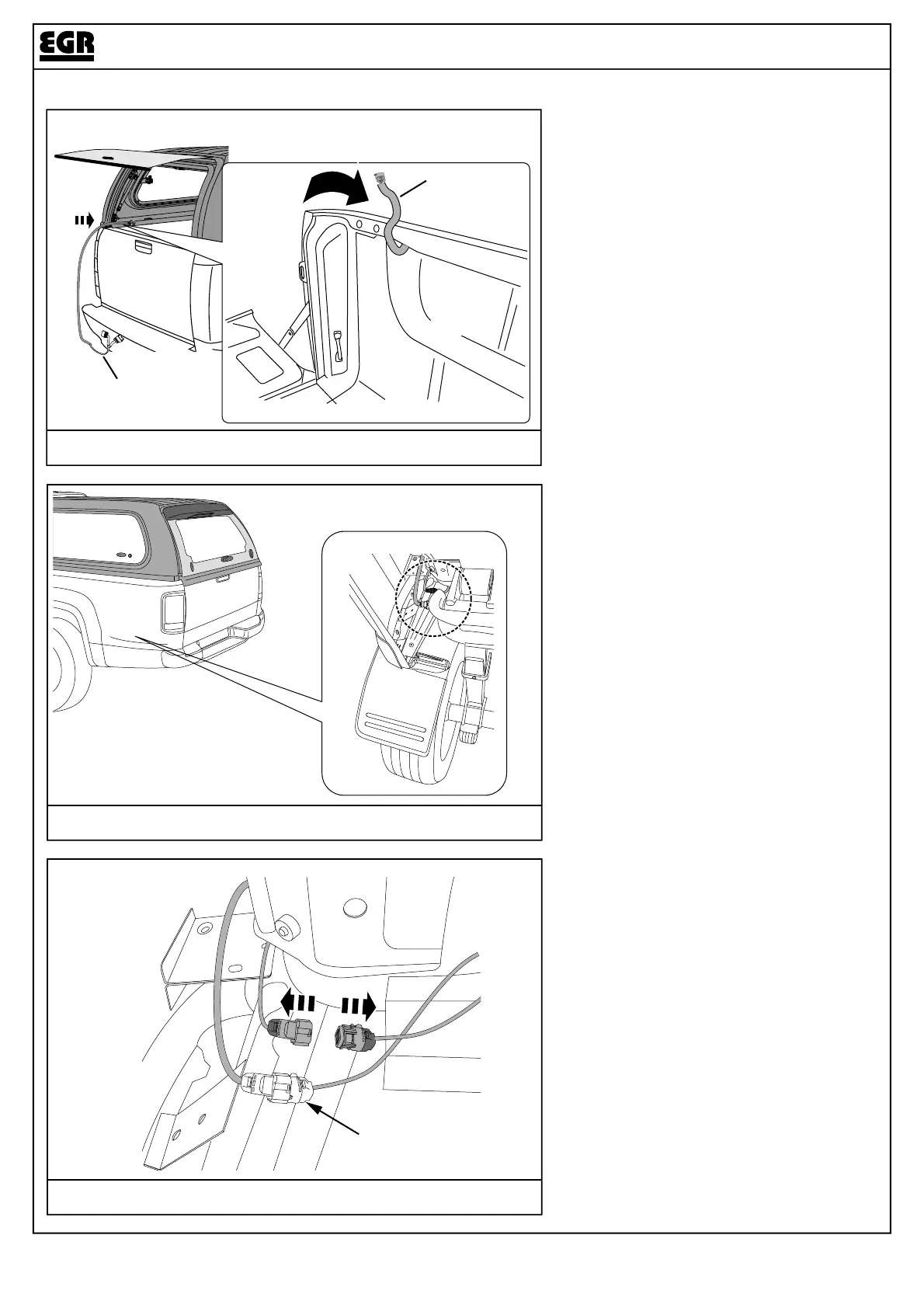

Diagram: 1 - FEED VEHICLE HARNESS
1.
Diagram: 2 - LOCATE CONNECTORS
2.
Page 3 of 1021/03/17
Diagram: 3 - DISCONNECT CONNECTORS
3.
CP0253
Locate connectors behind rear LHS wheel.
Open the tailgate.
Feed the Vehicle Harness (LOOM0127A) through
the cavity in the rear LHS of the tub as shown.
Disconnect the existing vehicle harness
connectors under the vehicle as shown.
Run the Vehicle Harness down to the chassis rail.
LOOM127A
LOOM127A
ADDITIONAL PLUG
6 CYLINDER ONLY
REMOTE LOCKING KIT FOR CANOPY
To Next Page
