10
GB-063C_f.615

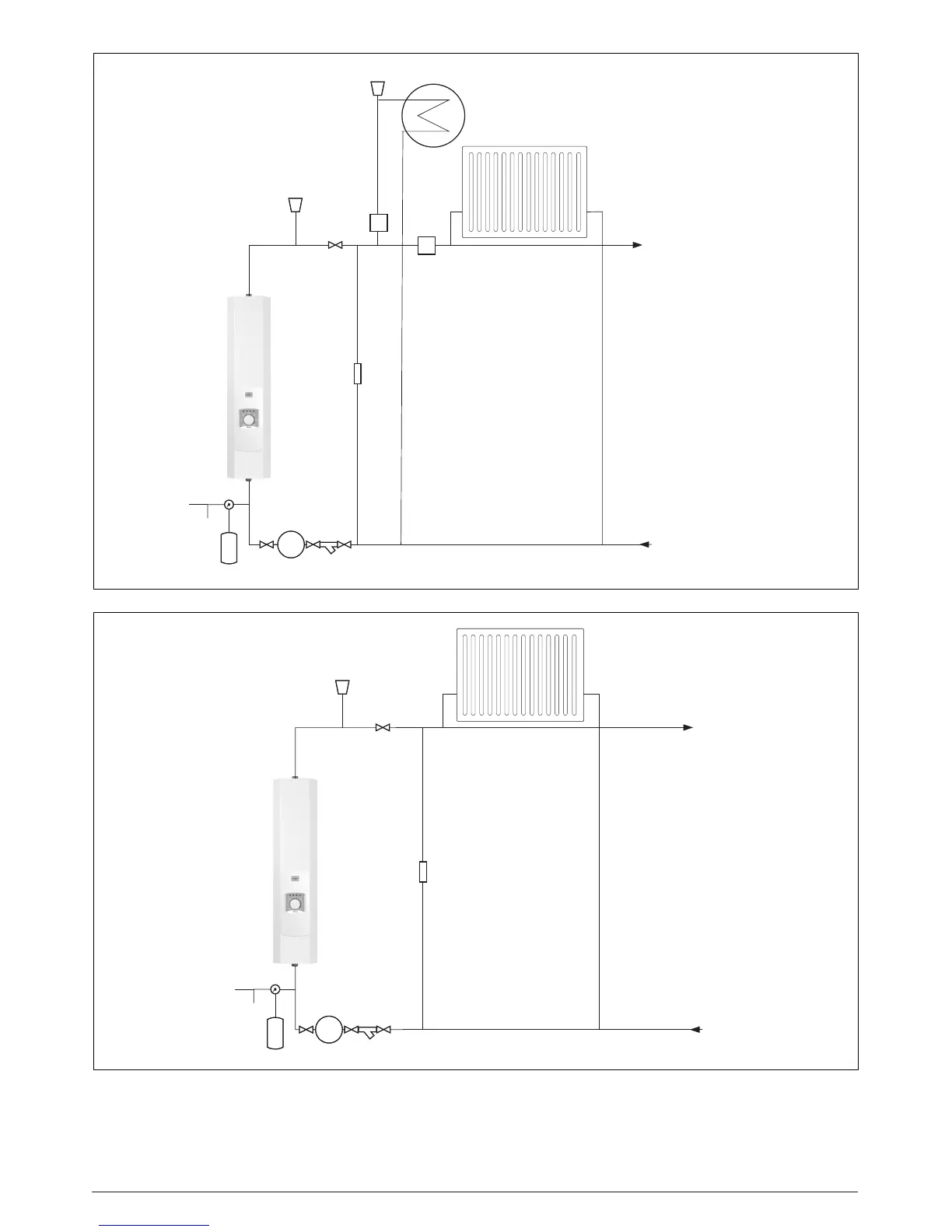

Figure 2
aav
Expansion Vessel
Pump
Magnetic
Filter
Gauge
PRV
Flow
Return
Filling
Loop
Auto Bypass
aav
HW
Cylinder
Zone
valve
Zone
valve
Pressure
aav
Expansion Vessel
Pump
Magnetic Filter
Gauge
PRV
Flow
Return
Filling
Loop
Auto Bypass
Pressure
Figure 1
!
The boilers may also be congured to run multi zone heating systems or under oor heating
circuits if required.
