11

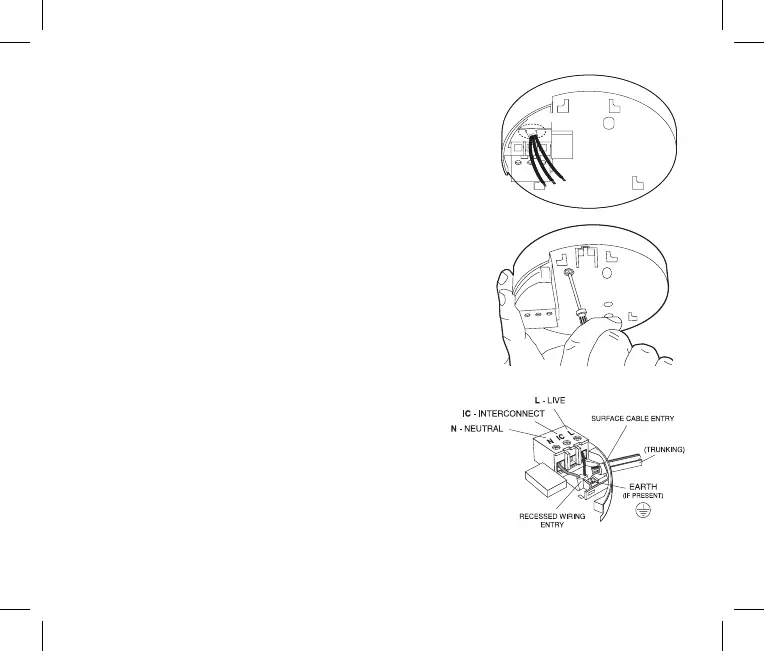

To prevent air draughts affecting smoke or heat
entering the alarm it is important to seal the area
around the hole in the ceiling with foam or silicon
rubber.
Screw the base to the ceiling using a single screw
for now. The second screw should be inserted
at the end of this procedure to secure the base
permanently.
Connect the wiring to the terminal block as shown
here.
L: Live - connect to the house wires coloured
brown, or marked L.
N: Neutral - connect to the house wires coloured
blue, or marked N.
IC: (Hardwire Interconnect- Only used to bridge a
mixed wired and wireless system)
Insert second screw and tighten both screws on the base and replace the terminal cover.
REMOVEABLE
TRUNKING DOOR FOR
To Next Page
