26
4. Interlinking
1. Run the dual-core cable to the alarm locations.
2. Pull the cable through the openings in the mounting plate (before you screw the
mounting plate onto the ceiling), see Figure 13b.
3. When you are laying the cable along the surface, simply break open the two recesses
(see Figure 14a).
4. Lift out the terminal block vertically using a small screwdriver (see Figure 14b). Fit the
cables in the terminal block.
5. Screw the two cable cores firmly into the terminal block (see Figure 14b). Then
carefully push the terminal block back onto the two base pins.
6. Twist the alarm onto the mounting plate clockwise until it clicks into position.
Install and connect all of the other alarms in the same way.
12 12

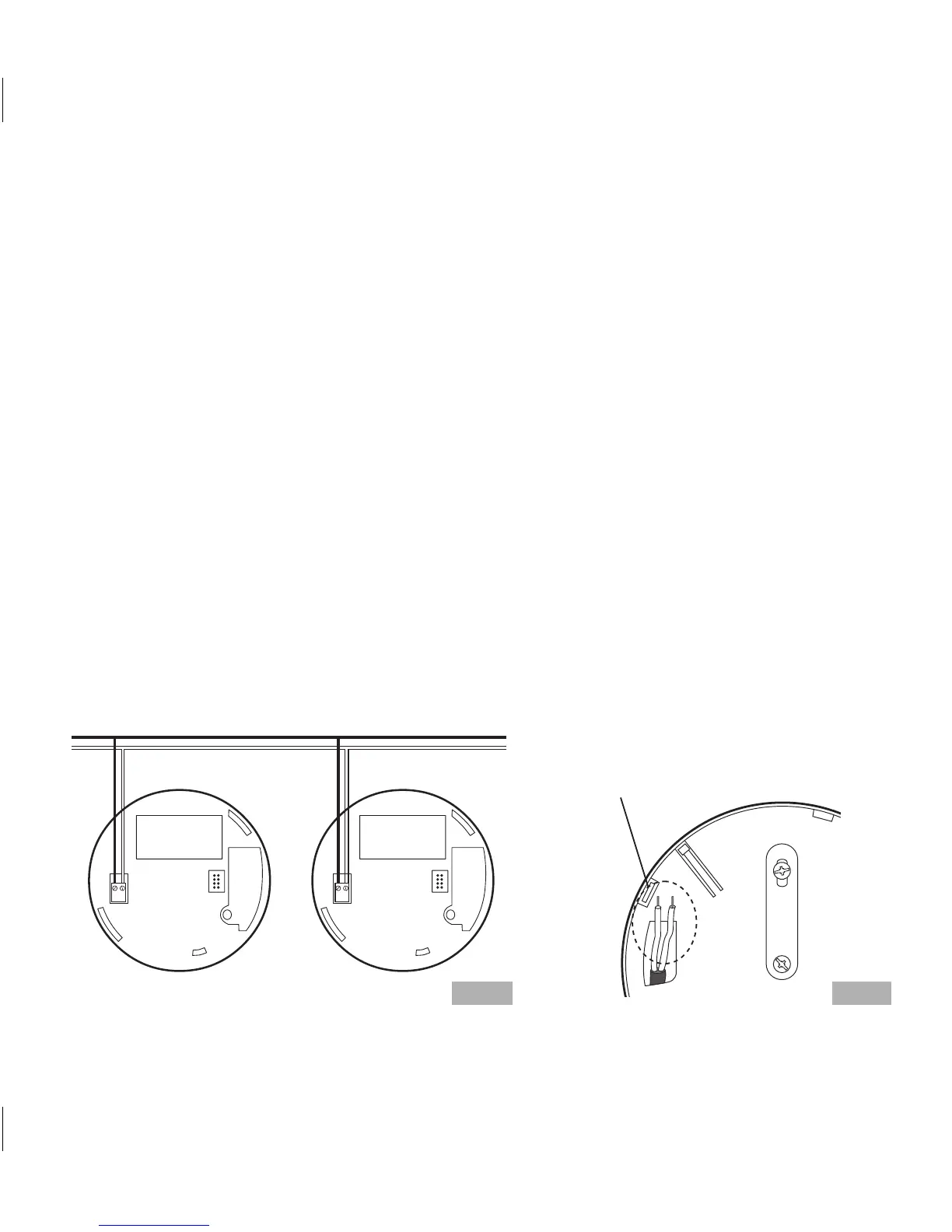

Fig. 13a
Opening in
mounting plate
Fig. 13b
