. DEADMAN LEVER DISENGAGED
(RELEASED POSITION)

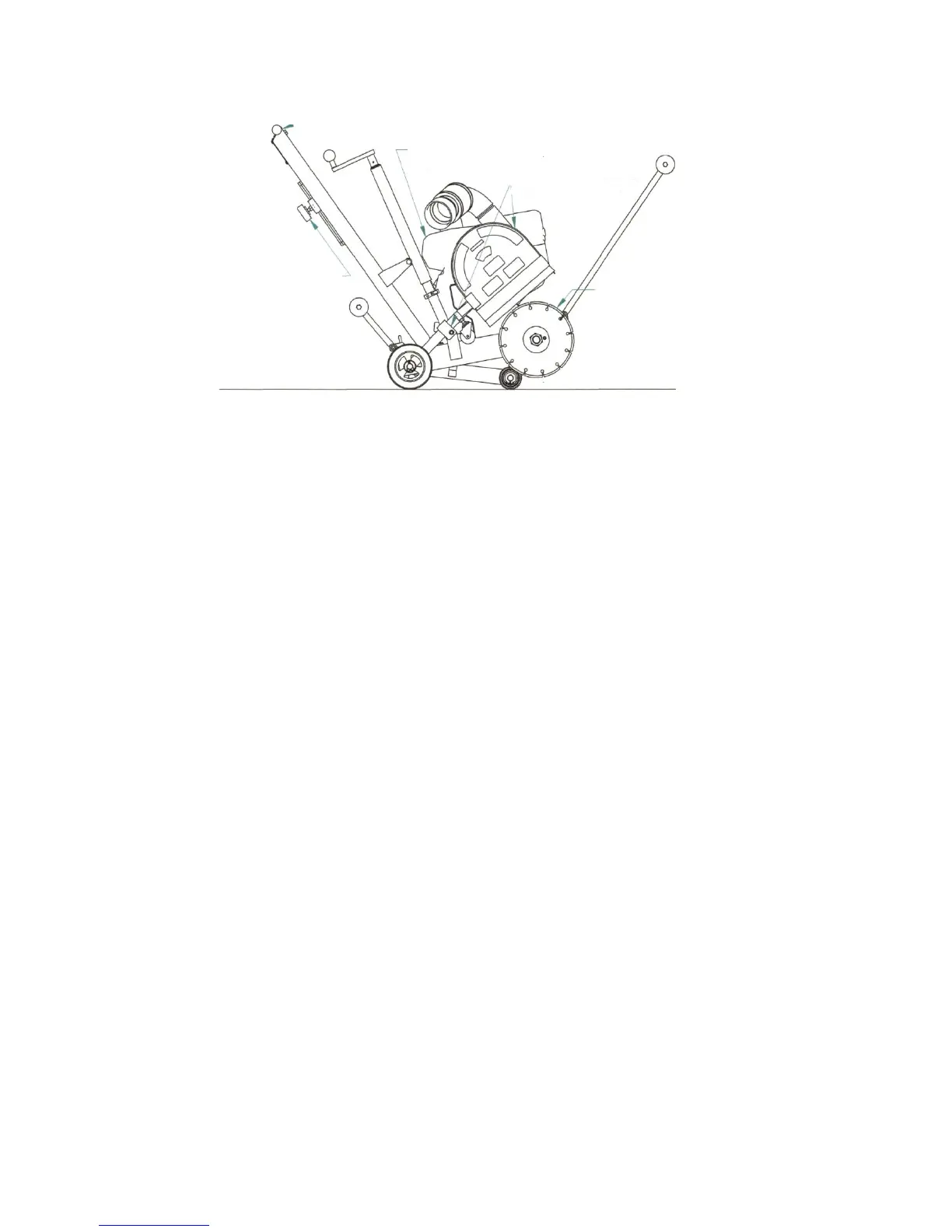

Figure 27 - JS in blade change position with engine off
(Never start engine or run JS in this position)
8.1.3 Place one wrench on the drive flange to hold the blade shaft in place. Place the other wrench on
the blade nut and turn counter-clockwise to loosen the nut.
8.1.4 Unscrew the blade nut. Slide the outer flange, spacers and blade off the shaft.
8.1.5 Replace blade, spacers, and outer flange. Outer flange pin must line up with all spacers and drive
flange to fit through properly.
WARNING
WARNING: Be sure that the flanges, spacers, and blade are clean and undamaged before mounting. Do not
use damaged parts. The JS maximum blade operating speed is 5850 rpm as labeled on the blade guard. The
JS shaft diameter is 1 inch. Therefore, only use dry cut diamond blades rated for higher than 5850-rpm
maximum safe speed and designed for 1-inch diameter shafts. Using a non dry cut diamond blade or a
blade rated below 5850 rpm could result in severe blade failure, personal injury or death. See Figure 28 and
Figure 29. Never cut material for which the blade was not designed. Check blade manufacturer's guidelines on
material to be cut. Never operate a blade in the wrong rotation direction. Verify blade direction when changing
blades.
5850 MAX. RPM
£2001 Hazard Communication Sytlemi, LLC aOO-748-0241
Figure 28 - Max rpm label - maximum blade speed
30
HONDA ENGINE SWITCH
AND FUEL VALVE LEVER
TURNED TO "OFF" POSITION
BLADE IS AT
COMPLETE STOP
LOOSEN CLAMPING KNOB TO
REMOVE BOTH WRENCHES
-— BLADE GUARD LOCKED IN UP I
POSITION WITH BOLT ON HOLDING
BRACKET
