5.18 Slide the 4" diameter vacuum hose over the connector and tighten the worm drive hose clamp. Pull
firmly on the hose to verify the connection will not slide off.
5.19 Check for missing or loose bolts. Tighten loose bolts and replace missing bolts before operating
machine. Verify that belt and blade guards are in place. Never operate a JS without guards in
place. See Figure 14 and Figure 15.
WARNING
5.20
WARNING: If you can see the drive belt or diamond blade, the guards are not in place. Never
operate a JS without guards in place. The proper position for the belt guard is bolted with four bolts to
the chassis. The proper position for the blade guard is down with the white guard dust brush
touching the horizontal surface. See Figure 14 and Figure 15.
WARNING
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
E2001 HCS 800^4*0241 No.H6060-H5WVPK

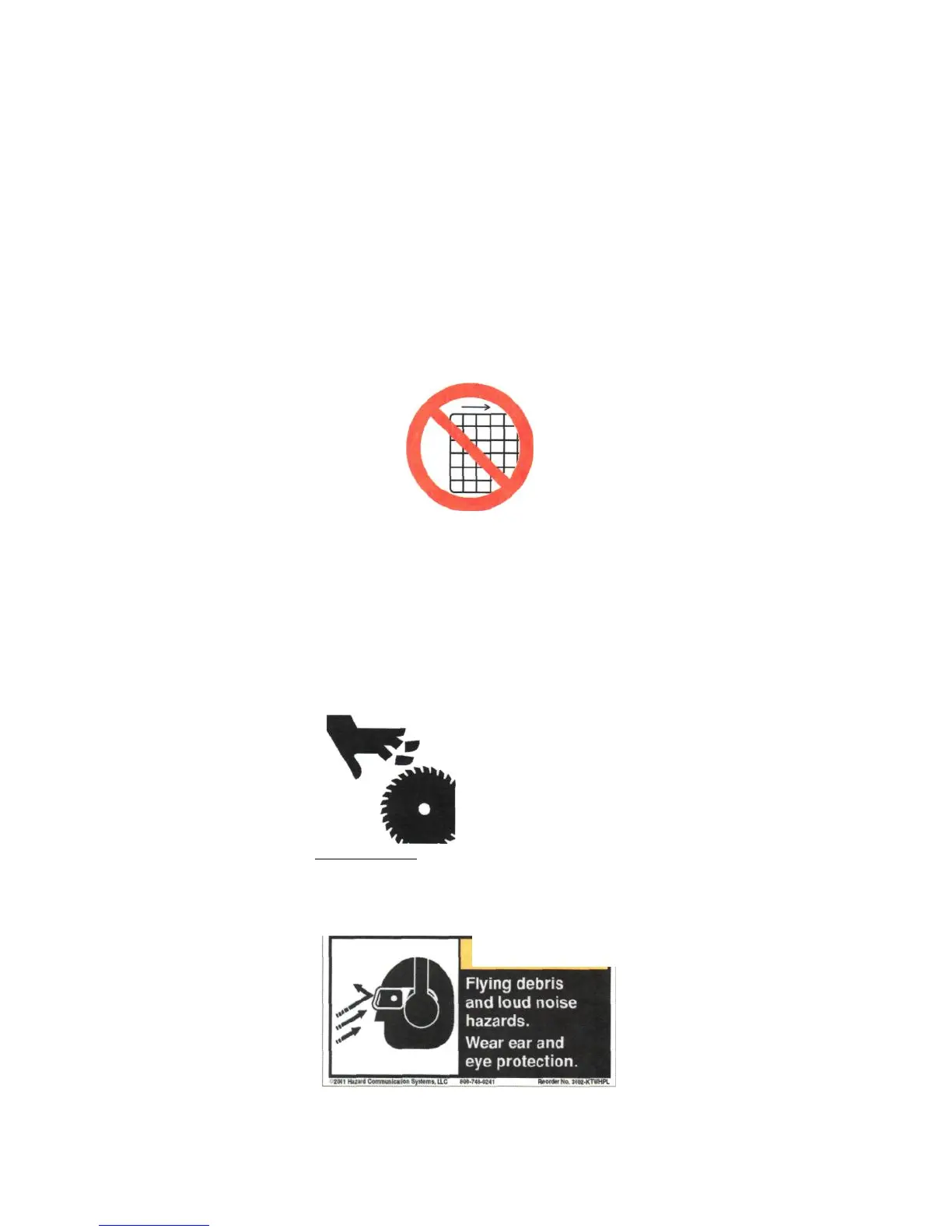

Figure 14 - Warning label - do not operate with guard removed
WARNING
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
&200J HCS. LLC aOO-748-0241
No. 11SO-557WHPL
5.21
Figure 15 - Warning label - do not operate with guard up
Dress properly. Wear ear and eye protection. See sections 4.3 through 4.7. See Figure 16.
Figure 16 - Warning label - wear ear and eye protection
16
