DETAIL D

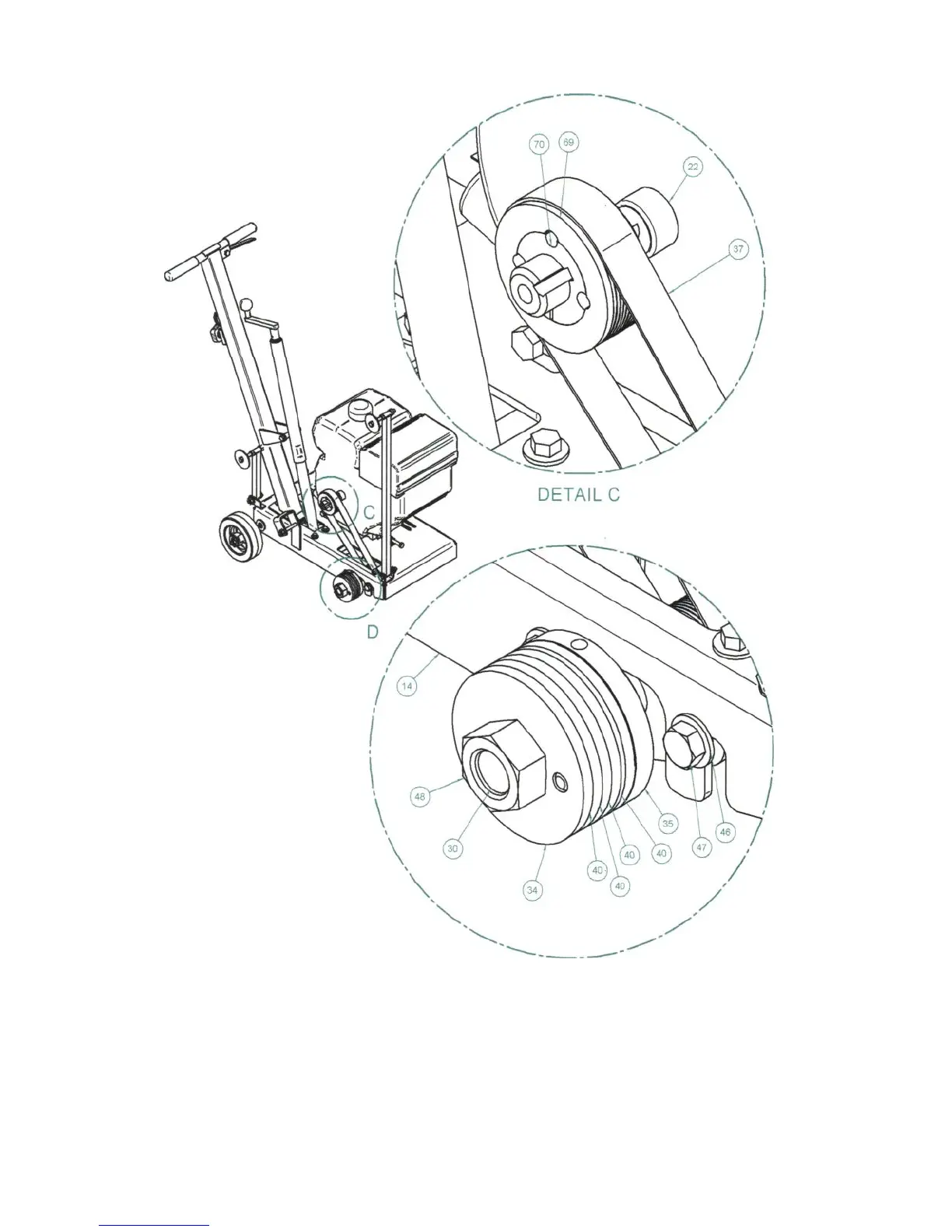

Figure 22 - JS SERIES SAWS with belt and flange details
(Shown without belt guard, item #20, and blade guard, item #16.
Never run a JS without both guards in place.)
25
