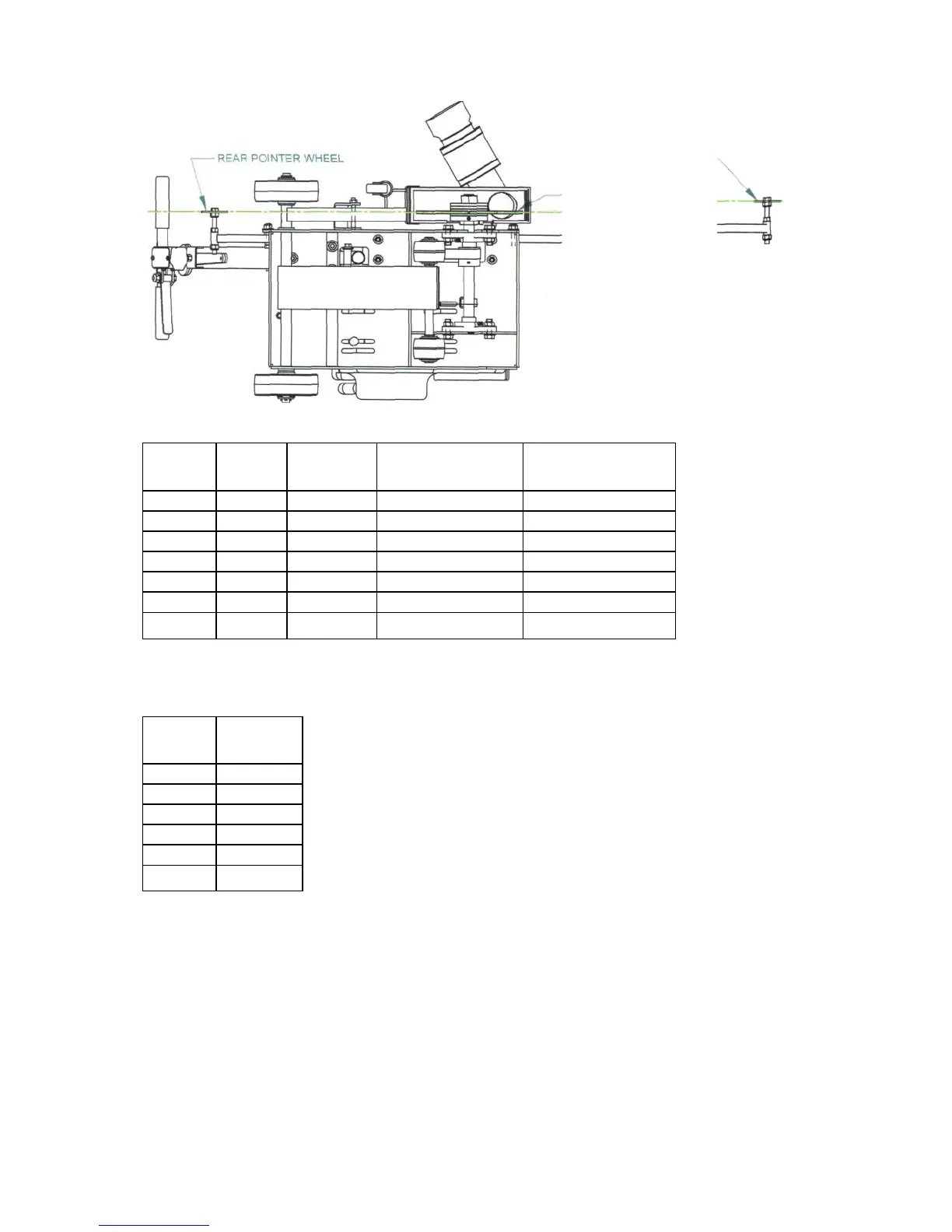

FRONT POINTER WHEEL —
BLADE
INTENDED CUT
LINE
Figure 12 - Alignment
of blade and the
pointer wheels - JS
bottom view
5.14 There are seven slots 1/4"
apart in the jack assembly lower
arm. As the bottom of the jack
assembly upper arm moves past
each 1/4" slot, this represents
approximately 3/4" in blade depth
travel. Counting the number of turns
on the handle can also control the
blade depth. See Table 1, Table 2, and Figure 13.
Slot*
Number
of Turns
Upper Arm
Travel
Depth for 010" Blade
Depth for 08" Blade
1 (lowest)
0.0
0.00
3.00
2.00
2
1.5
0.25
2.25
1.25
3
3.0
0.50
1.50
0.50
4
4.5
0.75
0.75
-0.25
5
6.0
1.00
0.00
-1.00
6
7.5
1.25
-0.75
-1.75
7
9.0
1.50
-1.50
-2.50
Table 1 - Approximate blade depth chart in inches
(Positive numbers represent blade depth into concrete, negative
numbers represent clearance of blade out of concrete)
Number
of Turns
Blade Depth
0.5
0.25
1.00
0.50
1.50
0.75
2.00
1.00
2.50
1.25
3.00
1.50
Table 2 - Handle turns and affect on approximate blade depth in inches
