-ALL WARNING STICKERS IN
PLACE
/ ---- BLADE GUARD IN
/ DOWN POSITION
/-----DUST BRUSH FIRMLY
/ TOUCHING CONCRETE
POINTER WHEEL DOWN
-AREA IN FRONT IS CLEAR FROM
PEOPLE. TOOLS OR ANY LOOSE
OBJECTS. ETC

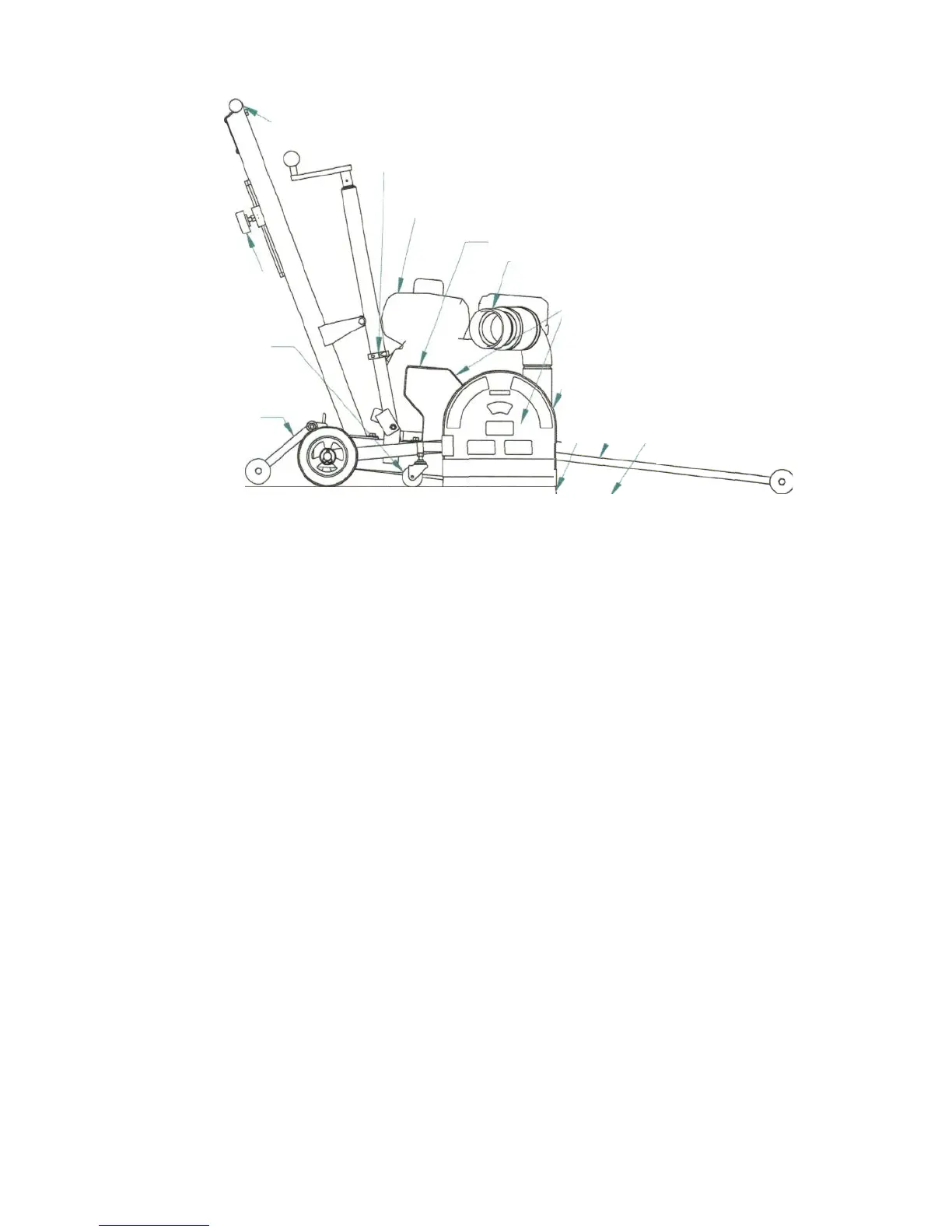

Figure 17-JS SERIES SAWS in
cutting operation
(Operator wearing personal protective
equipment and dust collector are not shown)
6.15
6.16
When through cutting, turn handle counterclockwise with your right hand to raise the blade out of the
work surface. Continue until the jack assembly upper arm is above the sixth depth slot. This will
allow proper clearance between the work surface and the blade tip. The JS may now be pushed to
another work area.
To stop the JS in an emergency, release or disengage the deadman lever. During normal operation as
instructed in Section 6.0, keep a firm hold on both handle grips and maintain control of the machine
until the blade completely stops. To remove the blade from the work surface after an emergency stop,
follow directions in step 6.1
WARNING
WARNING: The deadman lever is designed to stop the Honda engine during either normal use or in an
emergency. It may be released at any time during operation regardless of the blade position. If any unsafe
operating condition arises, immediately release the deadman lever. Beware that after releasing the lever, the
blade will continue spinning for several seconds. Keep a firm hold on the handle grips and maintain control of
the machine until the blade completely stops.
6.17 To stop the JS under normal conditions, turn the handle counterclockwise with your right hand until
the jack assembly upper arm is above the sixth depth slot. This will allow clearance between the
work surface and the blade tip. Release or disengage the deadman lever. Keep a firm hold on the
handle grips and maintain control of the machine until the blade completely stops.
6.18 Turn the Honda engine switch to the OFF position.
6.19 Turn the Honda fuel valve lever to the OFF position.
18
— DEADMAN LEVER ENGAGED
BY LEFT HAND
DEPTH ADJUSTMENT
SHAFT COLLAR IN PLACE
/—HONDA ENGINE SWITCH
TURNED TO "ON" POSITION
BELT GUARD IN PLACE
— 4" HOSE CONNECTED
TO DUST COLLECTOR
(HOSE NOT SHOWN)
WRENCH CLAMPING^
KNOB SECURE
CASTER WHEEL
ON GROUND
POINTER WHEEL
DOWN
