Chapter 7 Reference
7-1. Using the Docking Station Function
This product is equipped with a LAN port and USB hub so that it can be used as a docking station. By
connecting with USB, you can create a stable network environment even on notebook PCs or tablet
devices that are not equipped with LAN ports. You can also use USB-compatible peripheral devices and
charge smartphones.
●
Connection Procedure
When the PC you are using has a USB Type-C connector

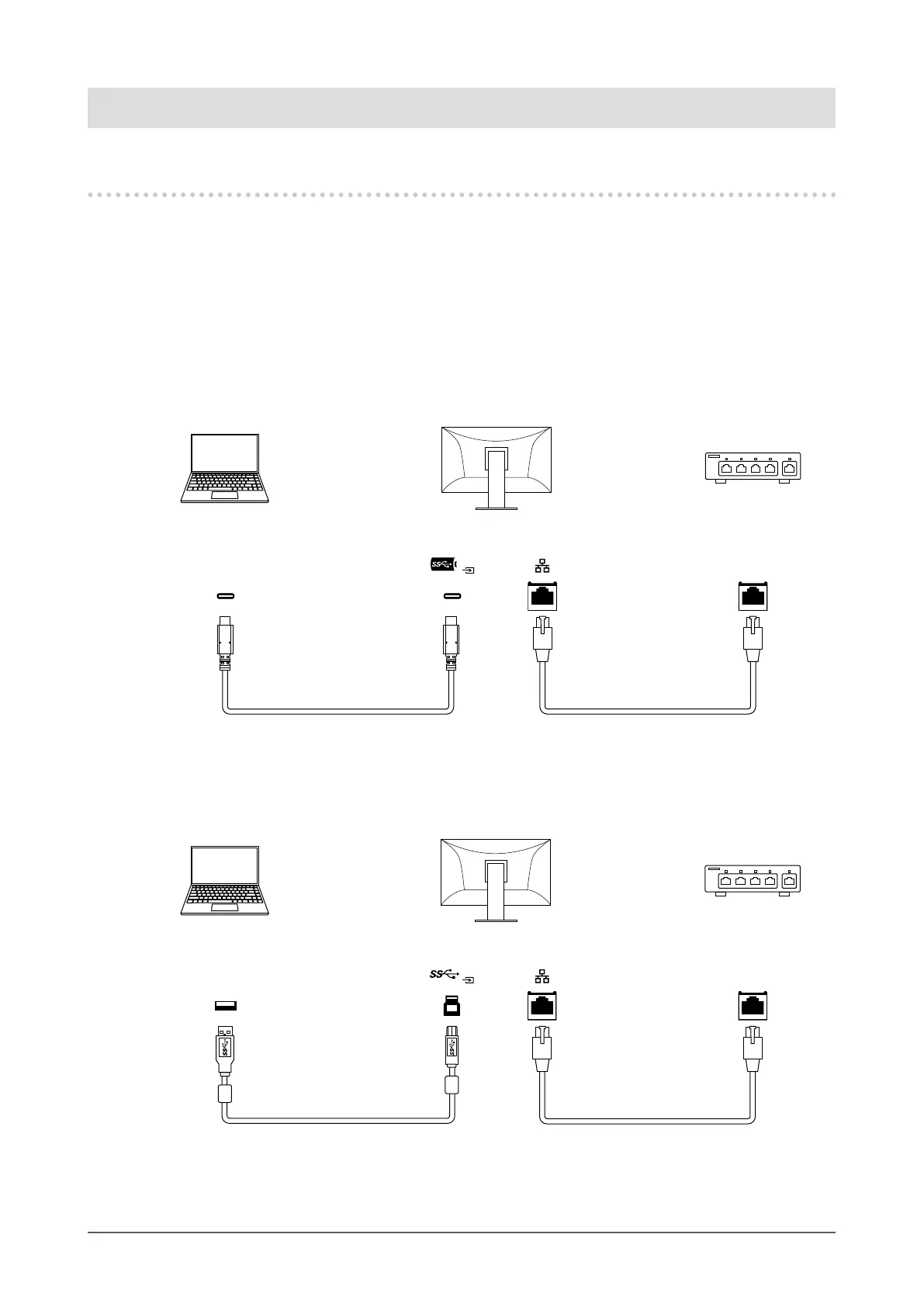

1. Connect a USB cable (CC200SS-5A or CC200SSW-5A).
2. Connect a LAN cable to the LAN port of the monitor.
CC200SS-5A
or
CC200SSW-5A
USB cable (USB Type-C - USB Type-C)
(Included)
USB Type-CUSB Type-C
LAN cable
(Commercially available product)
LAN port LAN port
When the PC you are using does not have a USB Type-C connector
1. Connect a USB cable.
2. Connect a LAN cable to the LAN port of the monitor.
USB 3.0 cable
(USB Type-B - USB Type-A)
(Commercially available product)
USB Type-BUSB Type-A
LAN cable
(Commercially available product)
LAN port LAN port
