Chapter 3 Connecting Cables
3-1 Connecting Two PCs to the Monitor
Two PCs can be connected to the monitor through the DVI-D and the D-Sub
mini15pinconnectoronthebackofthemonitor.

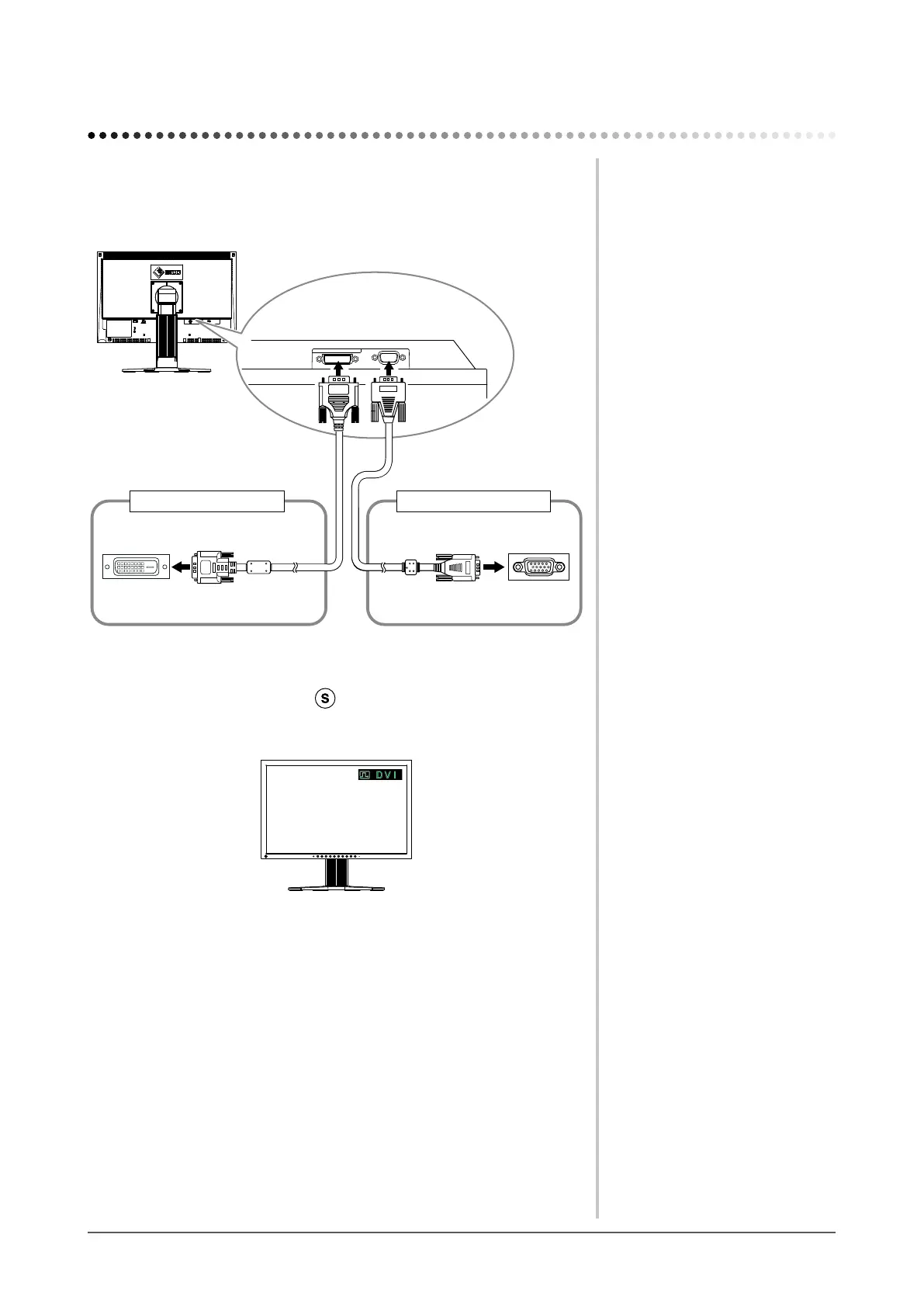

Connection examples
DVI-D connector
D-Sub mini
15-pin Connector
D-Sub mini 15-pin
Connector
DVI-D connector
Signal cable
(Digital) FD-C39
Signal cable
MD-C87
To PC 2To PC 1
●
To switch the input signal
The input signal switches each time ispressed.
When the signal is switched, the active input port name appears at the top right
cornerofthescreen.
