Chapter 1 Features and Overview

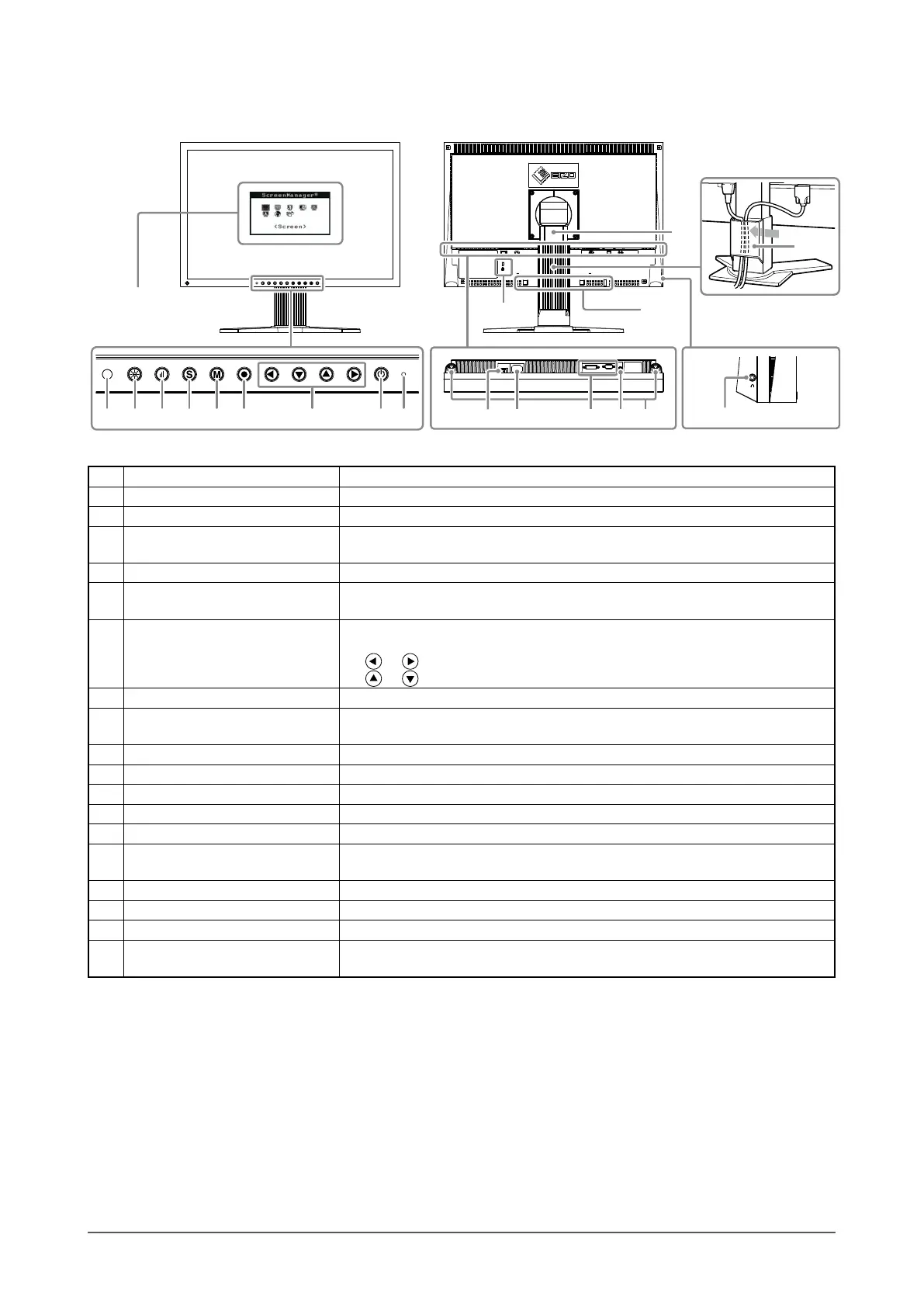

1-2 Controls and Functions
Ex. Height adjustable stand
1 2 3 4 5 6 7 98 10
18
12 13 14 17
15
11
19
16
Adjustment menu
(
*
ScreenManager
®
)
1 Sensor Detects ambient brightness. Auto EcoView function (page 18).
2 Auto EcoView button Allows you to switch the Auto EcoView function On or Off (page 18).
3 EcoView Index button Displays the EcoView index (page 19).
4 Input Signal Selection button Switches input signals for display when two PCs are connected to the
monitor (page 23).
5 Mode button Allows you to switch the display mode (page 14).
6 Enter button Displays the Adjustment menu, determines an item on the menu screen, and
saves values adjusted (page 9).
7 Control buttons (Left, Down,
Up, Right)
• Chooses an adjustment item or increases/decreases adjusted values for
advanced adjustments using the Adjustment menu (page 9).
• or button: Displays the volume adjustment menu (page 7).
• or button: Displays the brightness adjustment menu (page 7).
8 Power button Turns the power on or off.
9 Power indicator Indicates monitor’s operation status.
Blue: Operating Orange: Power saving Off: Power off
10 Main Power Switch Turns the main power on or off.
11 Security lock slot Complies with Kensington’s MicroSaver security system.
12 Power connector Connects the power connector.
13 Input signal connectors DVI-I Connector/D-Sub mini 15-pin connector
14 Stereo mini jack Connects the stereo mini jack cable.
15 Stand
Used to adjust the height (Height adjustable stand and EZ-UP stand only)
and angle of the monitor screen.
16 Cable holder Covers the monitor cables.
17 Speaker Outputs audio source.
18 Headphone jack Connects the headphones.
19 Option speaker (i·Sound L3)
mounting holes
Used to attach the option speaker (i·Sound L3). (May not allowed to attach
the option speaker depending on the stand type.)
* ScreenManager
®
isanEIZO’snicknameoftheAdjustmentmenu.(ForhowtouseScreenManager,refertotheUser’sManualontheCD-ROM.)
