32 7. SPECIFICATIONS

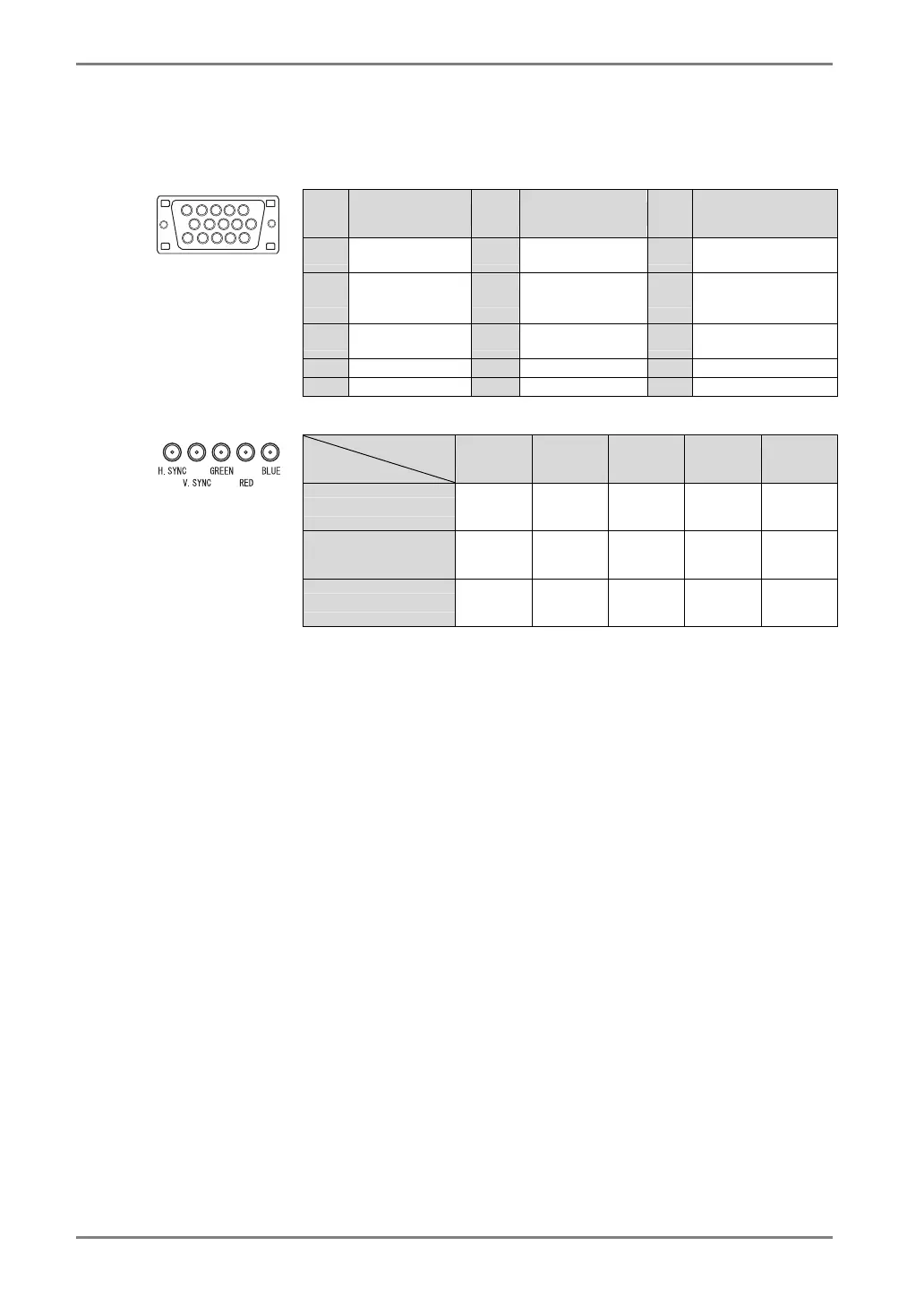

Pin Assignment
D-Sub mini 15 pin connector
No.
Signal No. Signal No. Signal
1 Red Video 6 Red ground 11
Ground (shorted with
10 pin)
2
Green Video /
Green composite
sync
7 Green ground 12 Data (SDA)
3 Blue video 8 Blue ground 13
H.Sync / HV composite
Sync
4 Ground 9 - 14 V.Sync
5 - 10 Ground 15 Clock (SCL)
BNC-Connector
Connector
Input signal
H.Sync V. Sy nc Green Red Blue
Separate sync
H.Sync V.Sync Green Red Blue
Composite sync
H/V
composite
synce
N/A Green Red Blue
Sync on Green
N/A N/A
Green
Composite
sync
Red Blue
5
1
3
4
2
8
7
6
9
10
12
1314
15
11
