Electronic convection oven rev. 5 _________________________________________MODELS EKF 464 TC – EKF 511 TC
_________________________________________________________________________________________ page 5

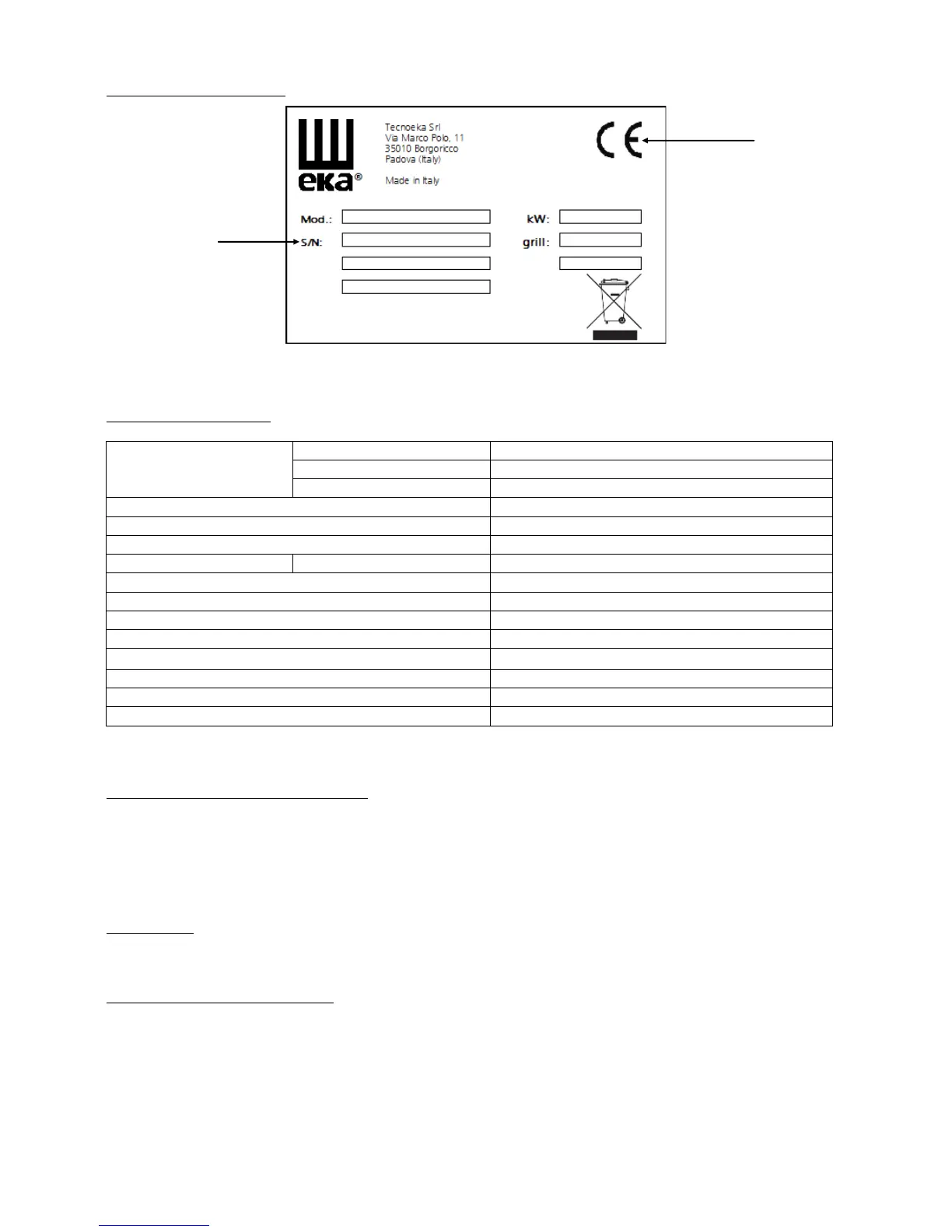

2.1 Technical data plate (example)
The “technical data” plate is located on the side of the appliance.
2.2 Technical features
Overall dimensions:
Height (with feet)
cm 74,5
width
cm 93,5
depth
cm 93
Weight:
kg 85
Maximum load per tray GN1/1-600x400mm
kg 4 - 2
Maximum load GN1/1-600x400mm
kg 20 - 8
Electrical power:
Convection resistors
kW 7,5
Maximum electrical power:
kW 8
Electrical insulation class:
I
Casing protection degree:
IPX5
Water pressure:
kPa 100 – 200
Power supply voltage:
400V 3N 50/60 Hz
Power supply cable section:
5G 2,5 (5 x 2,5 mm
2
)
Power supply cable type:
H07RN-F
Power supply cable connection:
Tipo : Y
The noise level of the appliance in operation is less than 70 dB (A).
3. Instructions for the installer
The following instructions are aimed at the skilled installer for them to perform installation,
electrical and water connection operations in the most correct manner and according to the safety
regulations in force in the place of installation of the appliance. The manufacturer shall not be
liable for damage or harm to persons, pets or property arising from installation errors. Nor are they
responsible for any appliance breakage caused by faulty installation.
3.1 Storage
In the event the appliance has been warehoused at temperatures below 0°C (maximum allowed –
5°C), it must be brought back to a temperature of at least +10°C before operating it.
3.2 Transport of the appliance
During transport the appliance must be left in its packaging in order to protect it from any
external damage.
The weight of the appliance must also be taken into account in order to prevent overturning.
CERTIFICATION
SERIAL NUMBER
EKF 464 TC
5214010500
8 kW
IPX5
400V 3N 50/60 Hz
400V 3N  50/60
Hz
kPa 100 - 200
