S66A Stereo Sub-Zones
• Preamp Output 1 & 2 to Line Inputs 1 & 2
• Preamp DIP Switches in FIXED Position
• Volume Controls on Each Speaker Output
Each Zone and Sub-Zone Has Independent Volume Control
A2
S66A
Maximum # of 8 Ohm
speaker pairs without
Volume Controls
4
Outdoor
Speakers
Outdoor
Speakers
Outdoor
Speakers
Outdoor
Speakers
Fixed

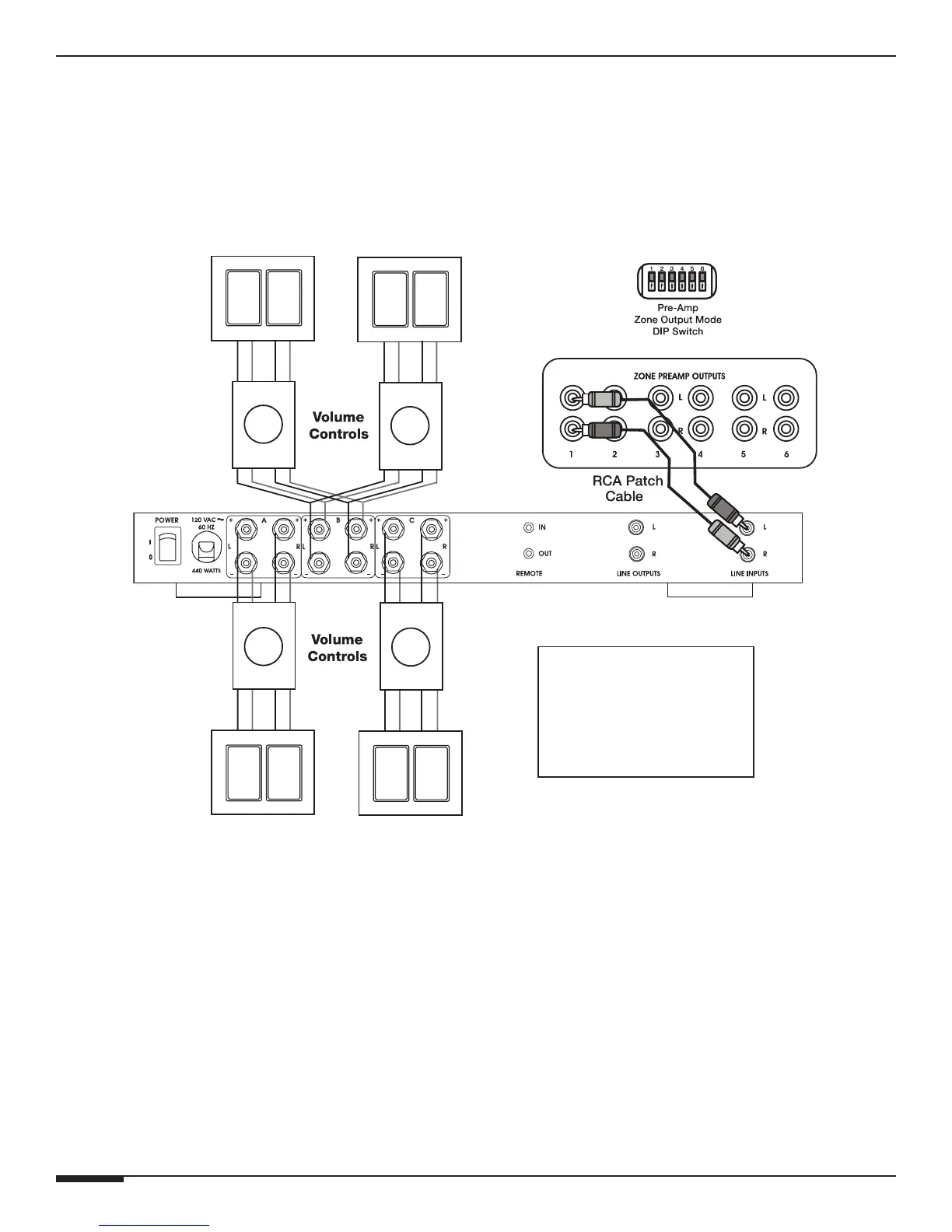

Figure 2-9: S66A Sub-Zones
