A2 INSTALLATION MANUAL
S128P Stereo Sub-Zones
ELAN’s S128P Integrated Multi-Room Controller has variable preamp outputs for eight stereo zones as well as eight
sets of fixed preamp outputs for the addition of sub-zones. The A2 has the ability to provide high power to large
area such as Great Rooms. Use rotary or electronic volume controls if separate volume up/down functionality is
desired in the sub-zones.
S128P Stereo Sub-Zones
• RCA Line Out cables in VARIABLE Preamp Outputs
Each Zone and Sub-Zone Speakers Volume Ramps Together
S128P
A2
Maximum # of 8 Ohm
speaker pairs without
Volume Controls
4
Great Room
Speakers
Great Room
Speakers
Great Room
Speakers
Great Room
Speakers

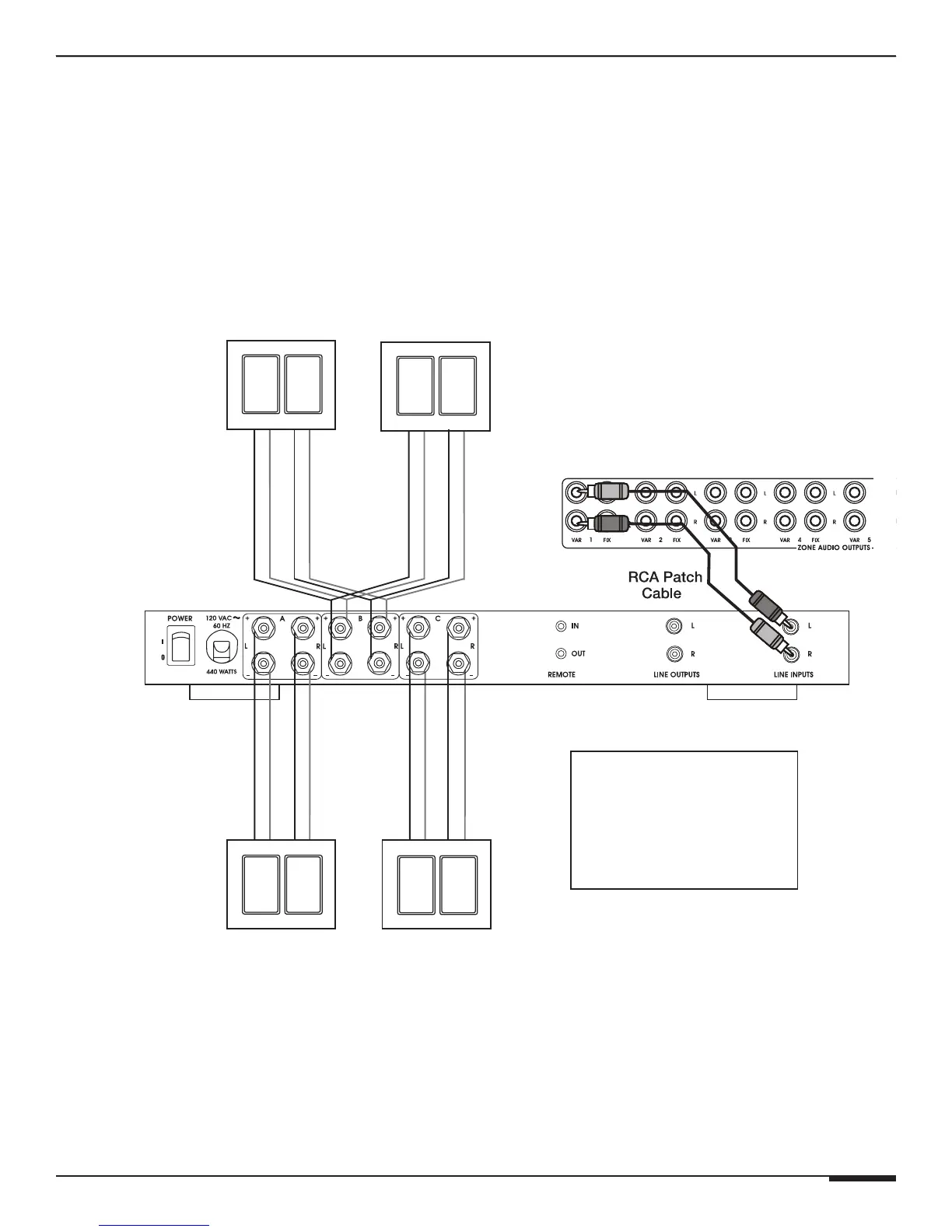

Figure 2-10: S128P Sub-Zones
