E L A N H O M E S Y S T E M S
Page 14 © ELAN Home Systems 2009 • All rights reserved.
A2 INSTALLATION MANUAL
S128P Stereo Sub-Zones
• Fixed Preamp Output 1 & 2 to Line Inputs 1 & 2
• RCA Line Out cables in FIXED Outputs
• Volume Controls on Each Speaker Output
Each Zone and Sub-Zone Has Independent Volume Control
S128P
A2
Maximum # of 8 Ohm
speaker pairs without
Volume Controls
4
Great Room
Speakers
Great Room
Speakers
Great Room
Speakers
Great Room
Speakers

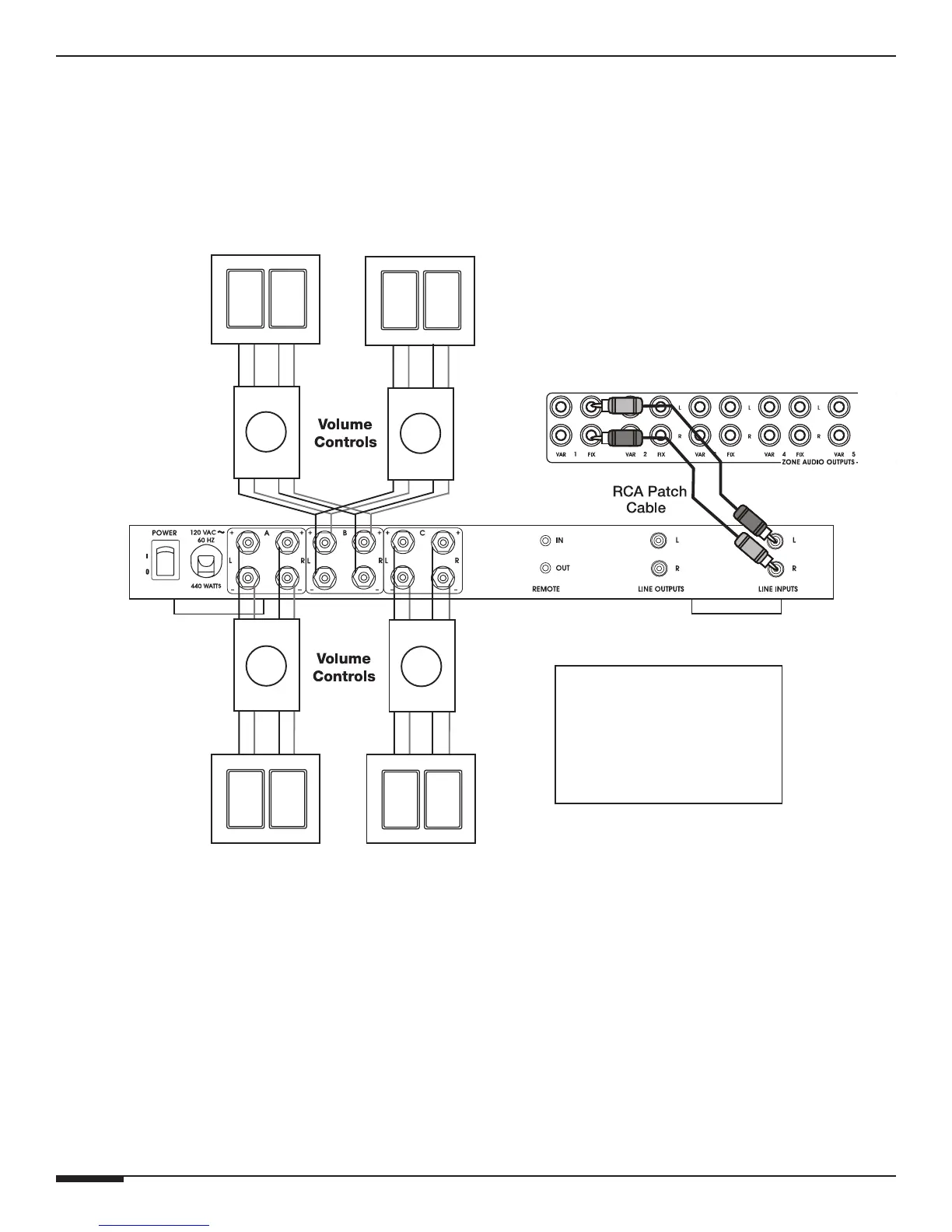

Figure 2-6: S128P Sub-Zones
