A6 INSTALLATION MANUAL
This amplifier is great for commercial applications such as restaurants and sports bars. In the example below, each
speaker will ramp volume up and down independently.
Wide Coverage Mono Zones
• Stereo Output to RCA ‘Y’ Cable to Line Input 1
• Line Output 1 to Line Input 2
• Bus Mode Button switched to ON
• Mono Volume Controls on Each Speaker Output
All Speakers Volume Ramps Up & Down Independently
A6
RL
Wide Coverage
Mono Zones
Set A6
BUS MODE
Button
To ON
Bus Mode Button
Line Level
Analog Audio
Output
RCA ‘Y’
Patch Cable

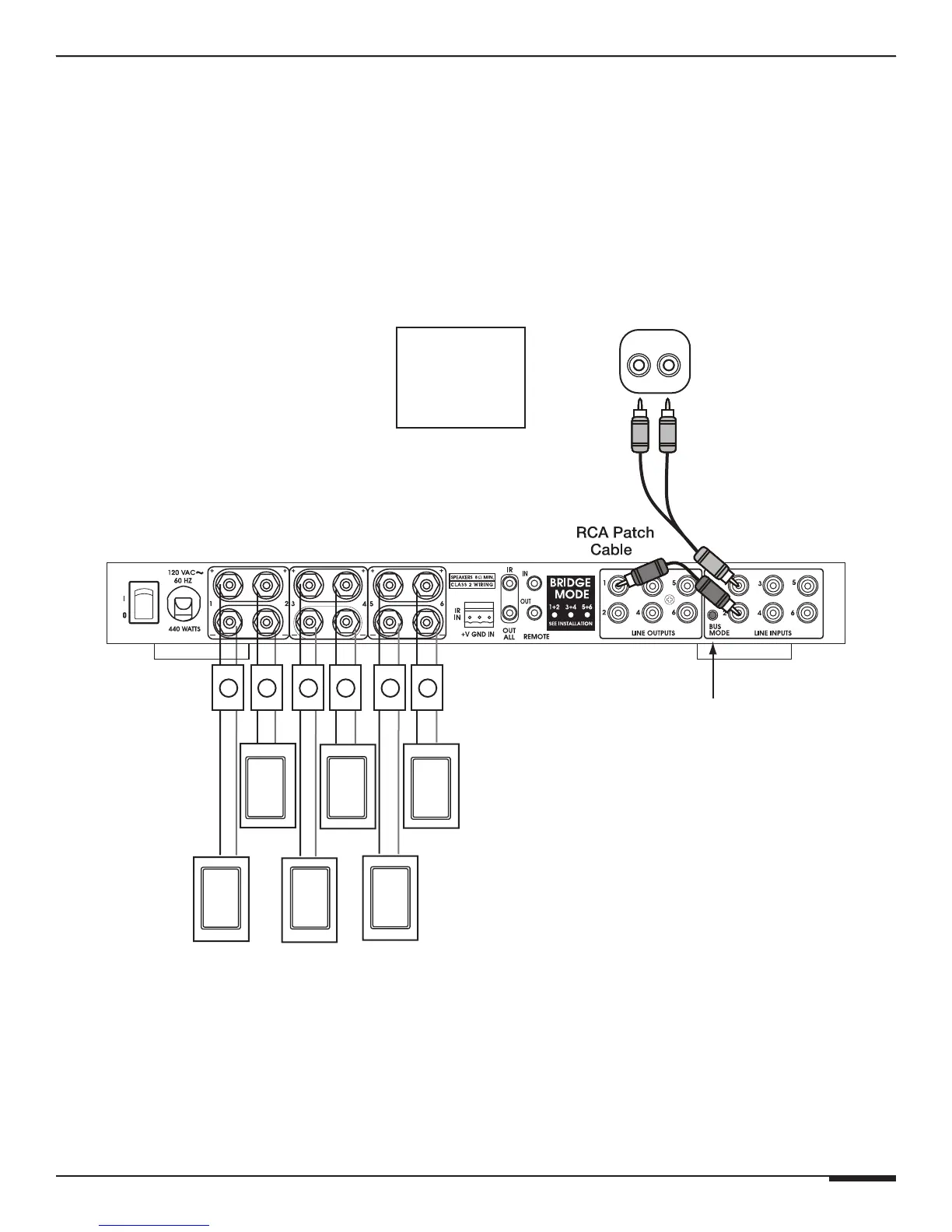

Figure 2-4: Wide Coverage Mono Zones
