A6 INSTALLATION MANUAL
Stereo Zone w/ Mono Sub-Zone
Use the Line Output Jacks and an RCA ‘Y’ cable to create mono sub-zones within a stereo zone. This application
is perfect for large rooms with smaller rooms attached such as a Master Bedroom/Master Bath or Kitchen/Laundry
Room.

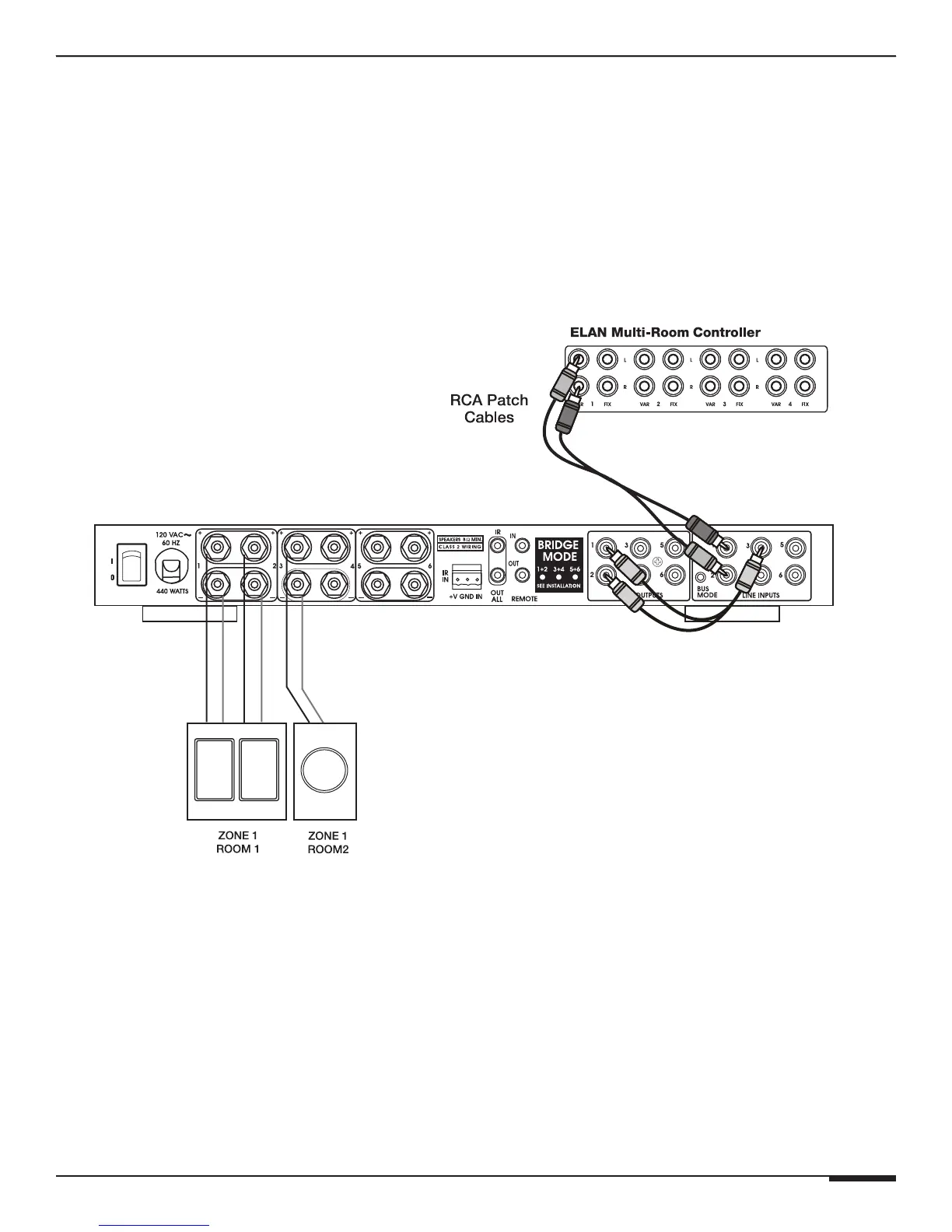

Stereo Zone w/ Mono Sub-Zone
• Zone 1 Output to Line Inputs 1 & 2
• Line Outputs 1 & 2 to RCA ‘Y’ Cable
• RCA ‘Y’ Cable to Line Input 3
All Speakers Volume Ramps Up & Down Together
RCA ‘Y’
Cable
ZONE OUTPUTS
Figure 2-6: Stereo Zone with Mono Sub-Zone
