Elan A6 - IR Connections; IR in; IR out

E L A N H O M E S Y S T E M S
© ELAN Home Systems 2009 • All rights reserved. Page 17
A6 INSTALLATION MANUAL
IR IN/OUT ALL Connections
The 3.5mm mono IR IN/OUT ALL is located beside the Remote Trigger jacks. This loop allows IR commands to be
sent through each A6 amplifier that is connected and out to additional IR devices such as the ELAN V8, or IRD4.
S66A A6
To ELAN
V8

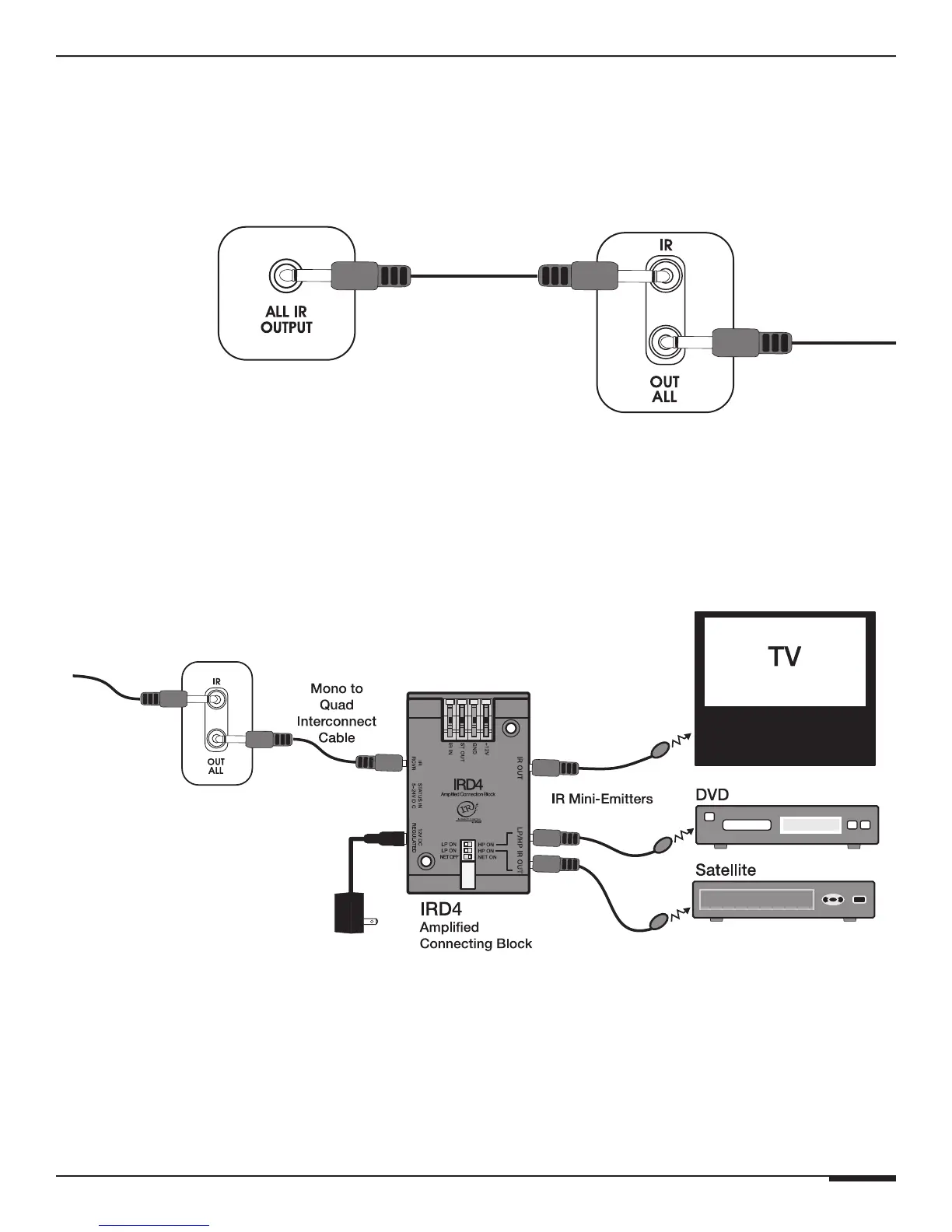

Figure 3-6: IR IN Connection
A6
From VSE2
Figure 3-7: IR OUT ALL Connection
