Elan STROBE-1000-LED-RGB+W User Manual

9
Mounting & Rigging
This fixture can be mounted in any orientation (vertical, horizontal). Always make sure there is adequate
ventilation and no flammable surfaces within 2 feet (.6 meters) of the fixture. You can mount the fixture using
fixture clamps or with threaded bolt type hardware. Always install the included safety eyebolt and cable
when mounting in overhead or wall locations.
The Control Panel
All the goodies and different modes possible with the STROBE-1000-LED-RGB+W are accessed by using
the control panel on the front of the fixture. There are 4 control buttons below the LCD display which allow
you to navigate through the various control panel menus.

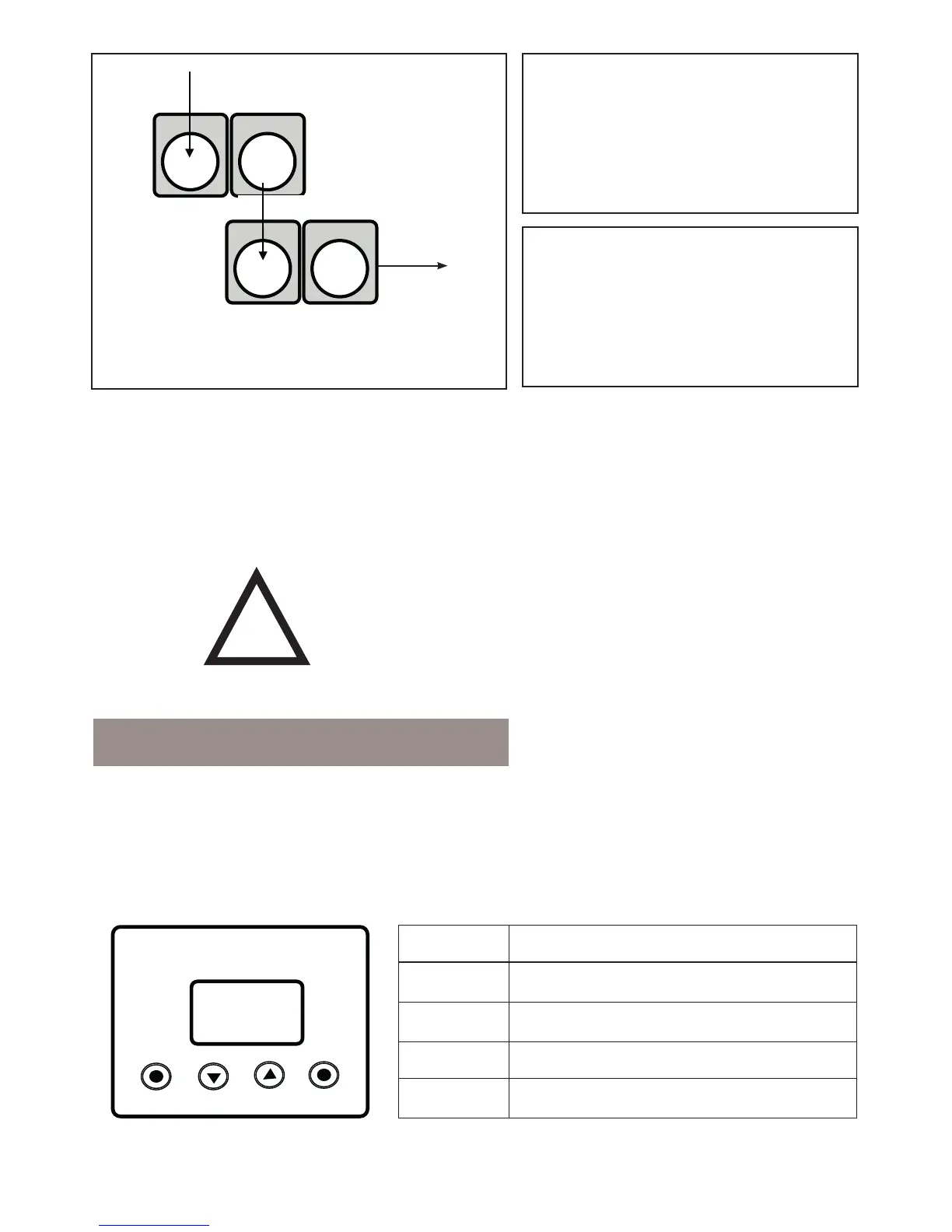

DMX IN
DMX IN
DMX OUT
First Fixture in
Chain
Next Fixture
in Chain
DMX out
T
o Next Fixture
A quick note:
Often, the setup for Master-Slave and Stan-
dalone operation requires that the first fixture
in the chain be initialized for this purpose via
either settings in the control panel or DIP-swit-
ches. Secondarily, the fixtures that follow may
also require a slave setting.
Check the “Operating Adjustments” section in
this manual for complete instructions for this
type of setup and configuration
Warning
Do not mount the fixture in the ventilation path of a nearby
heating supply duct. The heated airflow will cause fixture
failure due to overheating
!
5. Operating Adjustments
LED STROBE
ESC
DOWN
UP
ENTER
Button Function
<ESC>
Used to access the menu or return to a previous
menu option
<DOWN>
Scrolls through menu options in descending
order
<UP> Scrolls through menu options in ascending order
<ENTER>
Used to store the current menu or option within a
menu
