C U S T O M G O B O S
Proteus Lucius utilizes dierent size gobo holders on every wheel.
Please be aware of the intended position and correct sizing requirements of custom gobos.
* * * IMPORTANT NOTICE REGARDING CUSTOM GOBOS * * *
Due to the high temperature optical system, special glass material is required for custom gobos.
Due to varying manufacturing processes and tolerances, it is highly recommended to provide a
gobo sample and holder from the xture to the custom gobo vendor for accurate sizing. Extended
testing of custom gobo designs is highly recommended prior to use. Contact ELATION SERVICE for
further information.
ELATION SERVICE USA -Monday -Friday 8:00am to 4:30pm PST
323-582-3322 | Fax 323-832-9142 | support@elationlighting.com
ELATION SERVICE EUROPE -Monday -Friday 08:30 to 17:00 CET
+31 45 546 85 63 | Fax +31 45 54685 96 | support@elationlighting.eu

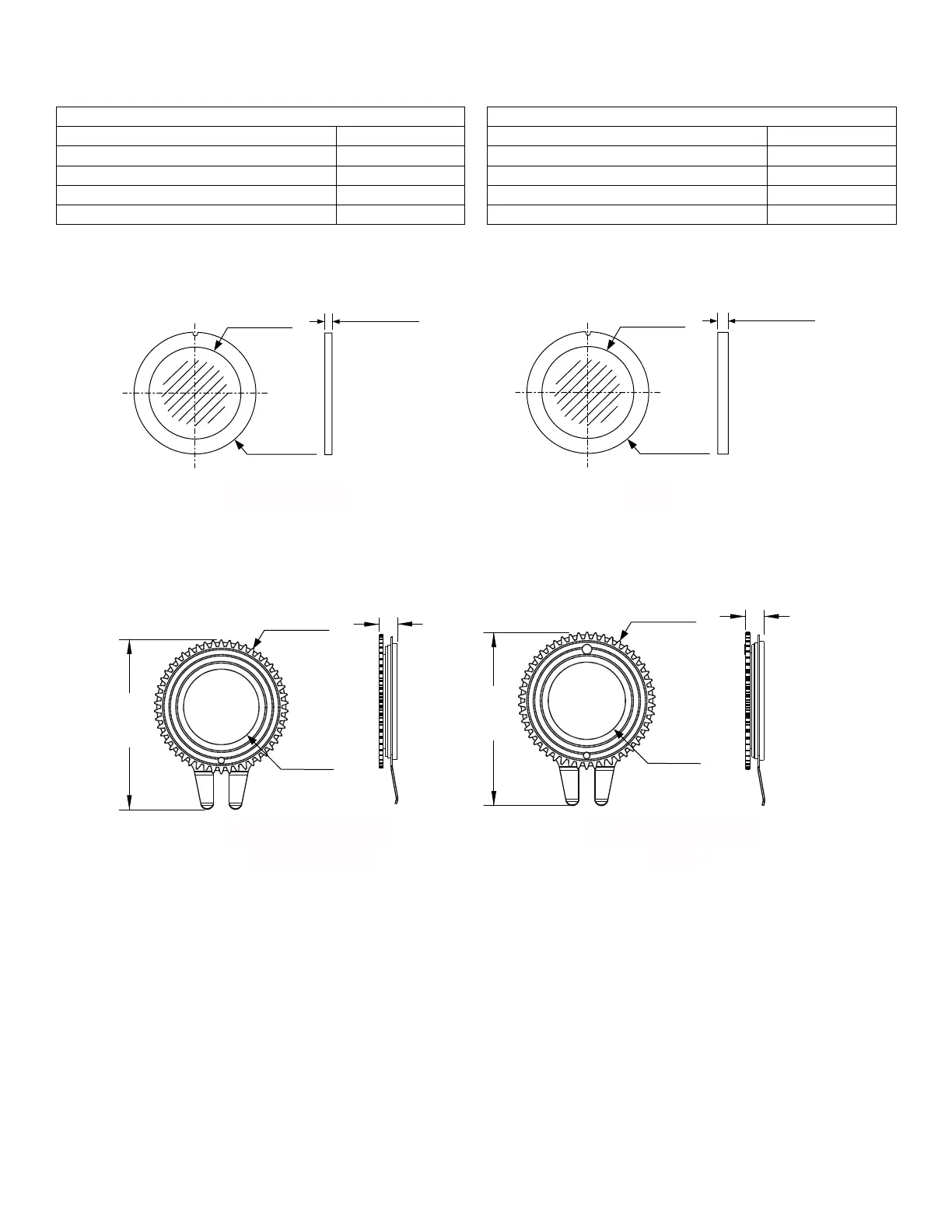

ROTATING WHEEL2 GOBOS - Pos. 1-6:
Gobo Holder Diameter Ø27mm
Gobo O.D. (Max. Outer Diameter) Ø26.8mm
Gobo I.D. (Max. Image Diameter) Ø21mm
Gobo Thickness 1.1mm±0.1mm
Gobo Material CORNING
ROTATING WHEEL2 GOBOS - Pos. 7:
Gobo Holder Diameter Ø27mm
Gobo O.D. (Max. Outer Diameter) Ø26.8mm
Gobo I.D. (Max. Image Diameter) Ø21mm
Gobo Thickness 2.5mm±0.1mm
Gobo Material CORNING
ROTATING WHEEL2 GOBOS
ROTATING WHEEL2 GOBO HOLDERS
Ø21mm
1.1mm
Thickness
Ø26.8mm
Corning
Ø21mm
2.5mm
Thickness
Ø26.8mm
Corning
Pos. 1 - Pos. 6 Pos. 7
5.7mm
53.75mm
Ø42.5mm
Ø24mm
5.01.02.01.0598-0
Pos. 7
5.7mm
53.75mm
Ø42.5mm
Ø24mm
5.01.02.01.0684-0
Pos. 1 - Pos. 6
