C U S T O M G O B O S
Proteus Lucius utilizes dierent size gobo holders on every wheel.
Please be aware of the intended position and correct sizing requirements of custom gobos.
* * * IMPORTANT NOTICE REGARDING CUSTOM GOBOS * * *
Due to the high temperature optical system, special glass material is required for custom gobos.
Due to varying manufacturing processes and tolerances, it is highly recommended to provide a
gobo sample and holder from the xture to the custom gobo vendor for accurate sizing. Extended
testing of custom gobo designs is highly recommended prior to use. Contact ELATION SERVICE for
further information.
ELATION SERVICE USA -Monday -Friday 8:00am to 4:30pm PST
323-582-3322 | Fax 323-832-9142 | support@elationlighting.com
ELATION SERVICE EUROPE -Monday -Friday 08:30 to 17:00 CET
+31 45 546 85 63 | Fax +31 45 54685 96 | support@elationlighting.eu
FIXED WHEEL GOBOS

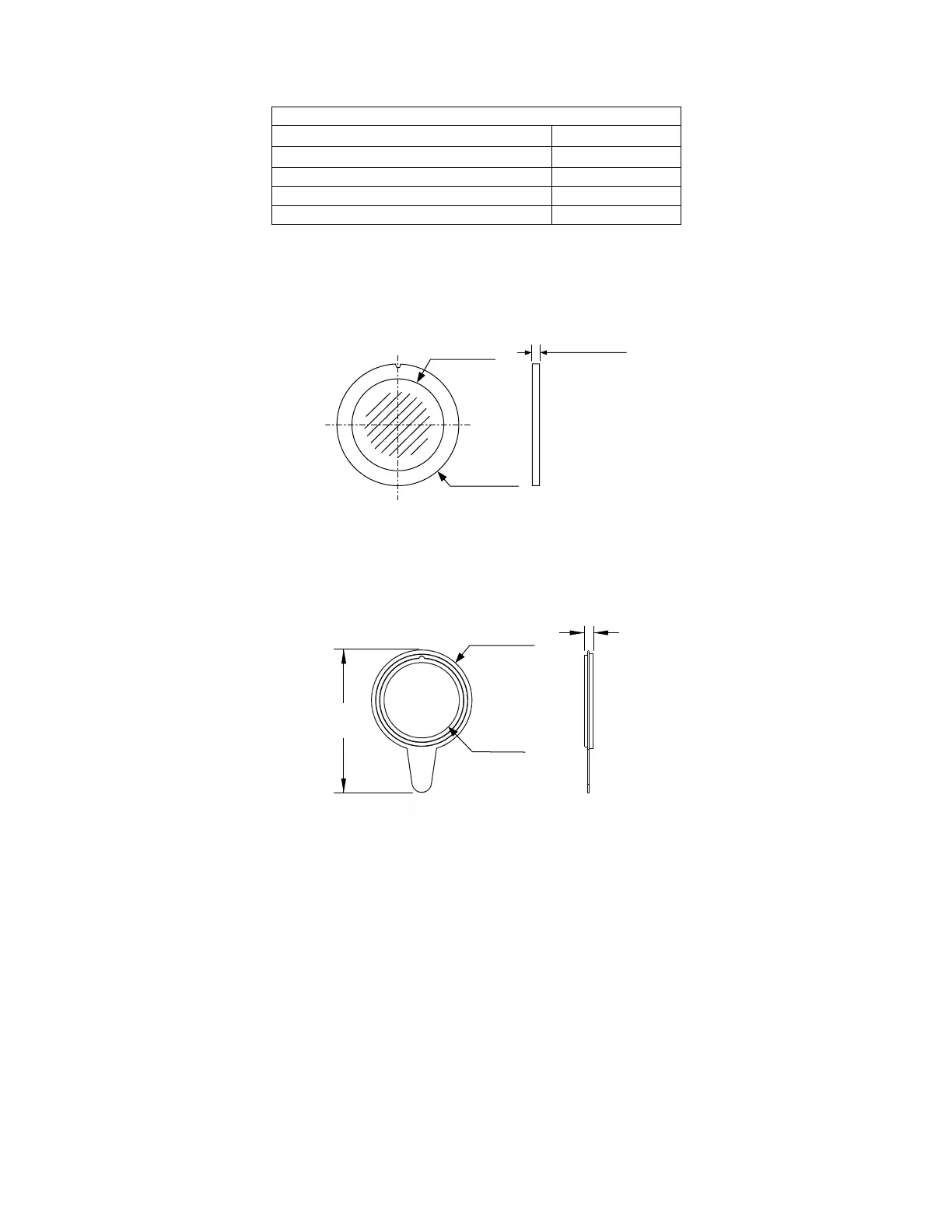

FIXED WHEEL GOBO HOLDERS
FIXED WHEEL GOBOS:
Gobo Holder Diameter Ø30mm
Gobo O.D. (Max. Outer Diameter) Ø29.8mm
Gobo I.D. (Max. Image Diameter) Ø21mm
Gobo Thickness 1.1mm±0.1mm
Gobo Material CORNING
Ø21mm
1.1mm
Thickness
Ø29.8mm
Corning
5.01.02.01.0694-0
51mm
Ø36mm
Ø27mm
3mm
