I N S T A L L A T I O N G U I D E L I N E S

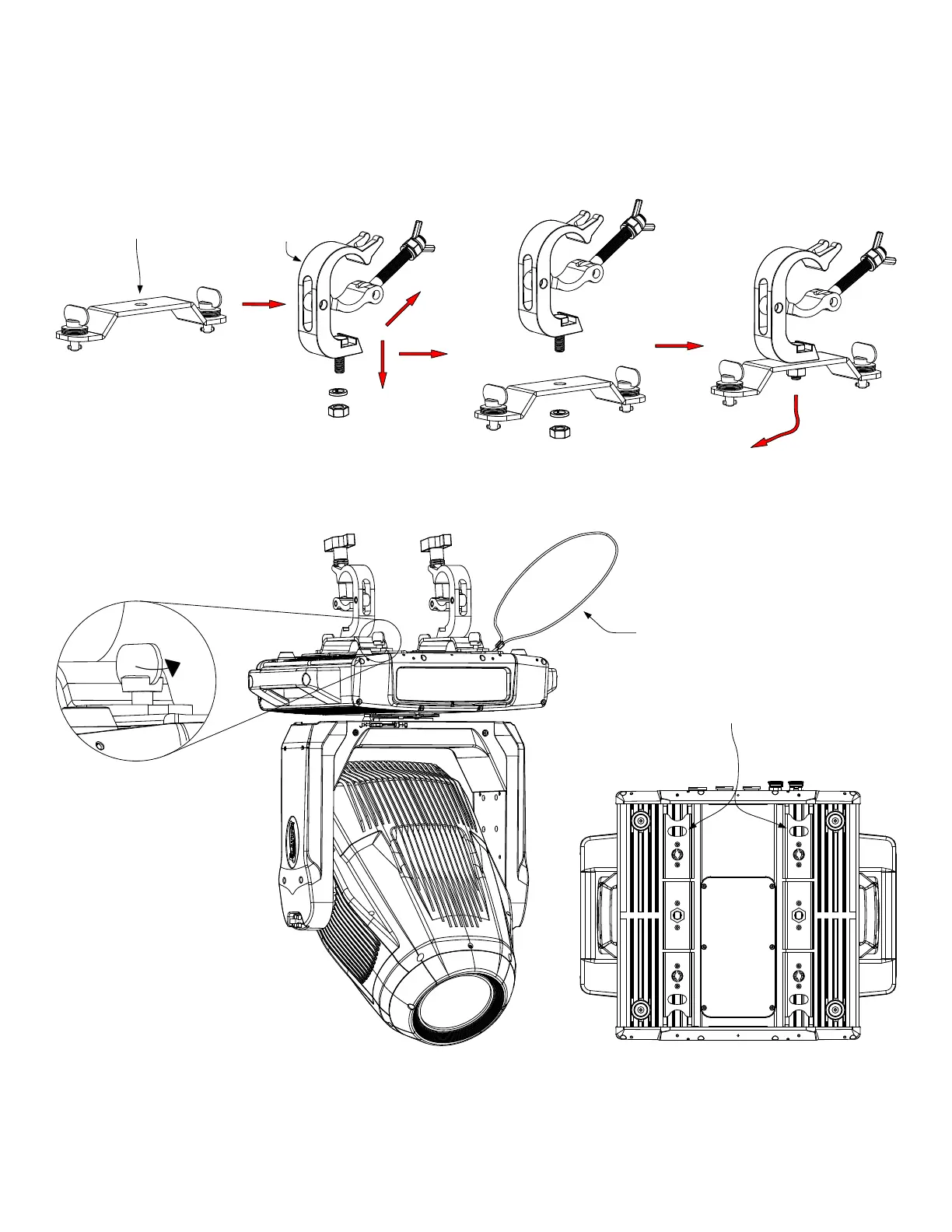

OMEGA BRACKETS WITH CLAMP INSTALLATION
Insert the Omega Brackets into the matching holes on the bottom of the xture. Secure the Omega
Brackets to the xture by turning each quick-lock fastener ¼ turn clockwise; making sure the fastener
is completely locked. Omega Brackets can be installed into the xture base as illustrated below.
1
Omega Bracket
2
Clamp
3
4
S A F E T Y C A B L E
ALWAYS ATTACH AN APPROPRIATELY RATED SAFETY CABLE WHENEVER INSTALLING
THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT FALL
IF THE CLAMP FAILS.
Safety Cable
MOUNTING THE FIXTURE ON A TRUSS USING CLAMPS WITH OMEGA BRACKETS
When mounting the xture to a truss, be sure to secure an appropriately rated professional
grade rigging clamp to the included Omega Brackets using an M10 screw tted through the
center hole of the Omega Brackets. The xture provides built-in rigging points for a SAFETY
CABLE (not included). Be sure to only use one of the designated rigging points for the safety
cable and never secure a safety cable to a carrying handle.
Safety Cable
Attachment Points
