GENERAL FEATURES.
Manufacturer ......................................................................................................................................................ELCA S.r.l.
Radio Remote Control System type .......................................................................................................................BRAVO
Working frequency ..........................................................................................................................915.050 - 927.950 MHz
Channel spacing used ............................................................................................................................................. 50 kHz
Working temperature .......................................................................................................................................-25 - +55 °C
Storage and transportation temperature...........................................................................................................-25 - +55 °C
Operating range......................................................................................................................................................... 100 m
Command response time ..................................................................................................................................... < 130 ms
Active Stop time....................................................................................................................................................... < 130 s
Passive Stop time (maximum stop time) .................................................................................................................. < 0,5 s
Performance Level of the safety functions in accordance with EN ISO 13849-1
Protection of .........................................................................................................................PL d stop (wiring with 2 wires)
Protection of .........................................................................................................................PL e stop (wiring with 4 wires)
Protection from unintended movements from the rest position of the Joysticks (UMFS) ............................................ PL d

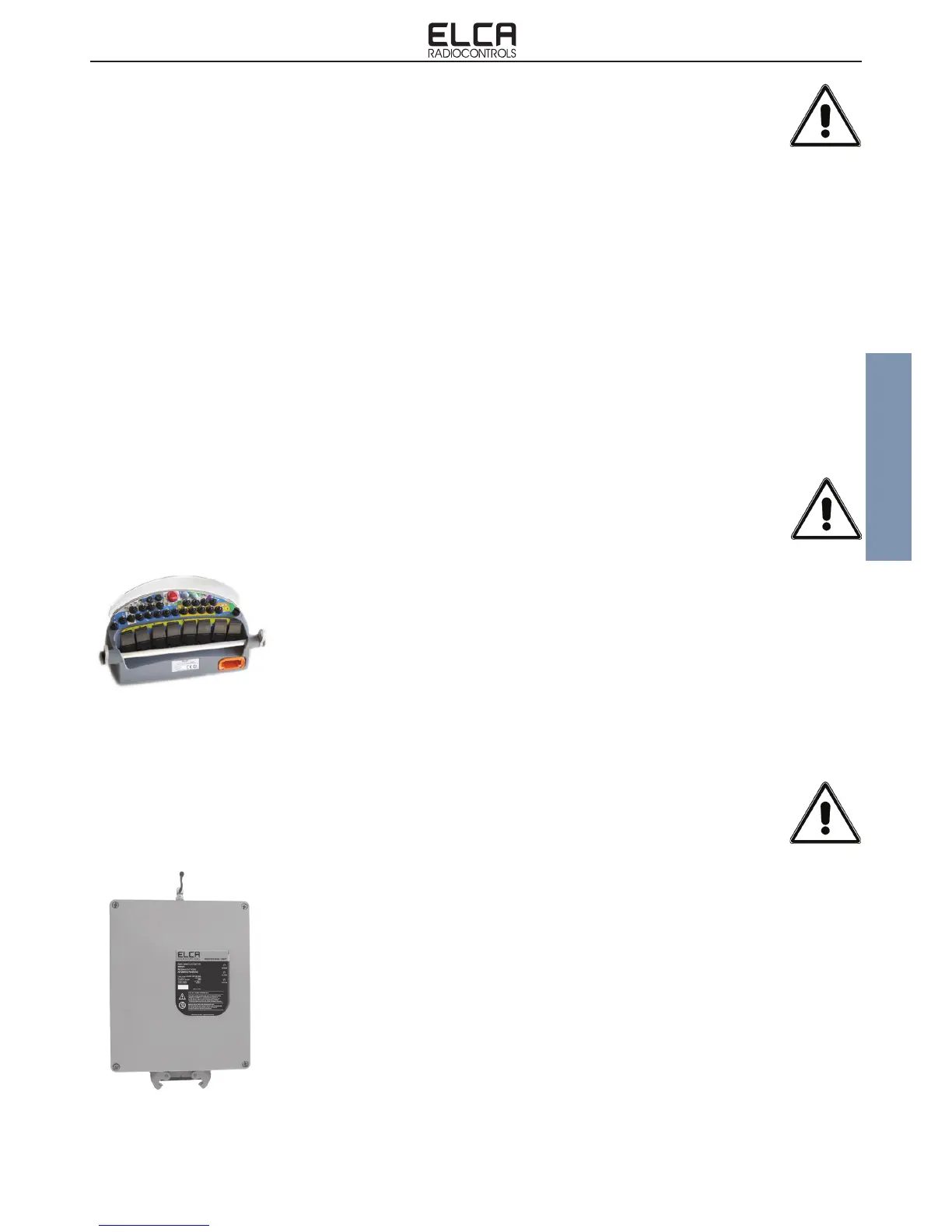

3.1 GENERAL FEATURES
3. TECHNICAL DATA
Model ................................................................................................... AT BRAVO-FUNK-915
Transceiver radio module .........................................................................................RTA-AU1
Incorporated ...............................................................................................................antenna
Distance between the antenna and the human body ................................................. > 20 cm
Battery pack....................................................................................power supply: Li-ion 7.4 V
Current draw .............................................................................................................< 130 mA
Absorbed power ........................................................................................................... < 1 W
RF effective radiated power .............................................................................. < 25 mW ERP
Run time with fully charged battery at 20 °C ......................................approximately 20 hours
Run time after battery low warning: ................................................ approximately 10 minutes
Protection degree .............................................................................................................IP65
Dimensions ................................................................................................ 420x200x250 mm
Weight ..........................................................................................................................2600 g
Model .................................................................................................. AR BRAVO-FUNK-915
Transceiver radio module .........................................................................................RTA-AU1
External .....................................................................................................................antenna
DC power supply: .................................................................................................... 8-30 V ]
Maximum absorbed current ............................................................................................ < 1 A
Absorbed power ........................................................................................................... < 5 W
STOP contacts protection fuses (MINI® Blade Fuse) ....................................... F3, F4= 7.5 A
SAFETY contacts protection fuse (MINI® Blade Fuse) .......................................... F5 = 7.5 A
SAFETY contacts protection fuse (MINI® Blade Fuse) .......................................... F1 = 3.0 A
Power supply protection fuse (MINI® Blade Fuse) ................................................ F2 = 7.5 A
Maximum permitted voltage ....................................................................................... 30 V ]
Maximum rated current of proportional outputs in current (PWM)......................... 2 A (30 ])
Maximum rated current of ON/OFF outputs .......................................................... 4 A (30 ])
Maximum rated current of proportional outputs in voltage ............................10 mA (28 V ])
Protection degree ............................................................................................................ IP65
Dimensions ................................................................................................ 230x280x110 mm
Weight ..........................................................................................................................1200 g
3.2 AT BRAVO-FUNK-915 TRANSMITTING UNIT FEATURES
3.3 RECEIVING UNIT FEATURES
