ENG man BRAVO-FUNK-915 00 BRAVO-FUNK-915 Radio remote control system
- Page 26 -

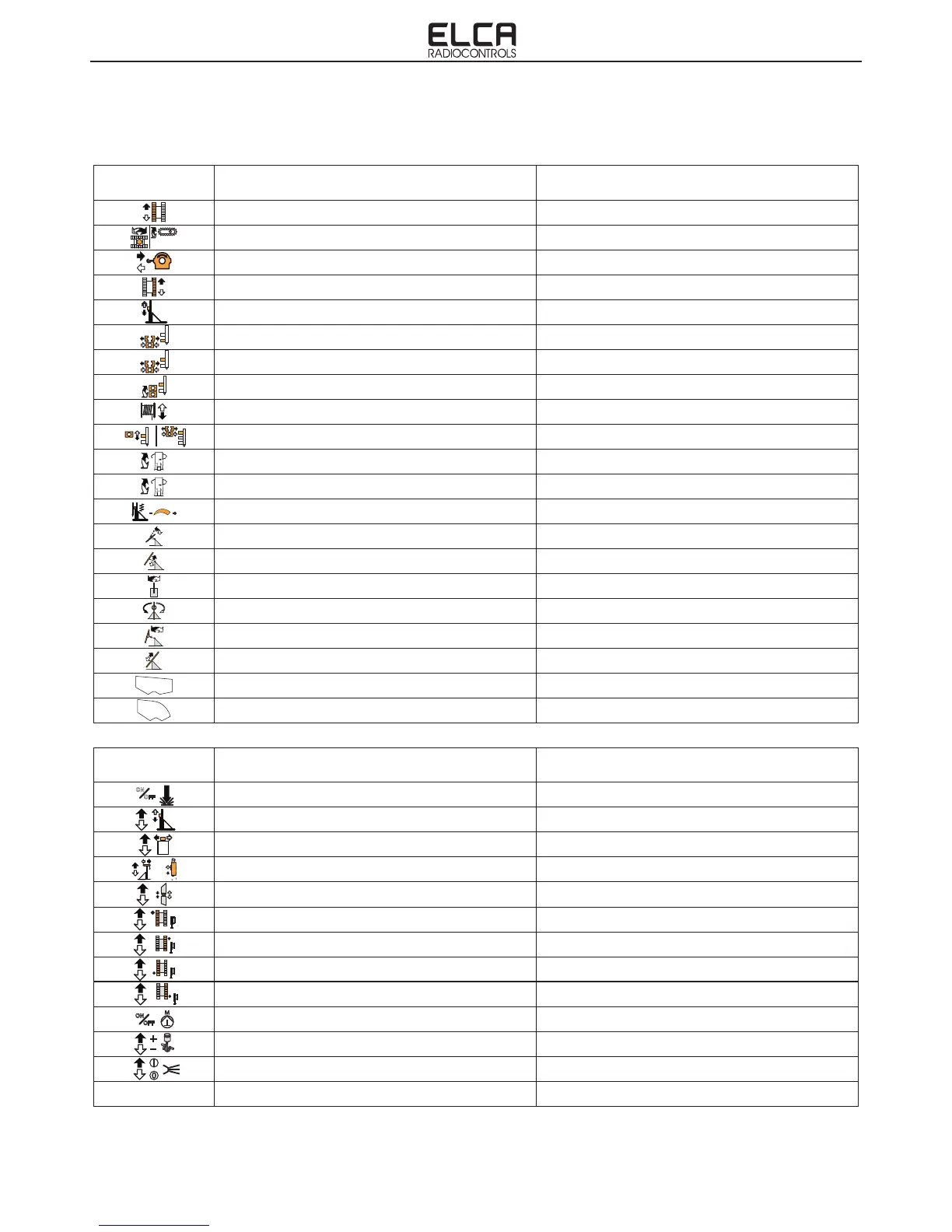

10. CORRESPONDENCE OF FUNK UNIT FUNCTIONS FOR DRILLING MACHINE
SYMBOL
Anl. Left Track
Anl. Slewing ring / Oscillation Track
Anl. Towing Winch
Anl. Right Track
Anl. Rapid Feed
Anl. Lower Clamp
Anl. Upper Clamp
Anl. Unscrewing unit
Anl. Winch
Anl. Extractor carriage / 3^ Clamp
Anl. Rotary 1° head
INDICATION ON THE JUNCTION BOARD
Anl. Rotary 2° head
2
Anl. Feed
-
+
FUNCTION (ANALOGUE)
SYMBOL
Percussion On/Off
Normal Feed Up/Down
Slidramatic Left/Right
In / Out Beak - Lower / Raise Cap
Screw / Unscrew
Front LH Stab. Up/Down
Front RH Stab. Up/Down
Rear LH Stab. Up/Down
Rear RH Stab. Up/Down
Pump On / Off
ON
OFF
FUNCTION (ON/OFF)
INDICATION ON THE JUNCTION BOARD
Anl. Boom Oscillation
Anl. Mast Jambing
Anl. Boom lifting
Anl. Mast Rotation
Anl. Mast Inclin.
Anl. Mast Sliding
Anl. Free-1
Anl. Free-2
ON
OFF
M
+
-
RPM +/-
Gate Valve Open / Close
General EV
1. Anl. Cingolo SX
2. Anl. Ralla / Brandeggio
3. Anl. Verricello
4. Anl. Cingolo DX
5. Anl. Avanzam. Rapido
6. Anl. Morsa Inf.
7. Anl. Morsa Sup.
8. Anl. Svitatore
9. Anl. Argano
10. Anl. Carr. Estr. / 3^Morsa
11. Anl. Rotary
14. Anl. JOY1-POSIZ.
15. Anl. JOY2-POSIZ.
16. Anl. JOY3-POSIZ.
17. Anl. JOY4-POSIZ.
18. Anl. JOY5-POSIZ.
19. Anl. JOY6-POSIZ.
21. Anl. JOY7-POSIZ.
20. Anl. JOY8-POSIZ.
12. Anl. Rotary2
13. Anl. Testa Spinta
22. Percussione
23. Avanzam.Testa
24. Spostam.Testa
25. Becco / Cuffia
26. Avvita / Svita
27. Stabil.Ant.Sx
28. Stabil.Ant.Dx
29. Stabil.Post.Sx
30. Stabil.Post.Dx
Pompa
GAS +/-
Saracinesca Apre / Chiude
31. Ev. Gener.
