ELCA BRAVO - TRANSMITTING UNIT FUNCTIONAL CONTROL

ENG man BRAVO-FUNK-915 00 BRAVO-FUNK-915 Radio remote control system
- Page 19 -
ENGLISH
7.2 TRANSMITTING UNIT FUNCTIONAL CONTROL

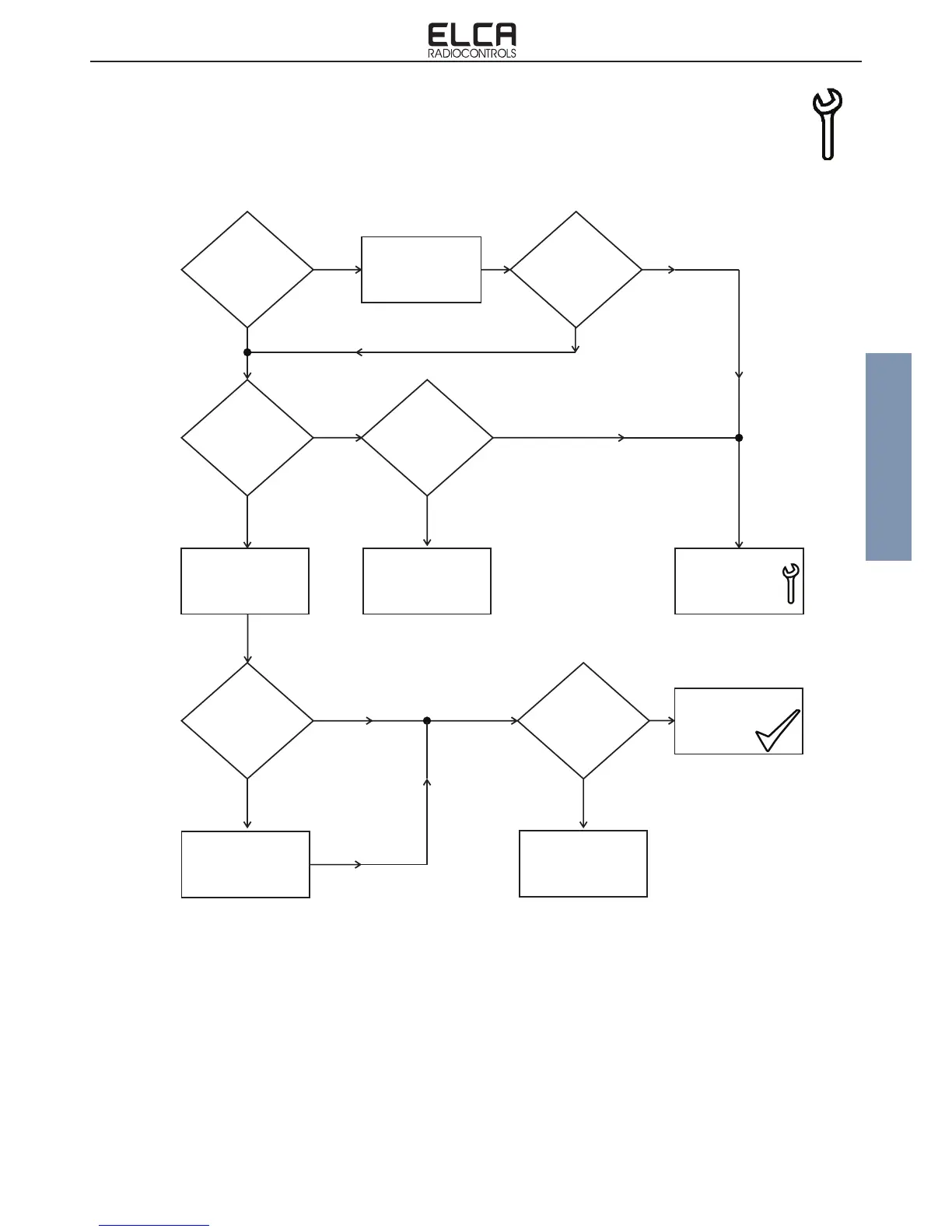

Follow the diagram below (starting from the top left corner) to solve or identify the problem.
WITH THE
KEY SELECTOR
ON 1 DOES THE
Battery Check LED
FLASH GREEN
OR RED?
YES
NO
CHECK THE RECEIVER
OPERATION.
(see Paragraph 7.3)
CHECK COMPLETED
NO
YES
YES
NO
YES
CONTACT
ASSISTANCE
SERVICE
YES
NO

DOES THE
Battery Check LED
FLASH GREEN
OR RED?
RADIO CONNECTION
FAILURE: TRANSMITTER
SELF-DIAGNOSIS
(see Paragraph 7.1)
NO
PRESS START FOR
A FEW SECONDS
DOES THE
Battery Check LED
FLASH SLOWLY
GREEN?
NO RADIO LINK
(see Paragraph 7.1)
IS RADIO REMOTE
CONTROL WORKING
NOW?
YES
NO
REPLACE THE
BATTERY OR CLEAN
THE CONTACTS
DOES THE
Battery Check LED
LIGHT OR
FLASH RED?
WITH THE
KEY SELECTOR
ON 1 DOES THE
Battery Check LED
FLASH GREEN
OR RED?
NOTE:
If the radio remote control operates in a discontinuous manner, see section: REPEATED RADIO CONNECTION FAILURES
in Paragraph 7.1.
