Delete mode:
The delete mode removes from the receiver memory ALL access codes of transmitters associated.
Note
1
: If a transmitter becomes unserviceable and needs to be replaced, there is no need to delete existing access codes
unless all available access codes have been used.
Note
2
: If no access codes are stored in the receiver, the STATUS light blinks 8 times quickly, blinks once slowly, stays off
for 3-4 seconds and then repeats the sequence.
NO
REMOVE POWER FROM
RECEIVER
YES

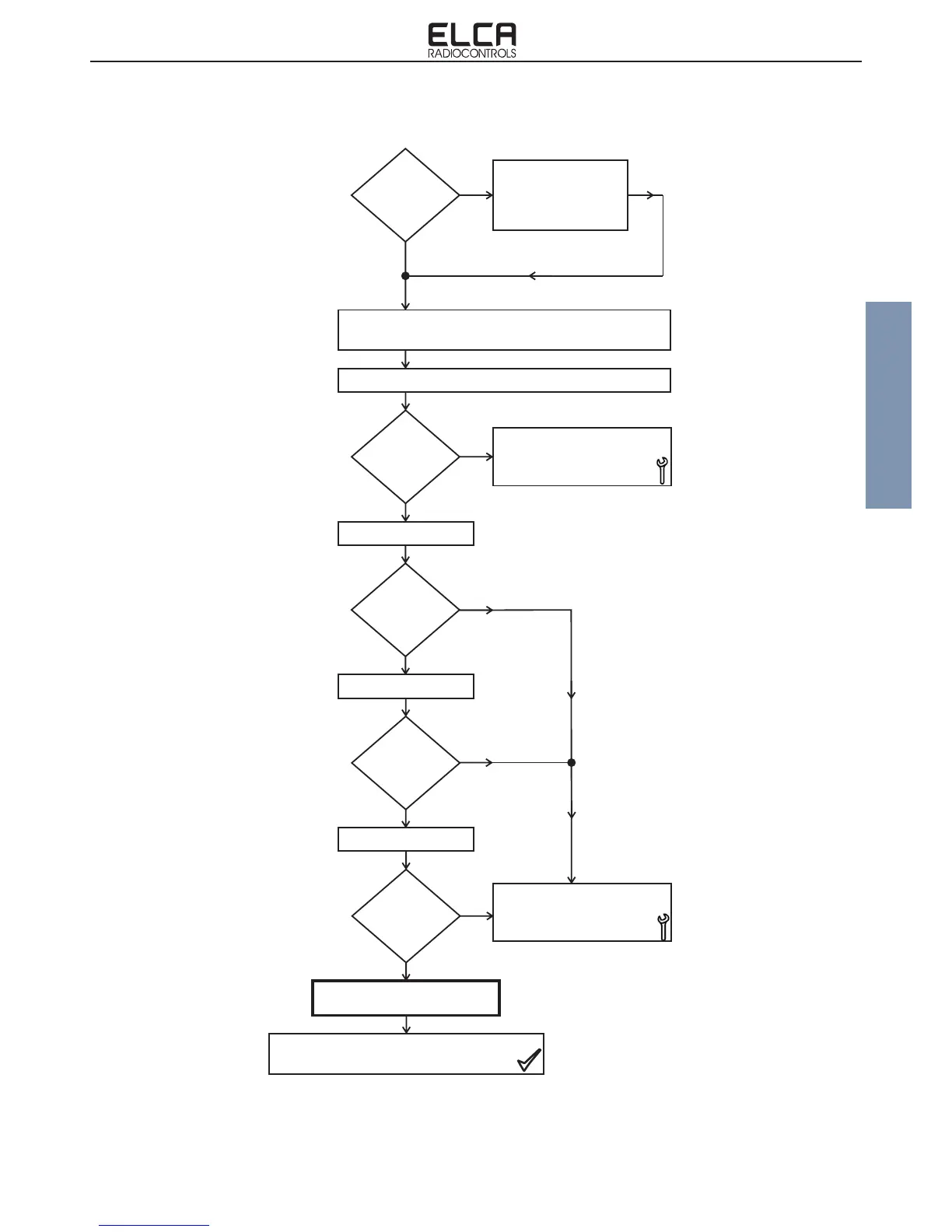

OPEN RECEIVER COVER AND NOTE SETTINGS OF MODULE
MICROSWITCHES
SET DIP 1,2,3 TO OFF AND DIP 4 TO ON. POWER ON RECEIVER.
IS STATUS LIGHT
ON STEADY?
YES
NO
REMOVE POWER SUPPLY FROM RECEIVER AND SET
MICROSWITCHES.
START LEARN PROCESS.
SET DIP 1 TO ON.
IS LEARN LIGHT
ON STEADY?
YES
SET DIP 1 TO OFF.
DID LEARN
LIGHT BLINK 5
TIMES?
YES
SET DIP 4 TO OFF.
DID STATUS
LIGHT BLINK 9
TIMES?
YES
NO
ALL CODES WERE DELETED
WARNING!
DELETION FAILED: REPEAT
PROCEDURE.
IS RECEIVER
POWERED ON?
CHECK RECEIVER POWER
SUPPLY AND SETTING OF DIP 4
AND REPEAT PROCEDURE
NO
NO
