ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI
- Page 8 -
2.6 STORING ACCESS CODES
In order to associate a transmitter to receiver, the transmitter access code needs to be stored in the receiver memory. The
access code is a unique code set at the factory that prevents the receiver installed on the machinery from responding to
any unauthorised transmitters. When several transmitters are registered in a receiver’s memory, the receiver will handle
transmitters on a rst-come-rst-served basis and the current transmitter will have exclusive access to the receiver until
transmission is terminated. Up to 20 access codes can be stored.

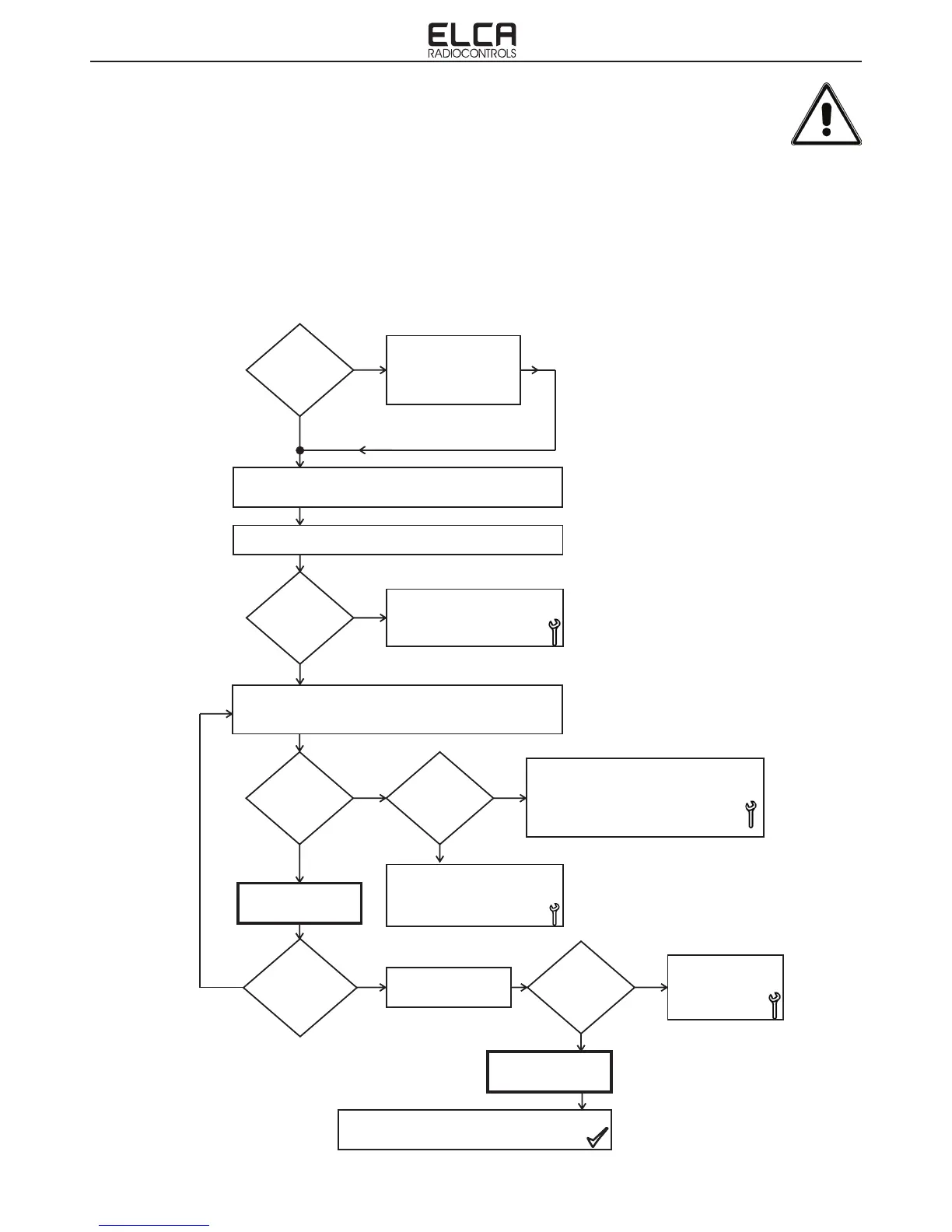

Learn mode:
The learn mode allows you to associate one or more new transmitters to the receiver.
YES
WARNING!
LEARN ERROR (for instance ATTEMPT TO
STORE CODE #21).
DELETE IDENTIFIER CODES AND THEN
STORE REQUIRED ACCESS CODES.
CODE STORED
YES
SET DIP 4 TO OFF
CODE STORED
REMOVE POWER SUPPLY FROM RECEIVER
AND SET MICROSWITCHES
WARNING!
ENTERED CODE WAS
NOT STORED: REPEAT
PROCEDURE.
NO
REMOVE POWER FROM
RECEIVER
YES
OPEN RECEIVER COVER AND NOTE SETTINGS OF MODULE
MICROSWITCHES
SET DIP 1,2,3 TO OFF AND DIP 4 TO ON. POWER ON
RECEIVER.
IS STATUS LIGHT
ON STEADY ?
YES
NO
IS RECEIVER
POWERED ON?
YES
DID LEARN LIGHT
BLINK 5 TIMES?
NO
IS LEARN LIGHT
BLINKING
QUICKLY?
ANY OTHER AT /
CODE TO
MATCH/STORE?
NO
YES
DID STATUS LIGHT
GO OUT ?
NO
ACTIVATE TRANSMITTER TO BE MATCHED TO RECEIVER
(COMMAND T12).
KEEP ANY OTHER TRANSMITTERS SWITCHED OFF.
CHECK RECEIVER POWER
SUPPLY AND SETTING OF DIP 4
AND REPEAT PROCEDURE
NO
WARNING! LEARN ERROR (FAILED
TO RECEIVE COMMAND TX OR
CODE ALREADY STORED) REPEAT
PROCEDURE
