ELCA MITO - 2.4 TRANSMITTING UNIT AT MITO-MINI-915

ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI
- Page 4 -
GENERAL FEATURES.
• Battery charge indication.
CONTINUOUS and DISCONTINUOUS Transmission mode (CT and DT).
When the battery is charged, the Check light blinks quickly (1 ash per second).
When battery charge is close to the limit under which safe command transmission is not ensured, the Check light
will blink more slowly than usual (approximately 1 ash every 2 seconds) for approximately 10 minutes before the
transmitter switches off. The transmitter will not switch on as long as battery charge is not sufcient to ensure safe
command transmission. Keeping the battery charged helps to increase its life cycles..
• Two different transmission modes:
CONTINUOUS Transmission mode (CT). DISCONTINUOUS Transmission mode (DT).
Command T12 (Start) activates radio transmission.
Command T1 (Stop) terminates radio transmission
and any output commands being sent by the receiver.
Transmission may also terminate automatically after 3 or
10 minutes of system inactivity, depending on preset auto-
shutdown time (see Paragraph 3.3).
Note: The START command involves turning on the
transmitter and the activation of the relays T12 and T1 on
the receiver. T1 (STOP) remains held until the end of the
transmission.
Operating any command when the transmitter is off will
activate radio transmission.
Commands T12 and T1 lose their Start / Stop signicance
and operate just like any other command. Transmission
terminates after 10 or 180 seconds of system inactivity,
depending on preset auto-shutdown time (see Paragraph
3.3).

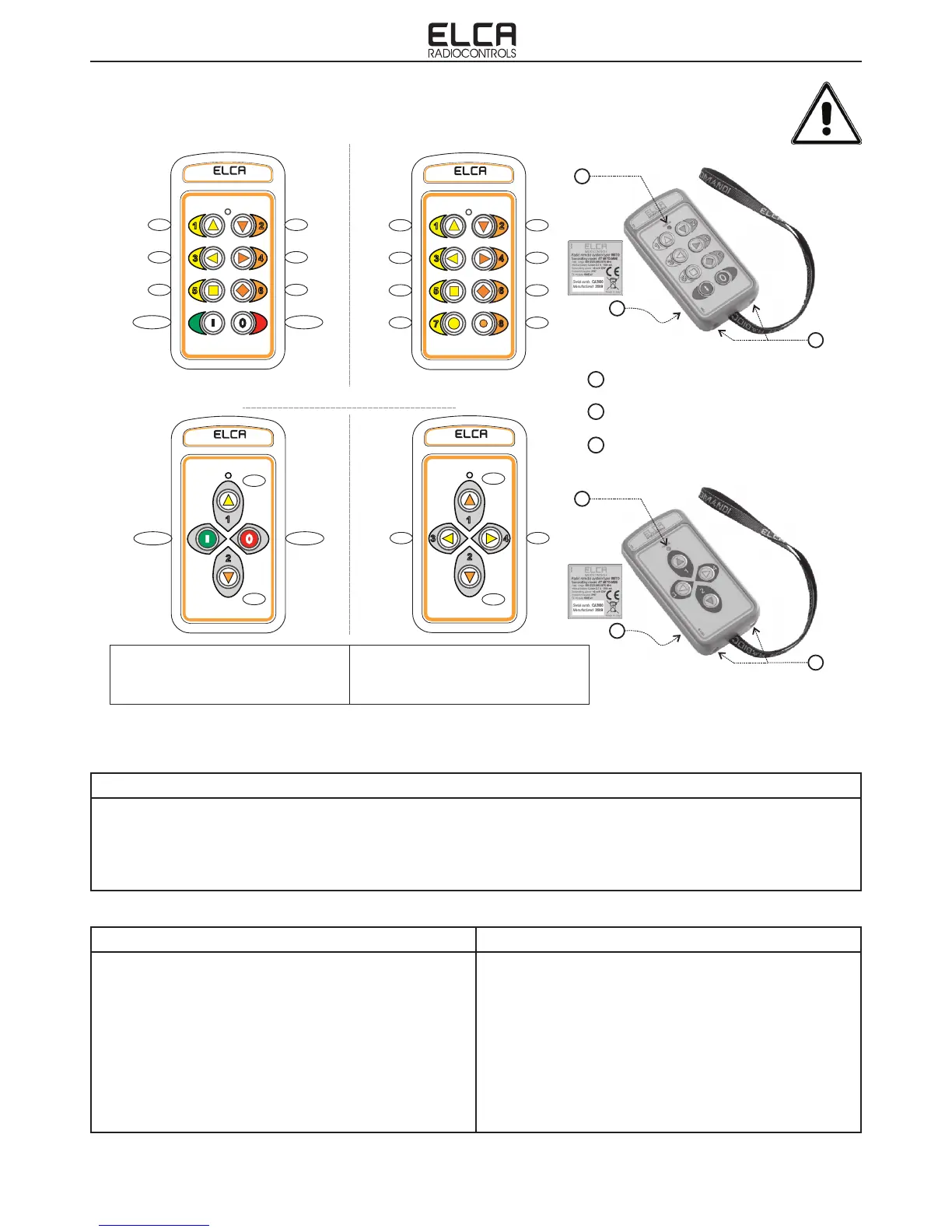

2.4 TRANSMITTING UNIT AT MITO-MINI-915
1
3
SPIA DI CHECK
CONTATTI BATTERIA
2
TARGA DATI APPARATO TRASMITTENTE
(sul retro)
Configurazioni a
TRASMISSIONE CONTINUA
(CT - Continuos Transmission)
con Start/Stop
Configurazioni a
TRASMISSIONE TEMPORANEA
(DT - Discontinuos Transmission)
senza Start/Stop
CHECK
T577A
1
1
2
2
START
T3
RADI
OCO
NT
R
O
LS
T2
STOP
CHECK
T577B
1
2
1
2
4
4
3
3
RADI
OCO
NT
R
O
LS
T3
T2
T12 T1
T11
RADI OCO NTR O LS
T10
T9 T4
T3
T2
T12 T1
CHECK
1
3
5
1
3
5
6
2
6
4
2
4
7
7
8
8
T471
START
T11
RADI OCO NT
R
O LS
T10
T9 T4
T3
T2
STOP
CHECK
6
1
2
6
4
3
5
1
3
5
2
4
T394
DISPOSIZIONI COMANDI 8 TASTI
DISPOSIZIONI COMANDI 4 TASTI
2
3
1
2
3
1
CHECK LIGHT
TRANSIMITTING UNIT RATING PLATE
(on the back side)
BATTERY CONTACTS
CONFIGURATIONS WITH 4 BUTTONS
CONFIGURATIONS WITH 8 BUTTONS
CONTINUOUS Transmission mode
(CT)
with Start/Stop buttons
DISCONTINUOUS Transmission mode
(DT)
without Start/Stop buttons
