T2
EXAMPLE: programming frequency group 2
T11
RADI
OCO
NT
R
O
LS
CHECK
STEP 1
access to
programming mode
T1
T12
RADI
OCO
NT
R
O
LS
CHECK
STEP 2
access to frequency
range submenu
RADI
OCO
NT
R
O
LS
CHECK
STEP 3
set frequency
group 2
T4
2
1

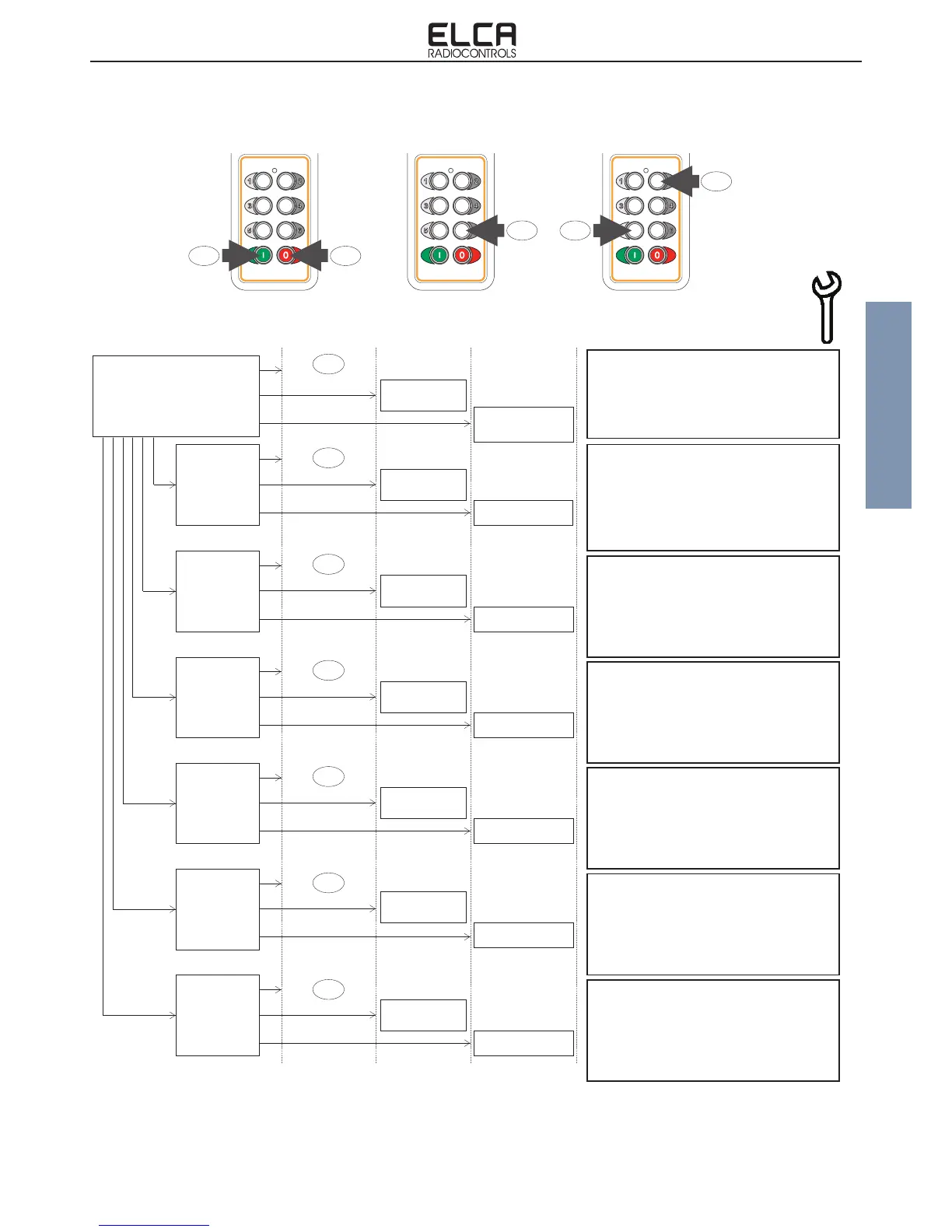

3.3 AUTO-SHUTDOWN TIME PROGRAMMING
AUTO-SHUTDOWN
TIME
(submenu2)
and T2 or T3 or T4
or T9 or T10 or T11
FROM MAIN MENU
ACTIVATE T3
SUBMENU ACCESSED.
HERE YOU CAN SET 6 DIFFERENT AUTO-SHUTDOWN
TIMES AS SPECIFIED BELOW.
IF NO SELECTION IS MADE WITHIN 10 SECONDS,
SYSTEM RETURNS TO MAIN MENU.
10sec
FOR DT ONLY (2)
FROM SUBMENU2
ACTIVATE T4
FROM SUBMENU2
ACTIVATE T9
10min
(default)
FOR CT ONLY (3)
Disabling
auto-shutdown
FOR CT ONLY (3)
DISCONTINUOUS TRANSMISSION WITH 10-SEC
AUTO-SHUTDOWN,
ANY CHANNEL ACTIVATES TRANSMISSION,
TRANSMISSION TERMINATES AFTER
10 SECS OF INACTIVITY.
AUTOMATIC RETURN TO MAIN MENU;
WAIT 10 SECONDS AND SYSTEM EXITS MAIN MENU.
3min
FOR CT ONLY (3)
NOTE:
(1) Continuous Transmission (CT), with "START/STOP Option": set mother board microswitches
as follows: dip1=Off and dip2=Off;
(2) Discontinuous Transmission (DT), channels T1 and T12 serve as common function commands: set mother board
microswitches as follows: dip1=On and dip2=Off;
(3) Continuous Transmission (CT): set mother board microswitches as follows: dip1=Off and dip2=Off;
[WARNING] To switch from Continuous Transmission (CT) mode to Discontinuous Transmission (DT) mode and vice versa
you must setup the motherboard: contact technical support.
AUTO-SHUTDOWN SET TO 3 MINUTES:
START CHANNEL INITIATES RADIO CONNECTION,
CONNECTION TERMINATES WHEN STOP
IS ACTIVATED OR AFTER 3 MINUTES OF INACTIVITY.
AUTOMATIC RETURN TO MAIN MENU;
WAIT 10 SECONDS AND SYSTEM EXITS MAIN MENU.
AUTO-SHUTDOWN SET TO 10 MINUTES:
START CHANNEL INITIATES RADIO CONNECTION,
CONNECTION TERMINATES WHEN STOP
IS ACTIVATED OR AFTER 10 MINUTES OF INACTIVITY.
AUTOMATIC RETURN TO MAIN MENU;
WAIT 10 SECONDS AND SYSTEM EXITS MAIN MENU.
AUTO-SHUTDOWN DISABLED:
START CHANNEL INITIATES RADIO CONNECTION,
CONNECTION TERMINATES WHEN STOP IS ACTIVATED.
AUTOMATIC RETURN TO MAIN MENU;
WAIT 10 SECONDS AND SYSTEM EXITS MAIN MENU.
FROM SUBMENU2
ACTIVATE T10
FROM SUBMENU2
ACTIVATE T11
T3
T4
T9
T10
T11
START/STOP
Option
FOR CT ONLY (1)
FROM SUBMENU2
ACTIVATE T2
BLINKS 3 TIMES
AT 1Hz
START/STOP OPTION LETS YOU START /STOP
TRANSMISSION FROM BUTTON T12.
T12 GIVES START COMMAND ON FIRST PULSE AND
STOP COMMAND ON SECOND PULSE.
THIS OPTION IS NOT COMPATIBLE WITH
DISCONTINUED TRANSMISSION MODE.
AUTOMATIC RETURN TO MAIN MENU; WAIT
10 SECONDS AND SYSTEM EXITS MAIN MENU.
T2
180 sec
FOR DT ONLY (2)
FROM SUBMENU2
ACTIVATE T3
DISCONTINUOUS TRANSMISSION WITH 180-SEC
AUTO-SHUTDOWN.
ANY CHANNEL ACTIVATES TRANSMISSION,
TRANSMISSION TERMINATES AFTER
180 SECS OF INACTIVITY.
AUTOMATIC RETURN TO MAIN MENU;
WAIT 10 SECONDS AND SYSTEM EXITS MAIN MENU.
T3
BLINKS
2 QUICK BLINKS
WITHIN 1 SEC.
(depending on set time)
CHANNELS
TO BE USED
WHAT TO DO
CHECK LIGHT
BLINKS 3 TIMES
AT 1Hz
BLINKS 3 TIMES
AT 1Hz
BLINKS 3 TIMES
AT 1Hz
BLINKS 3 TIMES
AT 1Hz
BLINKS 3 TIMES
AT 1Hz
