User Menu
– Turn the selector to scroll the zones.
– Press the selector
to select the zones in which to copy
the time schedule. The selected zones will be highlighted
by a green border.
– To deselect a zone, press the selector
once again.
– Turn the selector
to navigate to “Continue”, then press
the selector to confirm.
– The system will return to the page for selecting the set-
point temperature.

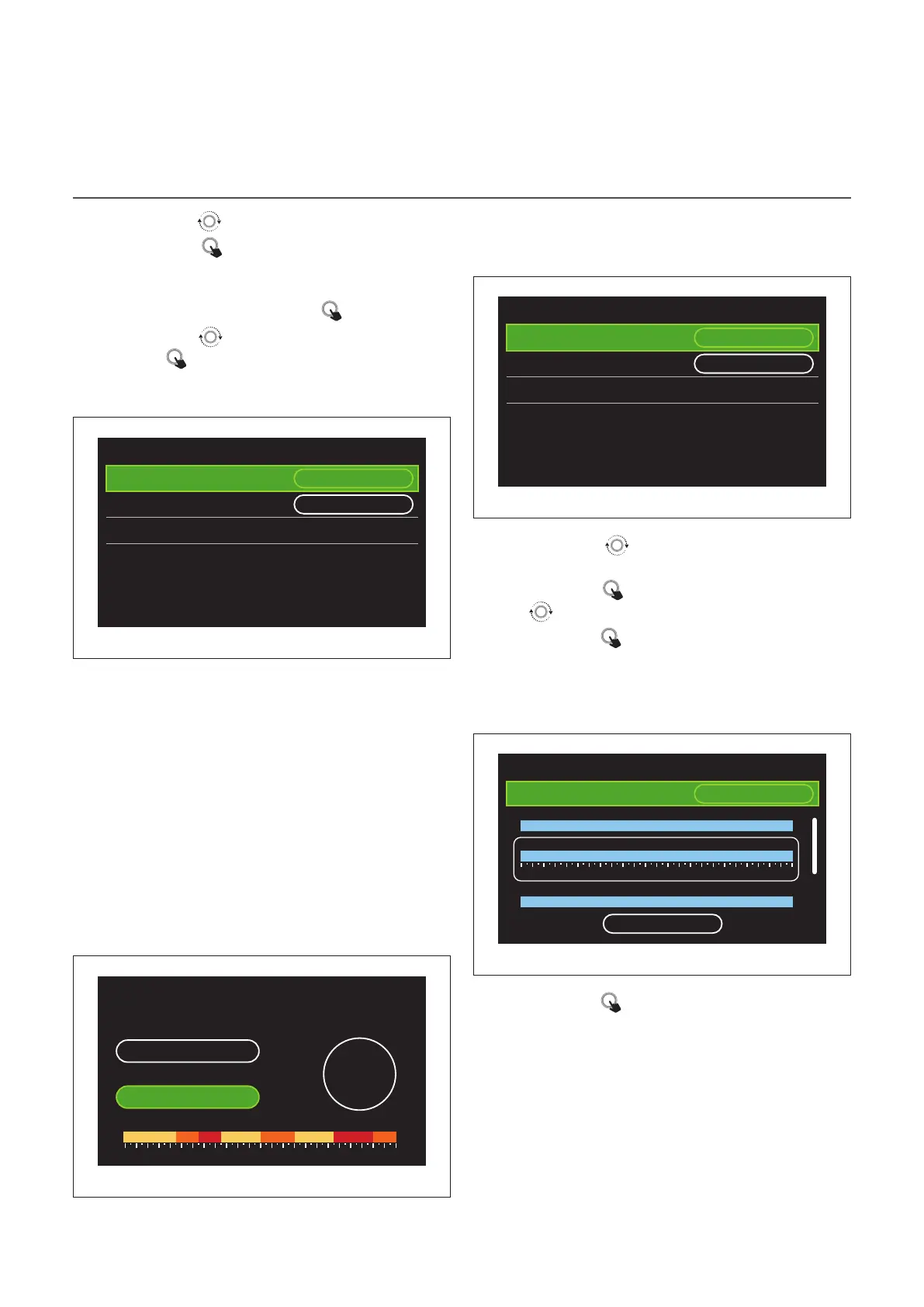

Zone 1
Set comfort temperature
20,0°C
Set reduced temperature 16,0°C
Set time program >
Fig. 33
HEATING/COOLING TIME SCHEDULE  MULTILEVEL
In the multi-level time scheduling, the sequence of opera-
tions is similar to the two-level process (refer to the paragraph
“Heating/Cooling time scheduling - 2 levels”), except for the
following steps:
– The page for setting the comfort and reduced tempera-
tures will not be displayed.
– In the page for defining the time slot you can select a dedi-
cated set-point value. The range is 10° - 30°C for each of the
time slots created.
– Up to 12 daily time slots can be selected.
Defining the time slot
Zone 1
Scenario Free Sunday
Start 04:30
18°
,0
End 06:30
16,0° 18,0° 19,0°22,0° 15,0° 15,0° 22,0° 16,0°
0 2 4 6 8 10 12 16 20 14 18 22 24
Fig. 34
DHW TIME PROGRAM
Defining the comfort and reduced set-point tempera-
tures
Domestic hot water
DHW comfort setpoint temp.
55°C
DHW reduced setpoint temp. 35°C
Set time program >
Fig. 35
– Turn the selector
to navigate to “DHW comfort set-
point temp.” or “DHW reduced setpoint temp.”.
– Press the selector
to enter the edit mode. Turn the se-
lector to define the temperature set-point.
– Press the selector
to confirm.
– The “Set time program” allows the user to define the day of
the week to be scheduled.
Selecting the type of time schedule: free or pre-set
DHW
Scenario
Free
55°
55°
0 2 4 6 8 10 12 16 20 14 18 22 24
Sunday
Monday
Tuesday
55°
Save
Fig. 36
– Press the selector
to enter the edit mode.
– Select “Free” to proceed with the creation of a customised
weekly schedule, otherwise select one of the pre-set pro-
files:
– "Family"
– "No lunch"
– "Midday"
– "Always active"
– "GREEN"
