11/2010 - Art. Nr. 4200 1029 8600A10
Operation
Pump
The pump is a gear pump. It must be
connected as a two-line pump via a
bleed filter. For the connection of the fuel
oil tank and the bleed filter, it is better to
use the single line option. An intake filter
and two oil pressure regulators are
integrated in the pump. Pressure
gauges for pressure measurements 4
and negative pressure measurements 5
must be connected before the
equipment is commissioned.

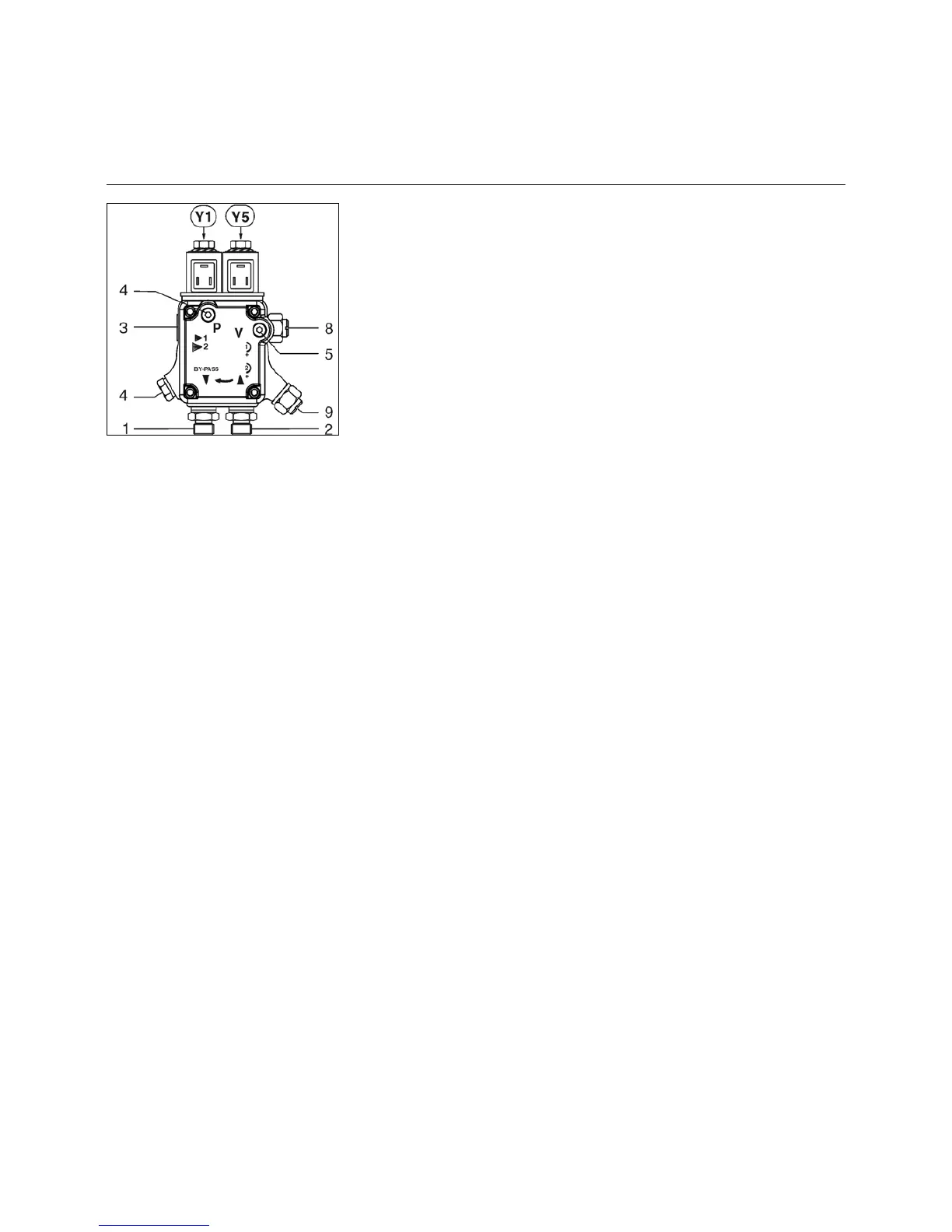

1 Return connection G 1/4
2 Vacuum connection G 1/4
3 Nozzle supply line
connection G1/8
4 Pressure gauge connection
5 Vacuum gauge connection
8 Pressure setting, 1st stage
9 Pressure setting, 2nd stage
Y1 Solenoid valve, 1st stage
Y5 Solenoid valve, 2nd stage
