9-44
HOW TO USE YOUR CAMPERVAN’S EQUIPMENT
WING OMNI-DIRECTIONAL TV
ANTENNA
Operating Instructions
1) Switch on the amplifier using the on/off
switch.
2) Turn the dB dial of the amplifier clockwise
to increase the gain of the TV signal
received.
3) Tune your television to a channel
available in the area where you are
located.

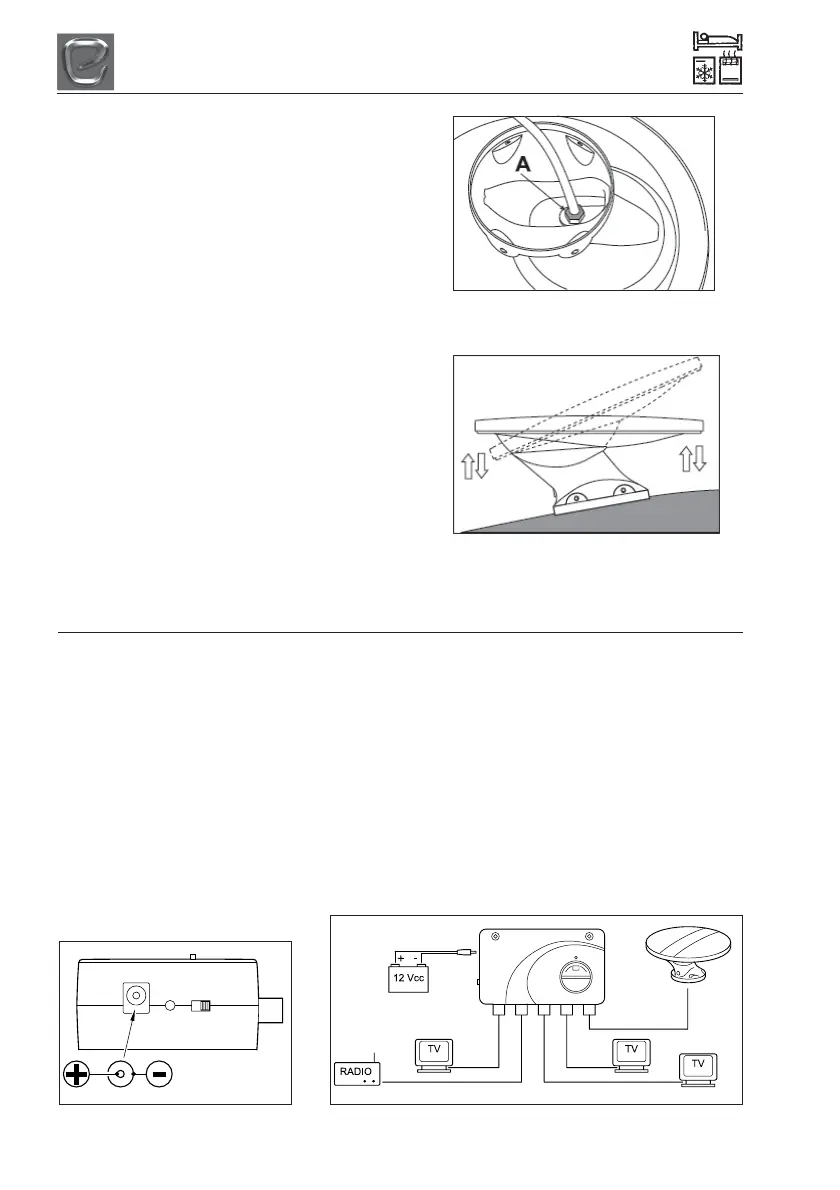

Changing the slant of the antenna
Should the roof of the vehicle not be flat, we
suggest you change the slant of the antenna
so that it is parallel to the ground when
installed. In fact, in order to give its best
performance, the la antenna must be:
1) Far from any obstacles which can hinder
the passage of TV signals (for example
trunk holders, air conditioners, etc.)
2) In a horizontal position. One should also
bear in mind that TV signals diminish
considerably beneath trees and reception
can be poor or even non existent.
Wiring connections
Band: 40-780 MHz
Max. Gain FM + DAB 25 dB/UHF 25 dB
Power supply: 12-24 Vdc
1) Cut the antenna cable to the proper length and apply the connector. Make sure no wire of the
braiding touches the core of the cable.
2) Fit the antenna connector into the relevant input of the amplifier and then connect the TV sets
using two pieces of cable.
3) Connect the AT 412 LTE to a 12 (or 24) Volt battery. Make sure you do not mix up the + and -
clamps.
4) Look at the TV set and adjust the sensitivity of the antenna by turning the “dB+” handle until
you get the best image.
Loosen the nut (A) slightly (by one quarter of
a turn).
:au the antenna on the roof and slant it until it
becomes horizontal. Tighten the screws (A)
again and fasten the antenna to the base.
If the amplifier is connected to the battery,
this switch allows to cut off the power
