HOW TO USE YOUR CARAVAN’S EQUIPMENT
(i) To operate the 12V systems for your caravan depress the left rocker switch.
(ii) To operate the pump for your water system depress switch marked with a tap symbol.
(iii) When the pump is running the neon light will illuminate.
(iv) When the left hand button is depressed the available battery Voltage will be displayed.
(v) The right hand button has no function on this control panel.
Water Tank (Option Only)
(i) To operate the 12V systems for your caravan depress the master switch adjacent to the pump
control switches.
(ii) To operate the pump for your water system depress the left hand rocker switch for operation from
an external water source. (Aqua roll or Water line).
Note: the right hand switch must be in the centre position.
(iii) To fill on the onboard water tank the left hand rocker switch must remain in the on position then
depress the right hand rocker switch to the EXT position. Once the tank is full the pump will
automatically switch off.
(iv) To use water from the on board water tank the left hand switch must remain in the on position then
depress the right hand switch to the INT position.
Digital readout
(v) When the left hand button is depressed the available battery voltage will be displayed.
(vi) When the right hand button is depressed the available water in the water tank will be displayed
(Note this is to be used as a guide only).

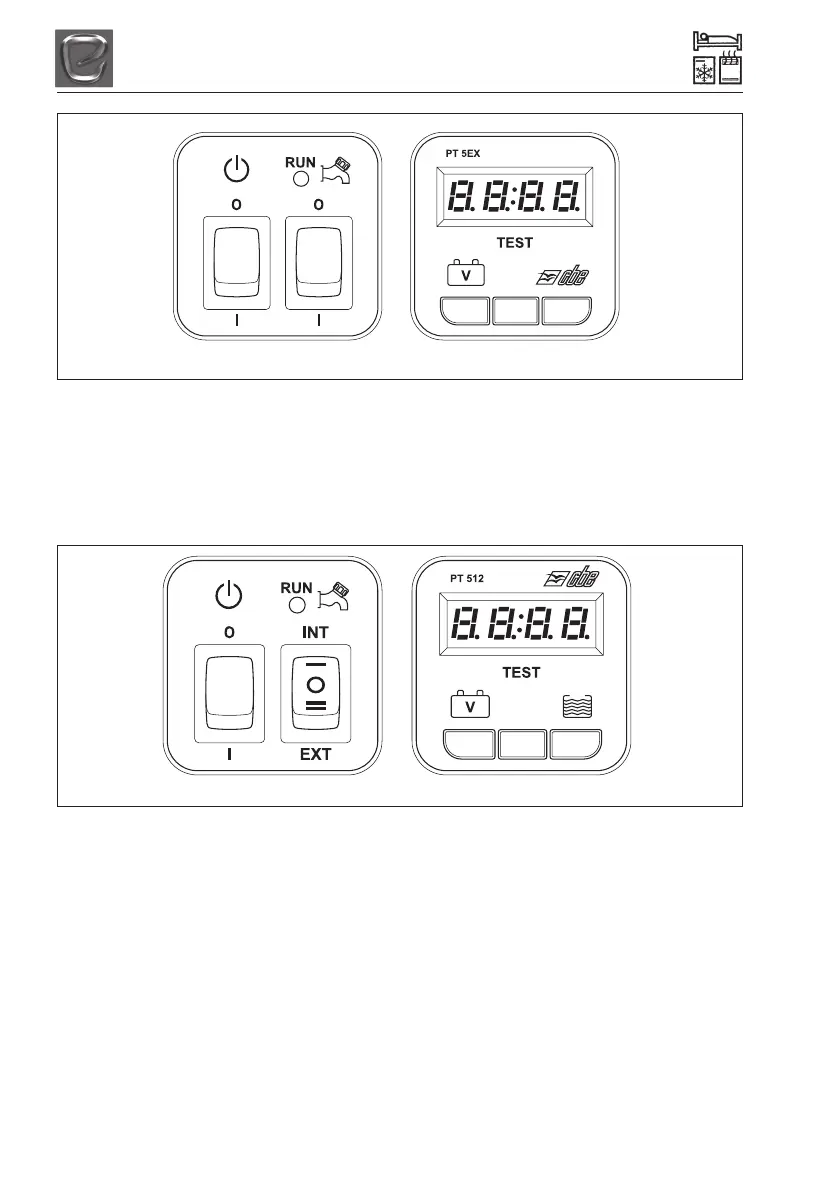

Control panel for caravans without a fixed water tank.
Control panel for caravans with an onboard water tank (Option)
