9-32
HOW TO USE YOUR CARAVAN’S EQUIPMENT
LIFT UP BED EXTENSIONS (TEMPEST
EB ONLY)
The centre dinette bed has lift up extensions and
these are operated by depressing the lever
behind the flap of the hinge. While pressing the
lever the extension flap can then be lifted into
place.
This lever must also be depressed in order to
lower the flap.
REMOVABLE DRAWER LOCKER
To remove from the caravan, first locate the two
retaining straps at the bottom rear of the unit,
the straps are released by pulling away and down
this releases the thumb catches. The locker can
now be removed for storage.
To secure the unit into the caravan, first place the
locker into position, then feed the straps though
the thumb locks, holding the strap taut push the
thumb lock so that is closes on the strap.
FRONT WRAP ROUND SEATING
(Option)
If you have purchased the wrap round seating
option for your new caravan please note that the
centre seat can be extended by the use of the
locking mechanism which can be found under this
seat.

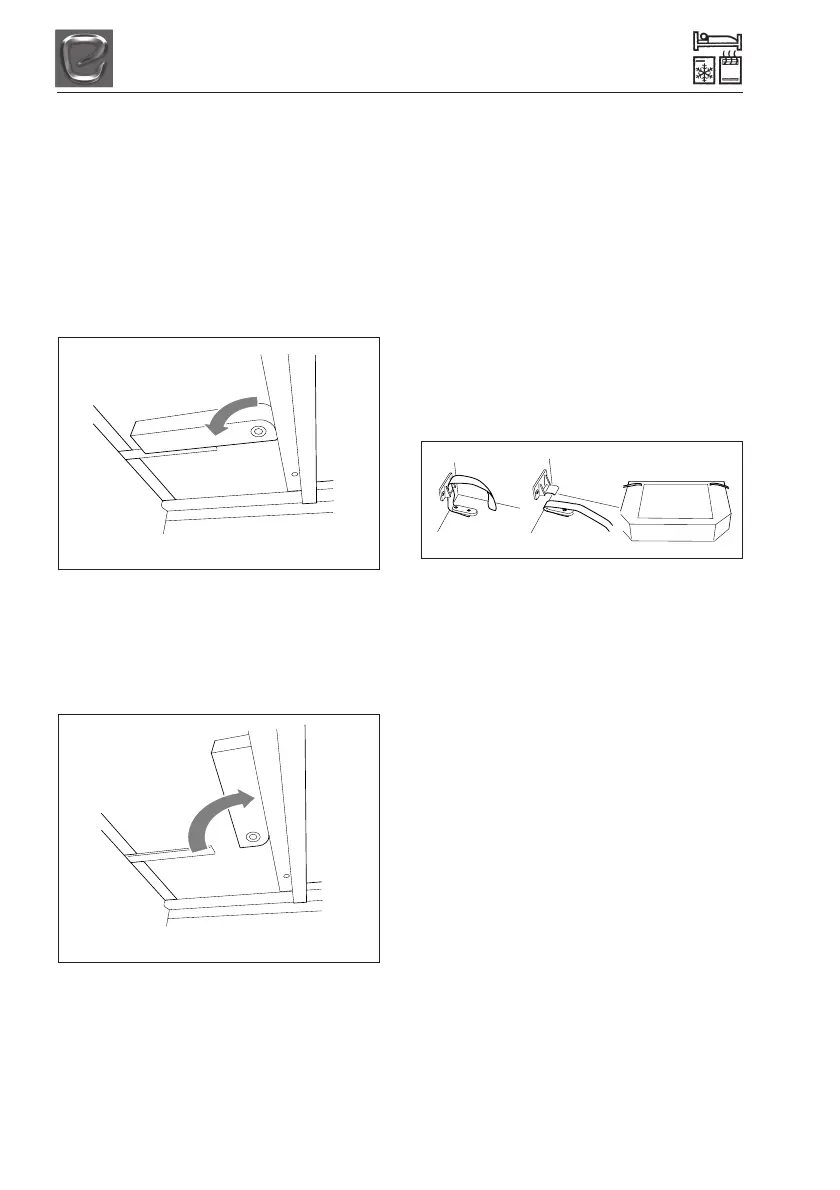

Pull the slats forward then turn the locking plate
to be in the direction down the caravan (see fig
1) in order to secure the front seat in place.
This will prevent the slats from going back into
the front seat and increase the seated area.
Please ensure you return the locking plate to its
normal position (see fig 2) if you wish to remove
the wrap round seating.
Fig 1
Fig 2
