PERFORMANCE DATA & PRESSURE CURVES
SM ALPHA 1-E.3 GB
5.8 Alpha9 DF / ONG3-9 RC R410A B2
5.8.1 Cooling

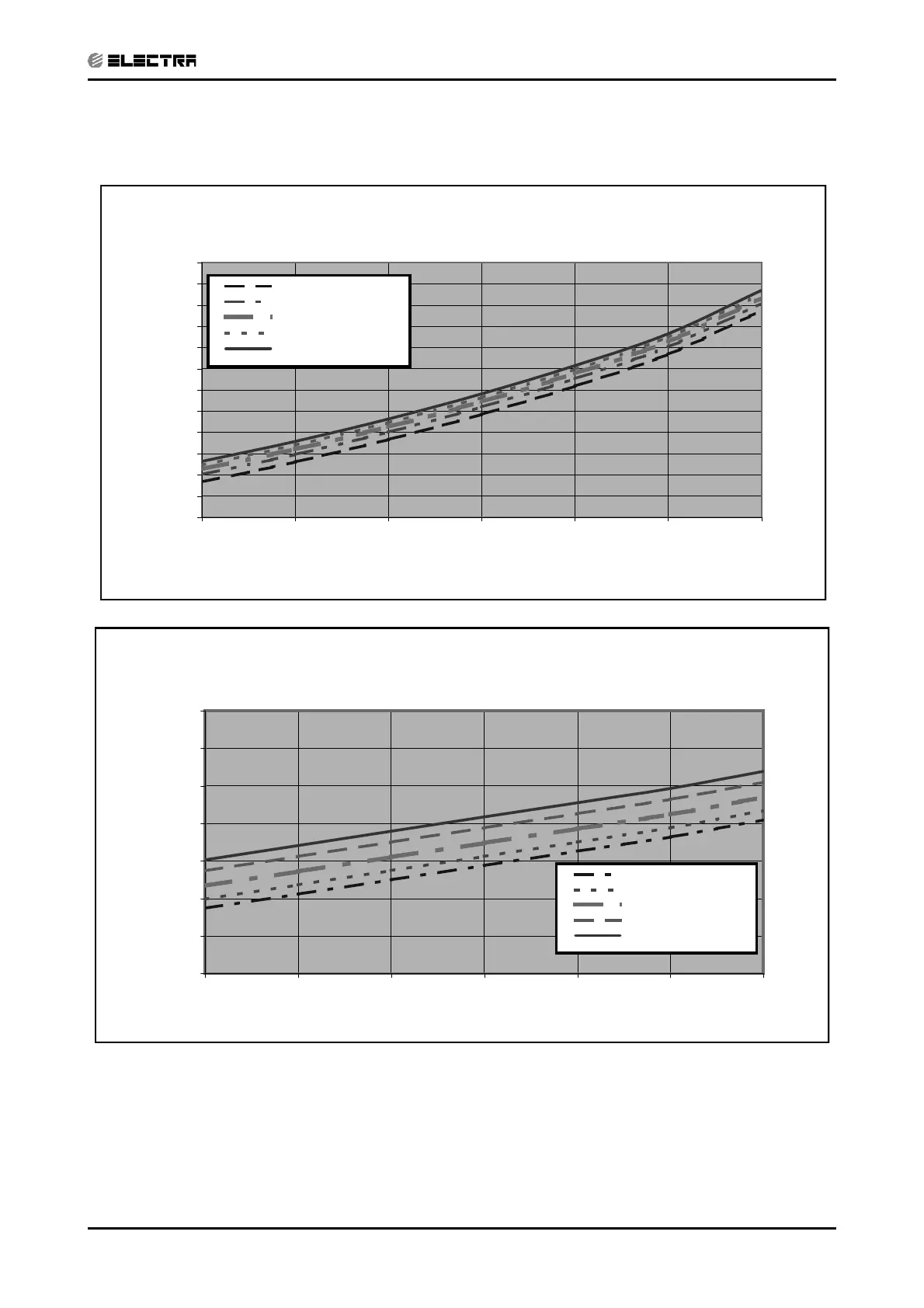

Discharge Pressure VS.Outdoor Temp
12
14
16
18
20
22
24
26
28
30
32
34
36
15 20 25 30 35 40 46
Outdoor Temp.(DB
o
C )
Discharge Pressure (Bar[g])
15/21(WB/DB ºC)
17/24(WB/DB ºC)
19/27(WB/DB ºC)
21/29(WB/DB ºC)
23/32(WB/DB ºC)
Suction Pressure VS.Outdoor Temp
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
15 20 25 30 35 40 46
Outdoor Temp.(DB
o
C )
Suction Pressure (Bar[g])
15/21(WB/DB ºC)
17/24(WB/DB ºC)
19/27(WB/DB ºC)
21/29(WB/DB ºC)
23/32(WB/DB ºC)
