14-11
SERVICING
SM OU12HP 2-E.2 GB

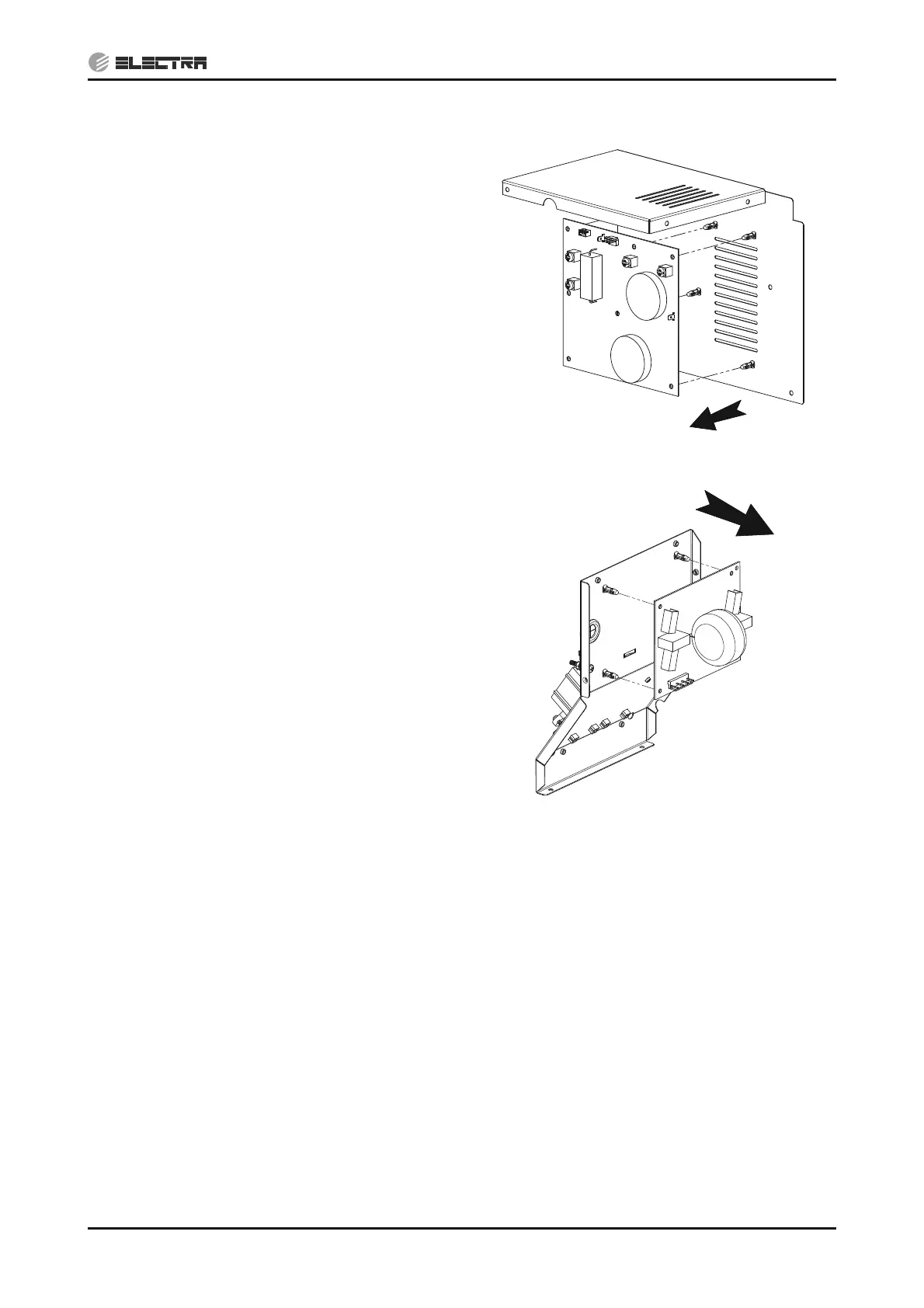

14.1.19 Removing Line Filter board
14.1.19.1 4-5HP
1. Perform the driver module removal procedure
in 14.1.15 from 1 to 4 and #6 but first release
N and L wires from the line filter.
2. Squeeze the 7 spacers head with Long-Nose
Pliers and pull out the board.
Removing Line Filter board
14.1.19.2 6HP
1. Perform the driver module removal procedure
in 14.1.15 from 1 to 4.
2. Release all wires from the line filter.
3. Squeeze the 4 spacers head with Long-Nose
Pliers and pull out the board.
Removing Line Filter board
