ELECTRICAL CONNECTIONSELECTRICAL CONNECTIONS
ELECTRICAL CONNECTIONSELECTRICAL CONNECTIONS
ELECTRICAL CONNECTIONS
INDOORS UNITS:
Do not take account of the electrical connections instructions contained in the indoors units
Installation Instructions.
OUTDOORS UNIT:

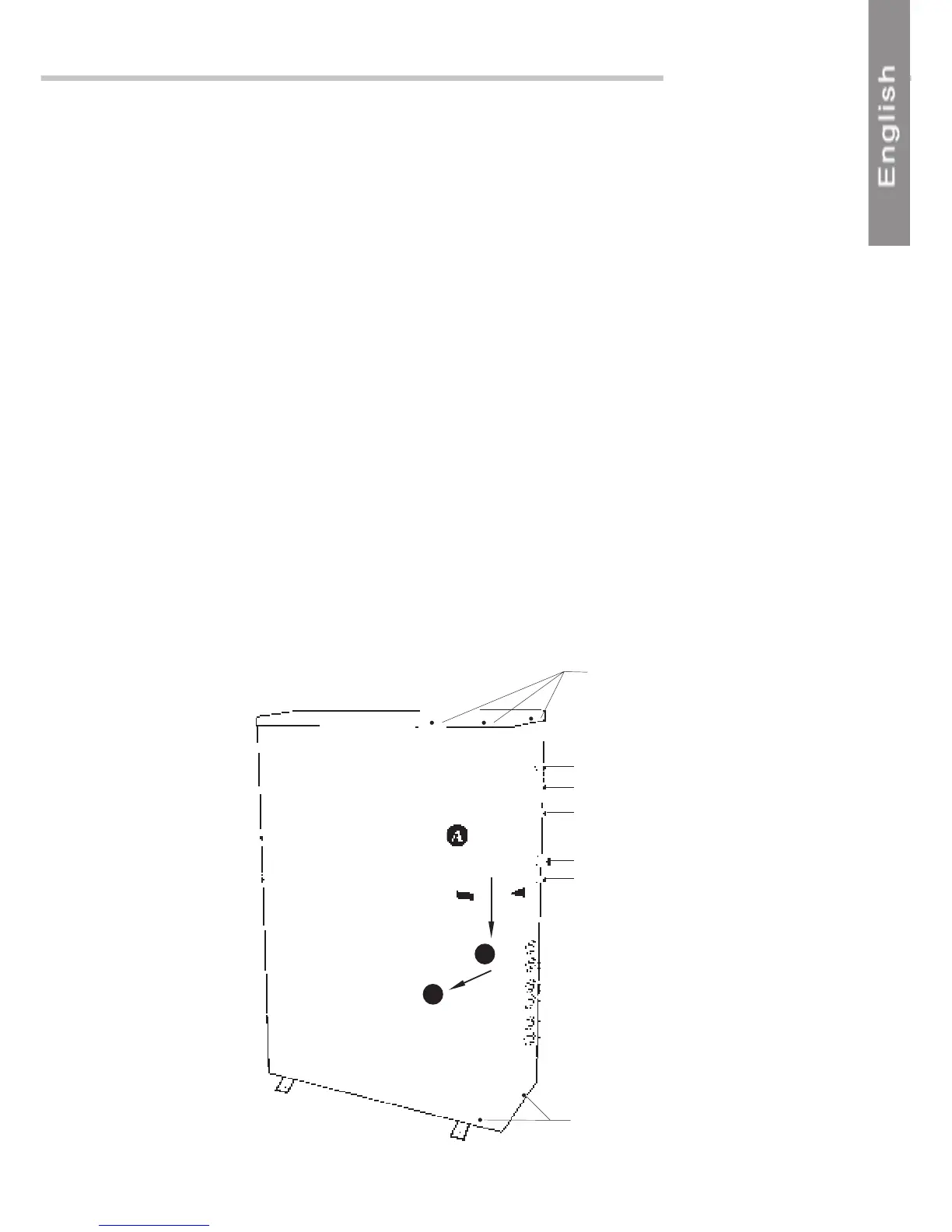

On the WMT 090914 RC, remove the front panel (Fig. below. Ref.
AA
AA
A - 5 screws).
Connection to the mains power supply is via the WMT 090914 RC unit.
Mains cable not supplied. (Refer to electrical specifications).
- Pass the cable into the stuffing box (fitted to the unit).
- Block the stuffing box in position.
- Connect this cable to the X terminal block X (Refer to the schematic diagram)
Connecting cable to the indoors units from the WMT 090914 RC not supplied. (Refer to
electrical specifications).
- Pass the cables into the corresponding stuffing boxes (fitted to the unit).
- Block the stuffing boxes in position.
- Connect the cable to the corresponding terminal blocks: U1A - U2B - U3B.
