INSTALLATION
WARNING: Before using this unit, please keep it upright for at least 3-4 hours.
This unit can easily be moved from one room to another. While moving the unit please note that it must
always be kept upright and then placed on an even surface.

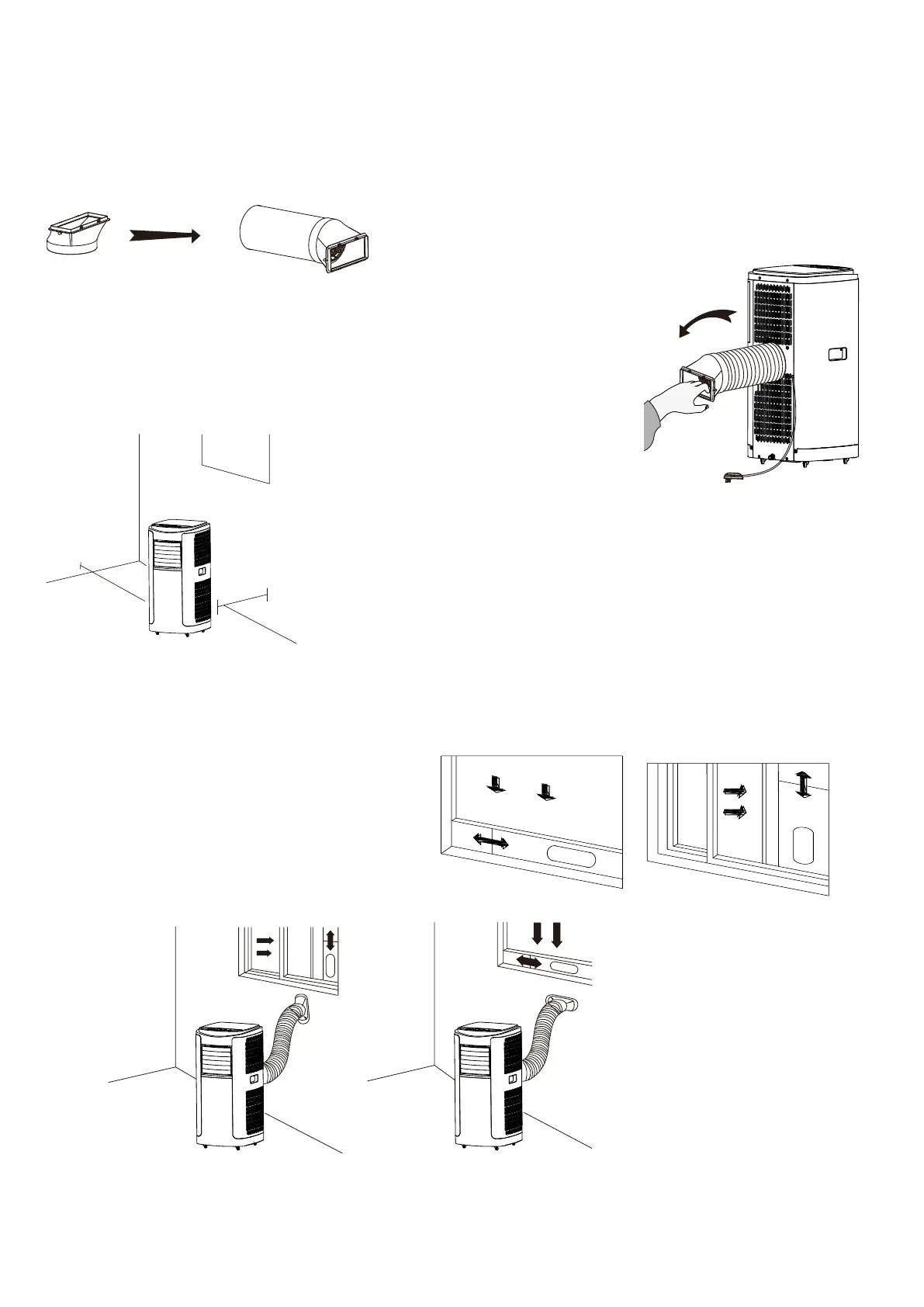

1. Attach the fishtail connector to the end of the hose, by
extending the end and twisting until firmly attached (At least
3 full rotations).
2. Attach the connector on the opposite end of the pipe to the exhaust
outlet on the rear of the appliance by putting into position and twisting
to lock in place.
3. Make sure the unit is upright and there are no obstructions to the air
inlets and outlet grills.
INSTALLATION OF WINDOW KIT
The window kit (slide bar and fishtail) can be used with sliding windows and doors. For other types of window, the
fishtail should be used on its own.
1. Partially open the window and place the
extended slide bar in position before closing
the window onto it.
2.
Fix the fishtail adaptor into the
opening on the slide bar
3.
Fix the exhaust connector on
the opposite end of the exhaust
hose to the exhaust outlet on
the rear of the air conditioner.
