ELECTRO FREEZE Model FM8
Use only original or authorized replacement parts with this freezer.
184979-04 8/05 19
PART PART SERIAL NUMBER
DESCRIPTION NUMBER QTY (FROM – TO)
Important: All parts shown are for standard models designed for 230V/1PH/
60HZ.

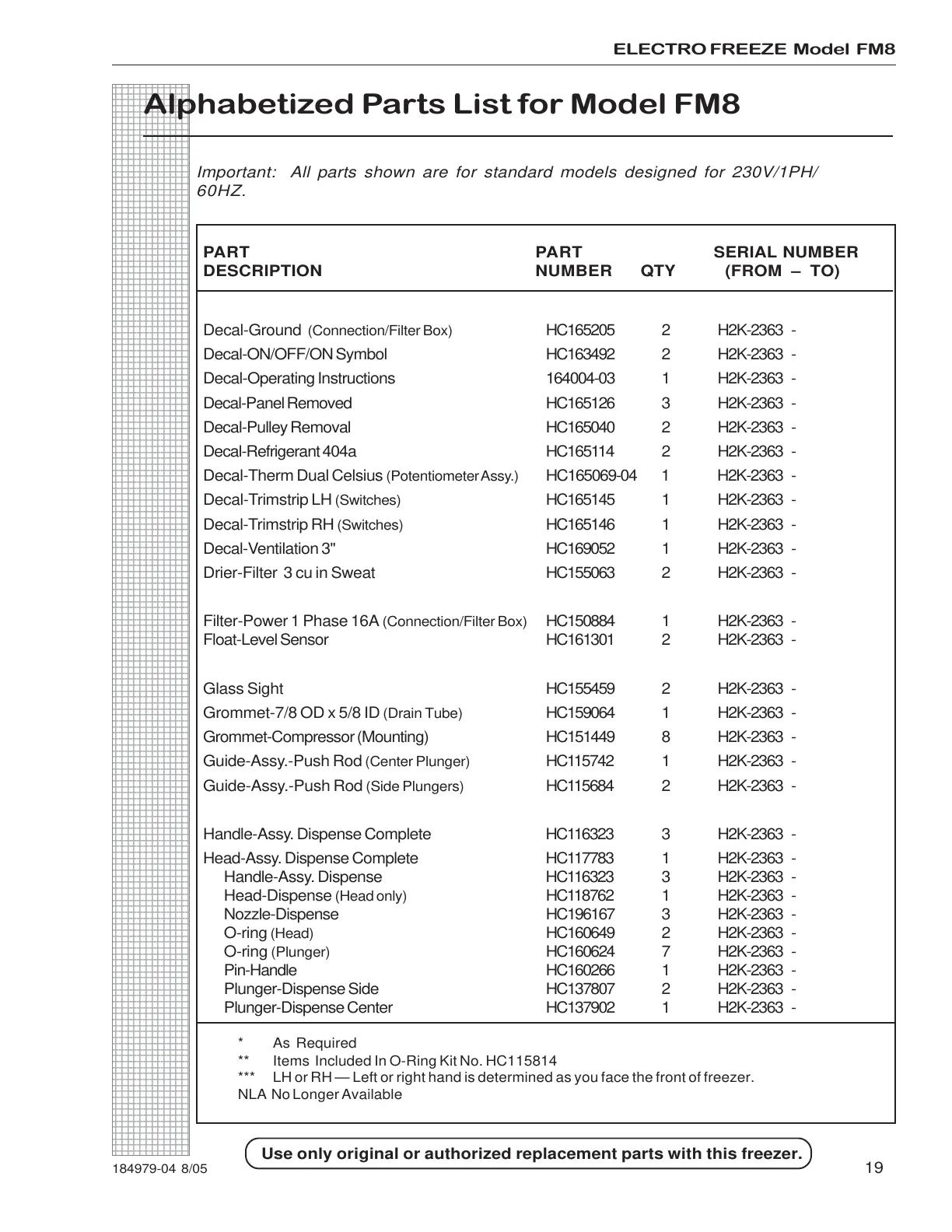

Alphabetized Parts List for Model FM8
* As Required
** Items Included In O-Ring Kit No. HC115814
*** LH or RH — Left or right hand is determined as you face the front of freezer.
NLA No Longer Available
Decal-Ground (Connection/Filter Box) HC165205 2 H2K-2363 -
Decal-ON/OFF/ON Symbol HC163492 2 H2K-2363 -
Decal-Operating Instructions 164004-03 1 H2K-2363 -
Decal-Panel Removed HC165126 3 H2K-2363 -
Decal-Pulley Removal HC165040 2 H2K-2363 -
Decal-Refrigerant 404a HC165114 2 H2K-2363 -
Decal-Therm Dual Celsius
(Potentiometer Assy.) HC165069-04 1 H2K-2363 -
Decal-Trimstrip LH (Switches) HC165145 1 H2K-2363 -
Decal-Trimstrip RH (Switches) HC165146 1 H2K-2363 -
Decal-Ventilation 3" HC169052 1 H2K-2363 -
Drier-Filter 3 cu in Sweat HC155063 2 H2K-2363 -
Filter-Power 1 Phase 16A (Connection/Filter Box) HC150884 1 H2K-2363 -
Float-Level Sensor HC161301 2 H2K-2363 -
Glass Sight HC155459 2 H2K-2363 -
Grommet-7/8 OD x 5/8 ID (Drain Tube) HC159064 1 H2K-2363 -
Grommet-Compressor (Mounting) HC151449 8 H2K-2363 -
Guide-Assy.-Push Rod (Center Plunger) HC115742 1 H2K-2363 -
Guide-Assy.-Push Rod (Side Plungers) HC115684 2 H2K-2363 -
Handle-Assy. Dispense Complete HC116323 3 H2K-2363 -
Head-Assy. Dispense Complete HC117783 1 H2K-2363 -
Handle-Assy. Dispense HC116323 3 H2K-2363 -
Head-Dispense (Head only) HC118762 1 H2K-2363 -
Nozzle-Dispense HC196167 3 H2K-2363 -
O-ring (Head) HC160649 2 H2K-2363 -
O-ring (Plunger) HC160624 7 H2K-2363 -
Pin-Handle HC160266 1 H2K-2363 -
Plunger-Dispense Side HC137807 2 H2K-2363 -
Plunger-Dispense Center HC137902 1 H2K-2363 -
