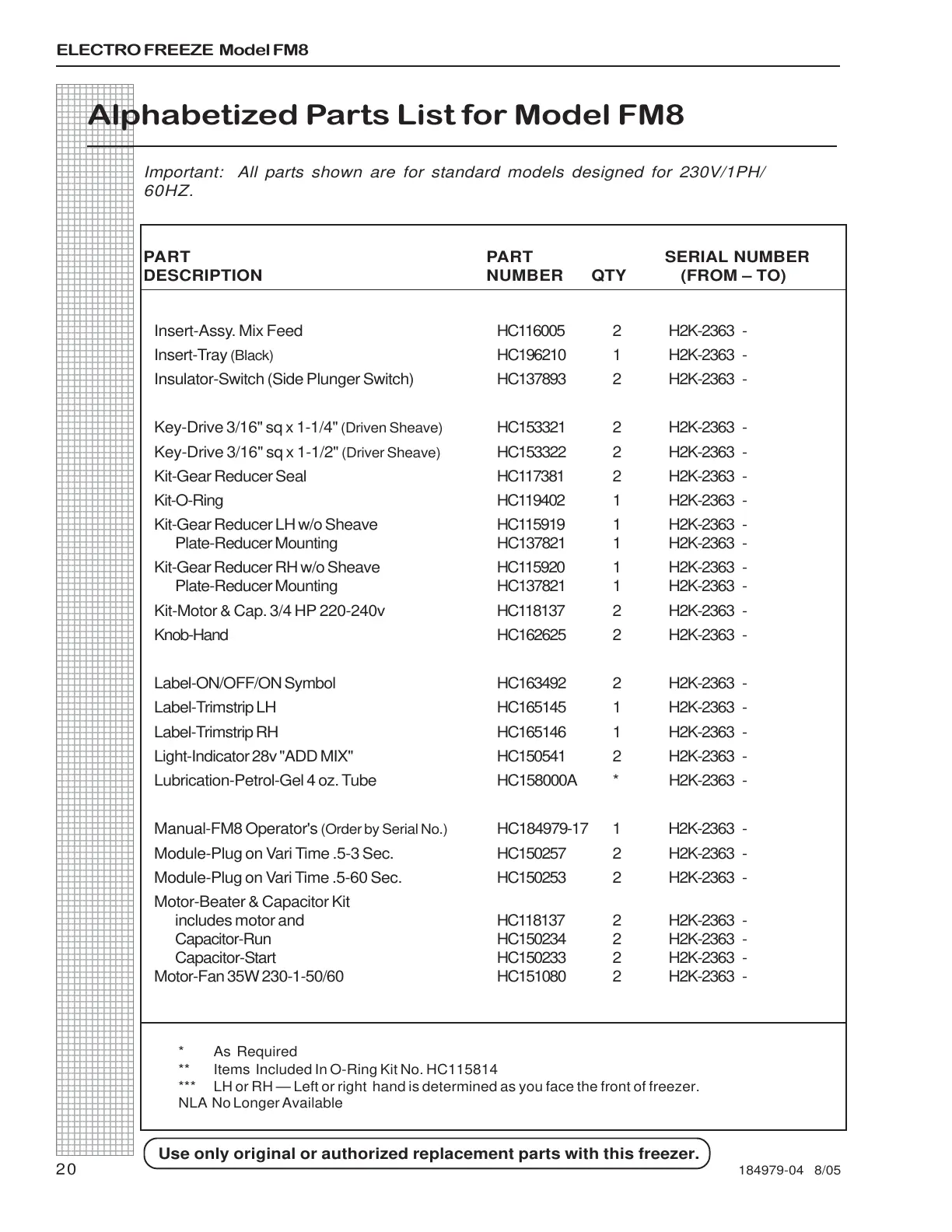

ELECTRO FREEZE Model FM8

Use only original or authorized replacement parts with this freezer.

20 184979-04 8/05

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Important: All parts shown are for standard models designed for 230V/1PH/

60HZ.

Alphabetized Parts List for Model FM8

* As Required

** Items Included In O-Ring Kit No. HC115814

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA No Longer Available

Insert-Assy. Mix Feed HC116005 2 H2K-2363 -

Insert-Tray

(Black)

HC196210 1 H2K-2363 -

Insulator-Switch (Side Plunger Switch) HC137893 2 H2K-2363 -

Key-Drive 3/16" sq x 1-1/4"

(Driven Sheave)

HC153321 2 H2K-2363 -

Key-Drive 3/16" sq x 1-1/2"

(Driver Sheave)

HC153322 2 H2K-2363 -

Kit-Gear Reducer Seal HC117381 2 H2K-2363 -

Kit-O-Ring HC119402 1 H2K-2363 -

Kit-Gear Reducer LH w/o Sheave HC115919 1 H2K-2363 -

Plate-Reducer Mounting HC137821 1 H2K-2363 -

Kit-Gear Reducer RH w/o Sheave HC115920 1 H2K-2363 -

Plate-Reducer Mounting HC137821 1 H2K-2363 -

Kit-Motor & Cap. 3/4 HP 220-240v HC118137 2 H2K-2363 -

Knob-Hand HC162625 2 H2K-2363 -

Label-ON/OFF/ON Symbol HC163492 2 H2K-2363 -

Label-Trimstrip LH HC165145 1 H2K-2363 -

Label-Trimstrip RH HC165146 1 H2K-2363 -

Light-Indicator 28v "ADD MIX" HC150541 2 H2K-2363 -

Lubrication-Petrol-Gel 4 oz. Tube HC158000A * H2K-2363 -

Manual-FM8 Operator's

(Order by Serial No.)

HC184979-17 1 H2K-2363 -

Module-Plug on Vari Time .5-3 Sec. HC150257 2 H2K-2363 -

Module-Plug on Vari Time .5-60 Sec. HC150253 2 H2K-2363 -

Motor-Beater & Capacitor Kit

includes motor and HC118137 2 H2K-2363 -

Capacitor-Run HC150234 2 H2K-2363 -

Capacitor-Start HC150233 2 H2K-2363 -

Motor-Fan 35W 230-1-50/60 HC151080 2 H2K-2363 -
