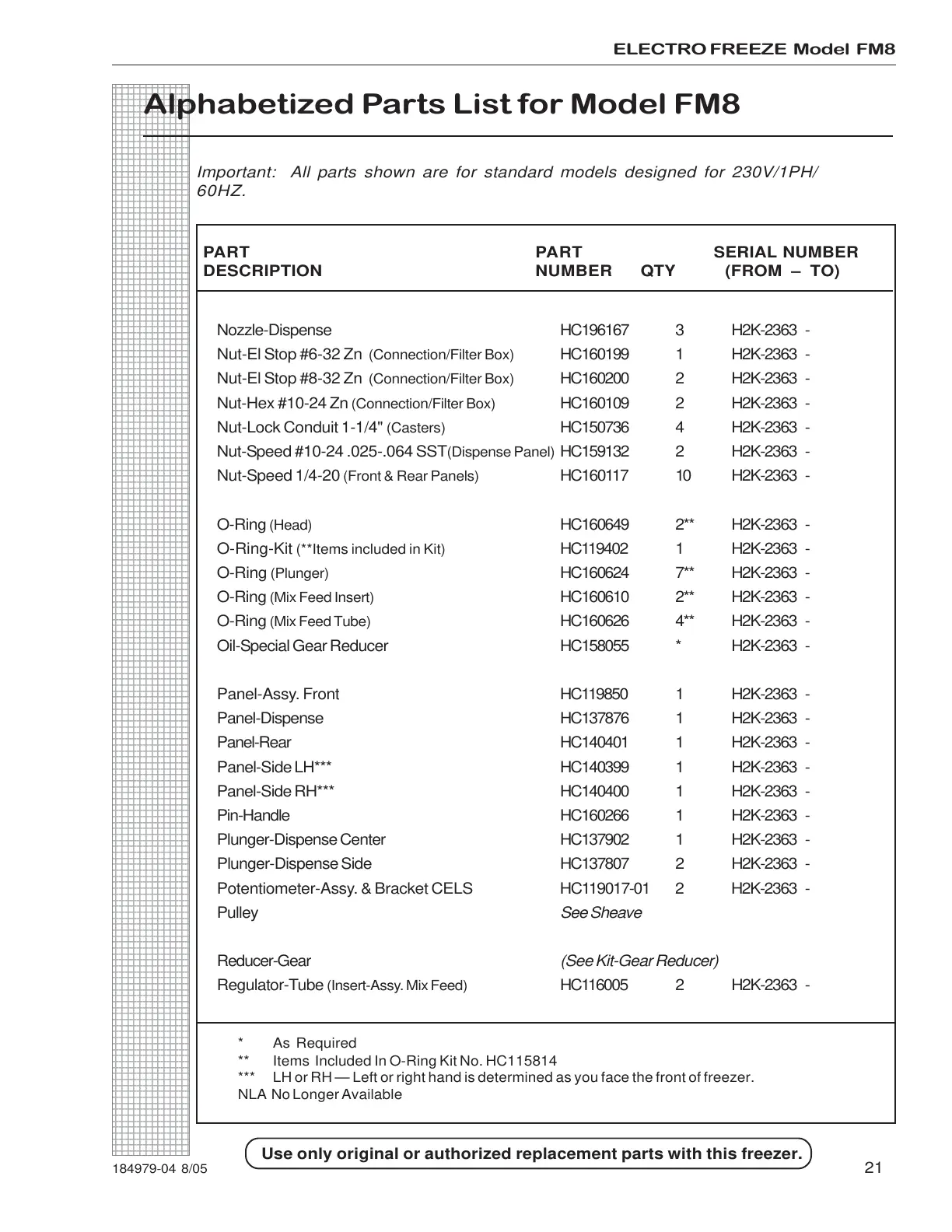

ELECTRO FREEZE Model FM8

Use only original or authorized replacement parts with this freezer.

184979-04 8/05 21

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Important: All parts shown are for standard models designed for 230V/1PH/

60HZ.

Alphabetized Parts List for Model FM8

* As Required

** Items Included In O-Ring Kit No. HC115814

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA No Longer Available

Nozzle-Dispense HC196167 3 H2K-2363 -

Nut-El Stop #6-32 Zn

(Connection/Filter Box)

HC160199 1 H2K-2363 -

Nut-El Stop #8-32 Zn

(Connection/Filter Box)

HC160200 2 H2K-2363 -

Nut-Hex #10-24 Zn

(Connection/Filter Box)

HC160109 2 H2K-2363 -

Nut-Lock Conduit 1-1/4"

(Casters)

HC150736 4 H2K-2363 -

Nut-Speed #10-24 .025-.064 SST

(Dispense Panel)

HC159132 2 H2K-2363 -

Nut-Speed 1/4-20

(Front & Rear Panels)

HC160117 10 H2K-2363 -

O-Ring

(Head)

HC160649 2** H2K-2363 -

O-Ring-Kit

(**Items included in Kit)

HC119402 1 H2K-2363 -

O-Ring

(Plunger)

HC160624 7** H2K-2363 -

O-Ring

(Mix Feed Insert)

HC160610 2** H2K-2363 -

O-Ring

(Mix Feed Tube)

HC160626 4** H2K-2363 -

Oil-Special Gear Reducer HC158055 * H2K-2363 -

Panel-Assy. Front HC119850 1 H2K-2363 -

Panel-Dispense HC137876 1 H2K-2363 -

Panel-Rear HC140401 1 H2K-2363 -

Panel-Side LH*** HC140399 1 H2K-2363 -

Panel-Side RH*** HC140400 1 H2K-2363 -

Pin-Handle HC160266 1 H2K-2363 -

Plunger-Dispense Center HC137902 1 H2K-2363 -

Plunger-Dispense Side HC137807 2 H2K-2363 -

Potentiometer-Assy. & Bracket CELS HC119017-01 2 H2K-2363 -

Pulley See Sheave

Reducer-Gear (See Kit-Gear Reducer)

Regulator-Tube

(Insert-Assy. Mix Feed)

HC116005 2 H2K-2363 -
