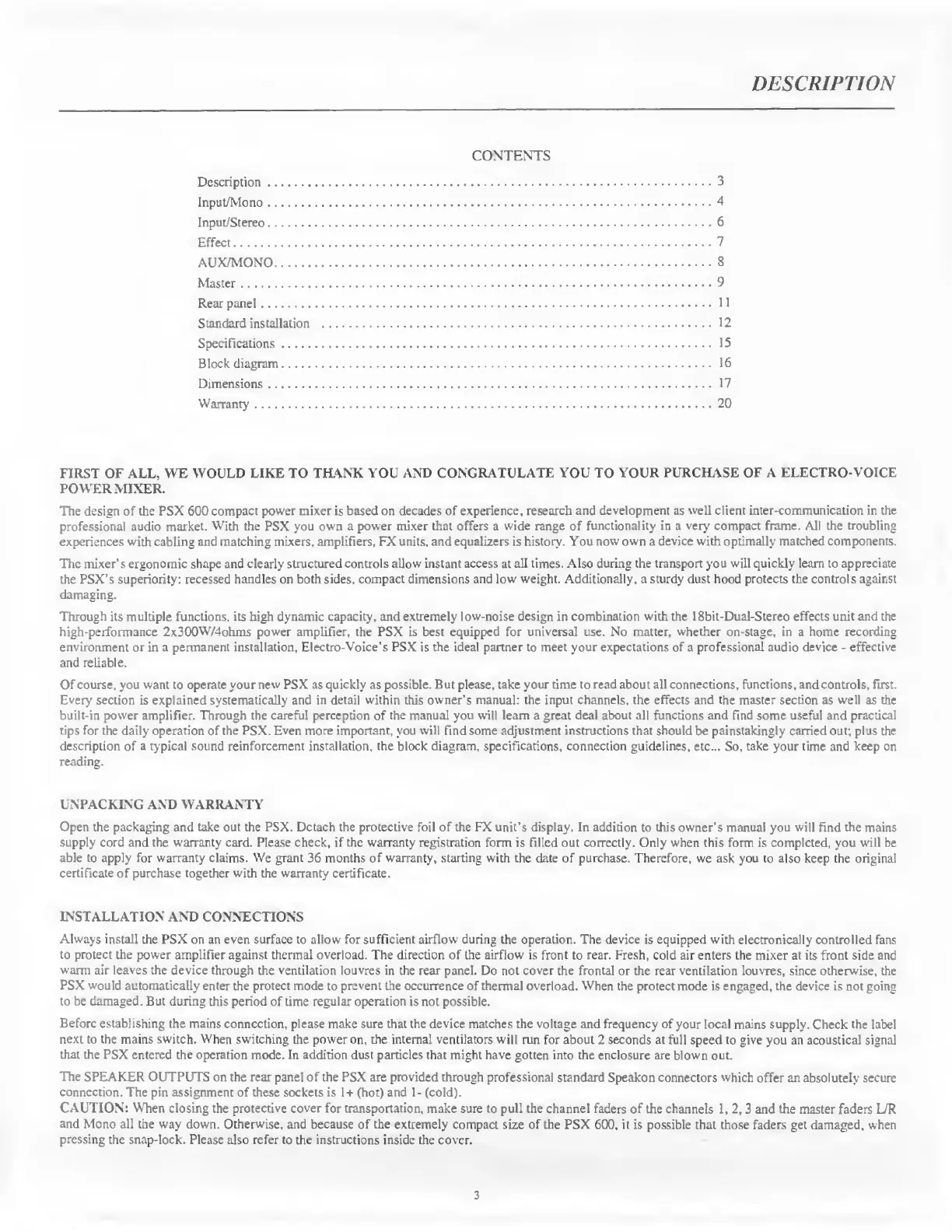

DESCRIPTION
CONTENTS
Description...3
Input/Mono.4
Input/Stereo...6
Effect.7
AUX/MONO.8
Master
....9
Rear
panel.11
Standard
installation
.12
Specifications.15
Block
diagram.16
Dimensions.17
Warranty.20
FIRST
OF
ALL,
WE
WOULD
LIKE
TO
THANK
YOU
AND
CONGRATULATE
YOU
TO
YOUR
PURCHASE
OF
A
ELECTRO-VOICE
POWER
MIXER.
The
design
of
the
PSX
600
compact
power
mixer
is
based
on
decades
of
experience,
research
and
development
as
well
client
inter-communication
in
the
professional
audio
market.
With
the
PSX
you
own
a
power
mixer
that
offers
a
wide
range
of
functionality
in
a
very
compact
frame.
All
the
troubling
experiences
with
cabling
and
matching
mixers,
amplifiers,
FX
units,
and
equalizers
is
history.
You
now
own
a
device
with
optimally
matched
components.
The
mixer’s
ergonomic
shape
and
clearly
structured
controls
allow
instant
access
at
all
times.
Also
during
the
transport
you
will
quickly
learn
to
appreciate
the
PSX’s
superiority:
recessed
handles
on
both
sides,
compact
dimensions
and
low
weight.
Additionally,
a
sturdy
dust
hood
protects
the
controls
against
damaging.
Through
its
multiple
functions,
its
high
dynamic
capacity,
and
extremely
low-noise
design
in
combination
with
the
18bit-Dual-Stereo
effects
unit
and
the
high-performance
2x300W/4ohms
power
amplifier,
the
PSX
is
best
equipped
for
universal
use.
No
matter,
whether
on-stage,
in
a
home
recording
environment
or
in
a
permanent
installation,
Electro-Voice’s
PSX
is
the
ideal
partner
to
meet
your
expectations
of
a
professional
audio
device
-
effective
and
reliable.
Of
course,
you
want
to
operate
your
new
PSX
as
quickly
as
possible.
But
please,
take
your
time
to
read
about
all
connections,
functions,
and
controls,
first.
Every
section
is
explained
systematically
and
in
detail
within
this
owner's
manual:
the
input
channels,
the
effects
and
the
master
section
as
well
as
the
built-in
power
amplifier.
Through
the
careful
perception
of
the
manual
you
will
learn
a
great
deal
about
all
functions
and
find
some
useful
and
practical
tips
for
the
daily
operation
of
the
PSX.
Even
more
important,
you
will
find
some
adjustment
instructions
that
should
be
painstakingly
carried
out;
plus
the
description
of
a
typical
sound
reinforcement
installation,
the
block
diagram,
specifications,
connection
guidelines,
etc...
So,
take
your
time
and
keep
on
reading.
UNPACKING
AND
WARRANTY
Open
the
packaging
and
take
out
the
PSX.
Detach
the
protective
foil
of
the
FX
unit’s
display.
In
addition
to
this
owner’s
manual
you
will
find
the
mains
supply
cord
and
the
warranty
card.
Please
check,
if
the
warranty
registration
form
is
filled
out
correctly.
Only
when
this
form
is
completed,
you
will
be
able
to
apply
for
warranty
claims.
We
grant
36
months
of
warranty,
starting
with
the
date
of
purchase.
Therefore,
we
ask
you
to
also
keep
the
original
certificate
of
purchase
together
with
the
warranty
certificate.
INSTALLATION
AND
CONNECTIONS
Always
install
the
PSX
on
an
even
surface
to
allow
for
sufficient
airflow
during
the
operation.
The
device
is
equipped
with
electronically
controlled
fans
to
protect
the
power
amplifier
against
thermal
overload.
The
direction
of
the
airflow
is
front
to
rear.
Fresh,
cold
air
enters
the
mixer
at
its
front
side
and
warm
air
leaves
the
device
through
the
ventilation
louvres
in
the
rear
panel.
Do
not
cover
the
frontal
or
the
rear
ventilation
louvres,
since
otherwise,
the
PSX
would
automatically
enter
the
protect
mode
to
prevent
the
occurrence
of
thermal
overload.
When
the
protect
mode
is
engaged,
the
device
is
not
going
to
be
damaged.
But
during
this
penod
of
time
regular
operation
is
not
possible.
Before
establishing
the
mains
connection,
please
make
sure
that
the
device
matches
the
voltage
and
frequency
of
your
local
mains
supply.
Check
the
label
next
to
the
mains
switch.
When
switching
the
power
on,
the
internal
ventilators
will
run
for
about
2
seconds
at
full
speed
to
give
you
an
acoustical
signal
that
the
PSX
entered
the
operation
mode.
In
addition
dust
particles
that
might
have
gotten
into
the
enclosure
are
blown
out
The
SPEAKER
OUTPUTS
on
the
rear
panel
of
the
PSX
are
provided
through
professional
standard
Speakon
connectors
which
offer
an
absolutely
secure
connection.
The
pin
assignment
of
these
sockets
is
1+
(hot)
and
1-
(cold).
CAUTION:
When
closing
the
protective
cover
for
transportation,
make
sure
to
pull
the
channel
faders
of
the
channels
1,
2,3
and
the
master
faders
L/R
and
Mono
all
the
way
down.
Otherwise,
and
because
of
the
extremely
compact
size
of
the
PSX
600,
it
is
possible
that
those
faders
get
damaged,
when
pressing
the
snap-lock.
Please
also
refer
to
the
instructions
inside
the
cover.
3
