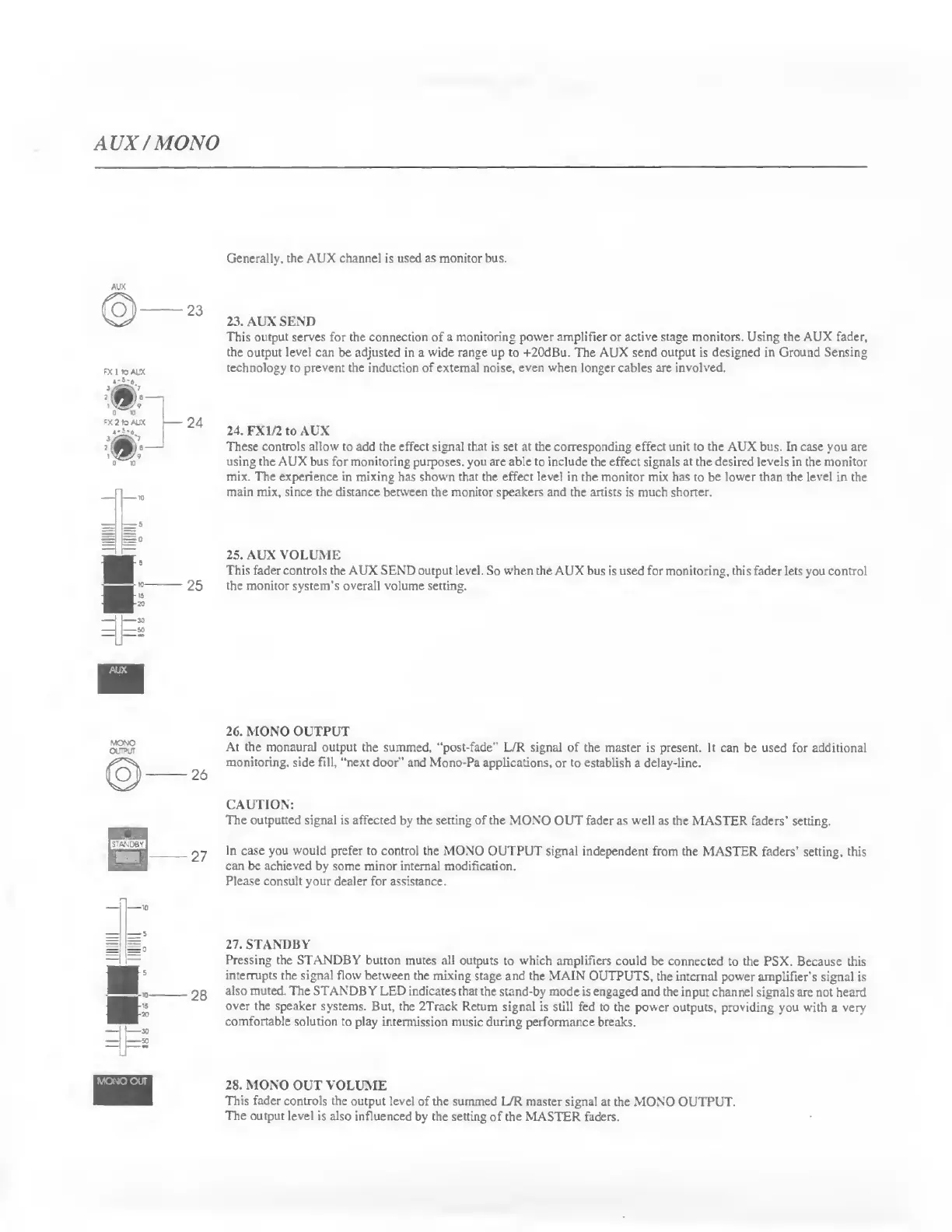

AUX/MONO
Generally,
the
AUX
channel
is
used
as
monitor
bus.
AUX
PX
I
<0
AUX
23.
AUX
SEND
This
output
serves
for
the
connection
of
a
monitoring
power
amplifier
or
active
stage
monitors.
Using
the
AUX
fader,
the
output
level
can
be
adjusted
in
a
wide
range
up
to
+20dBu.
The
AUX
send
output
is
designed
in
Ground
Sensing
technology
to
prevent
the
induction
of
external
noise,
even
when
longer
cables
are
involved.
24.
FX1/2
to
AUX
These
controls
allow
to
add
the
effect
signal
that
is
set
at
the
corresponding
effect
unit
to
the
AUX
bus.
In
case
you
are
using
the
AUX
bus
for
monitoring
purposes,
you
are
able
to
include
the
effect
signals
at
the
desired
levels
in
the
monitor
mix.
The
experience
in
mixing
has
shown
that
the
effect
level
in
the
monitor
mix
has
to
be
lower
than
the
level
in
the
main
mix,
since
the
distance
between
the
monitor
speakers
and
the
artists
is
much
shorter.
25.
AUX
VOLUME
This
fader
controls
the
AUX
SEND
output
level.
So
when
the
AUX
bus
is
used
for
monitoring,
this
fader
lets
you
control
the
monitor
system’s
overall
volume
setting.
AUX
MONO
cxmjT
26.
MONO
OUTPUT
At
the
monaural
output
the
summed,
“post-fade”
L/R
signal
of
the
master
is
present.
It
can
be
used
for
additional
monitoring,
side
fill,
“next
door"
and
Mono-Pa
applications,
or
to
establish
a
delay-line.
CAUTION:
The
outputted
signal
is
affected
by
the
setting
of
the
MONO
OUT
fader
as
well
as
the
MASTER
faders'
setting.
In
case
you
would
prefer
to
control
the
MONO
OUTPUT
signal
independent
from
the
MASTER
faders'
setting,
this
can
be
achieved
by
some
minor
internal
modification.
Please
consult
your
dealer
for
assistance.
27.
STANDBY
Pressing
the
STANDBY
button
mutes
all
outputs
to
which
amplifiers
could
be
connected
to
the
PSX.
Because
this
interrupts
the
signal
flow
between
the
mixing
stage
and
the
MAIN
OUTPUTS,
the
internal
power
amplifier’s
signal
is
also
muted.
The
STANDBY
LED
indicates
that
the
stand-by
mode
is
engaged
and
the
input
channel
signals
are
not
heard
over
the
speaker
systems.
But,
the
2Track
Return
signal
is
still
fed
to
the
power
outputs,
providing
you
with
a
very
comfortable
solution
to
play
intermission
music
during
performance
breaks.
MONO
OUT
28.
MONO
OUT
VOLUME
This
fader
controls
the
output
level
of
the
summed
L/R
master
signal
at
the
MONO
OUTPUT.
The
output
level
is
also
influenced
by
the
setting
of
the
MASTER
faders.
